1.创建Windows窗体控件库
这里的项目项目名称为: TestActiveX

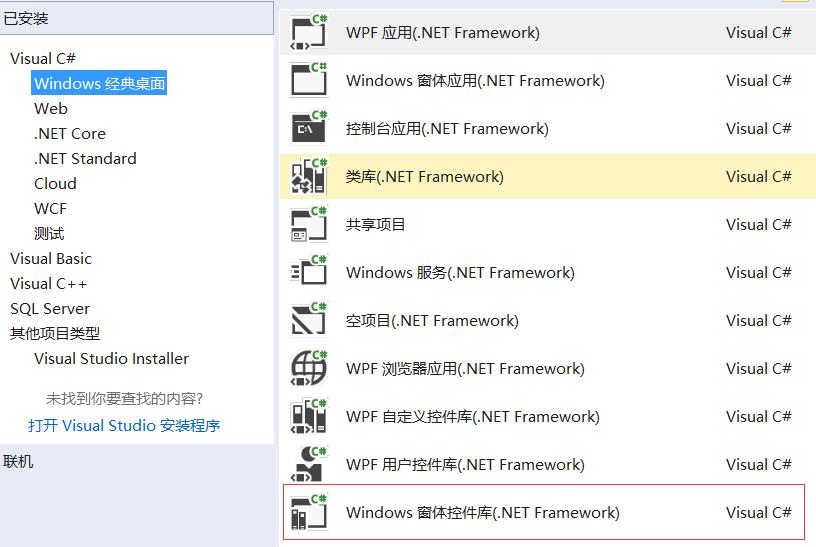

创建Windows窗体控件库

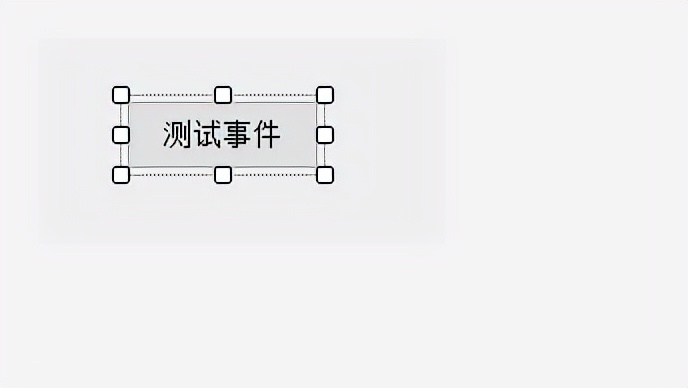

在默认的用户控件上,放置一个button,并创建单击事件
在用户控件放置button并创建单击事件
3.创建IObjectSafety接口(重点)
ComImport, GuidAttribute("CB5BDC81-93C1-11CF-8F20-00805F2CD064")]
[InterfaceTypeAttribute(ComInterfaceType.InterfaceIsIUnknown)]
public interface IObjectSafety
{
[PreserveSig]
int GetInterfaceSafetyOptions(ref Guid riid, [MarshalAs(UnmanagedType.U4)] ref int pdwSupportedOptions, [MarshalAs(UnmanagedType.U4)] ref int pdwEnabledOptions);
[PreserveSig()]
int SetInterfaceSafetyOptions(ref Guid riid, [MarshalAs(UnmanagedType.U4)] int dwOptionSetMask, [MarshalAs(UnmanagedType.U4)] int dwEnabledOptions);
}
4.将下面的代码,粘贴在控件类中
#region IObjectSafety 接口成员实现（直接拷贝即可）
private const string _IID_IDispatch = "{00020400-0000-0000-C000-000000000046}";
private const string _IID_IDispatchEx = "{a6ef9860-c720-11d0-9337-00a0c90dcaa9}";
private const string _IID_IPersistStorage = "{0000010A-0000-0000-C000-000000000046}";
private const string _IID_IPersistStream = "{00000109-0000-0000-C000-000000000046}";
private const string _IID_IPersistPropertyBag = "{37D84F60-42CB-11CE-8135-00AA004BB851}";
private const int INTERFACESAFE_FOR_UNTRUSTED_CALLER = 0x00000001;
private const int INTERFACESAFE_FOR_UNTRUSTED_DATA = 0x00000002;
private const int S_OK = 0;
private const int E_FAIL = unchecked((int)0x80004005);
private const int E_NOINTERFACE = unchecked((int)0x80004002);
private bool _fSafeForScripting = true;
private bool _fSafeForInitializing = true;
public int GetInterfaceSafetyOptions(ref Guid riid, ref int pdwSupportedOptions, ref int pdwEnabledOptions)
{
int Rslt = E_FAIL;
string strGUID = riid.ToString("B");
pdwSupportedOptions = INTERFACESAFE_FOR_UNTRUSTED_CALLER | INTERFACESAFE_FOR_UNTRUSTED_DATA;
switch (strGUID)
{
case _IID_IDispatch:
case _IID_IDispatchEx:
Rslt = S_OK;
pdwEnabledOptions = 0;
if (_fSafeForScripting == true)
pdwEnabledOptions = INTERFACESAFE_FOR_UNTRUSTED_CALLER;
break;
case _IID_IPersistStorage:
case _IID_IPersistStream:
case _IID_IPersistPropertyBag:
Rslt = S_OK;
pdwEnabledOptions = 0;
if (_fSafeForInitializing == true)
pdwEnabledOptions = INTERFACESAFE_FOR_UNTRUSTED_DATA;
break;
default:
Rslt = E_NOINTERFACE;
break;
}
return Rslt;
}
public int SetInterfaceSafetyOptions(ref Guid riid, int dwOptionSetMask, int dwEnabledOptions)
{
int Rslt = E_FAIL;
string strGUID = riid.ToString("B");
switch (strGUID)
{
case _IID_IDispatch:
case _IID_IDispatchEx:
if (((dwEnabledOptions & dwOptionSetMask) == INTERFACESAFE_FOR_UNTRUSTED_CALLER) && (_fSafeForScripting == true))
Rslt = S_OK;
break;
case _IID_IPersistStorage:
case _IID_IPersistStream:
case _IID_IPersistPropertyBag:
if (((dwEnabledOptions & dwOptionSetMask) == INTERFACESAFE_FOR_UNTRUSTED_DATA) && (_fSafeForInitializing == true))
Rslt = S_OK;
break;
default:
Rslt = E_NOINTERFACE;
break;
}
return Rslt;
}
#endregion
5.在控件类,加上Guid特性,生成一个guid,这个在web页面使用的(切记)
[Guid("4a202141-e8fc-42c8-b061-5d2c5f5cd35d")] //记住这个Guid在页面上使用,要用这个
public partial class UserControl1 : UserControl, IObjectSafety
{
//此处省略若干代码和事件代码
}
6.设置程序集信息和注册com互操作

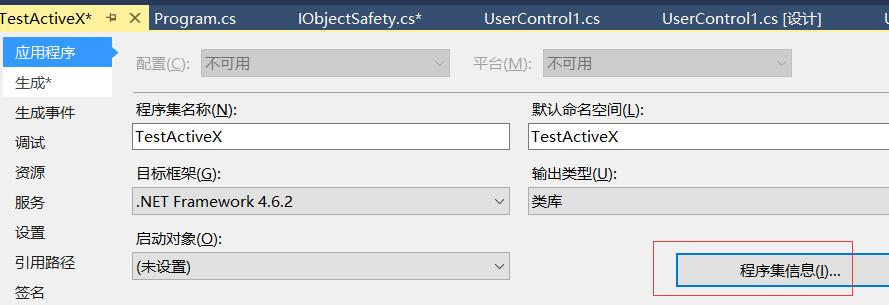

在项目属性,应用程序->程序集信息
设置项目的程序集信息

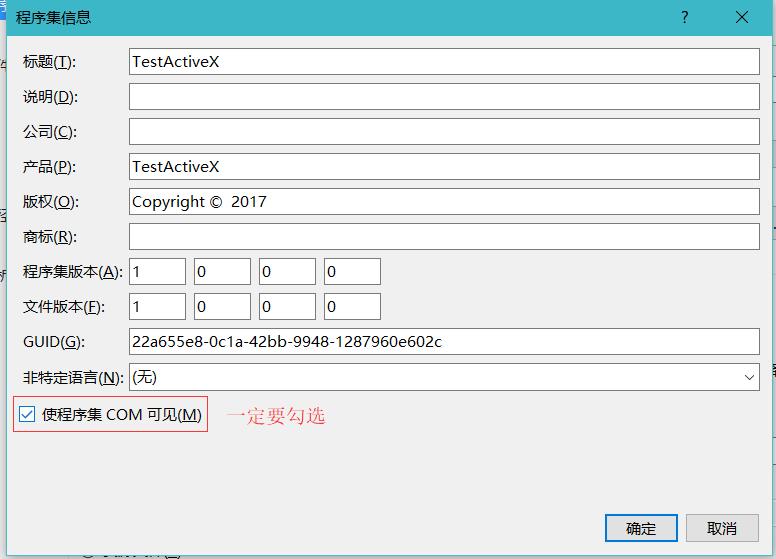

设置 程序集com可见
设置项目的程序集信息

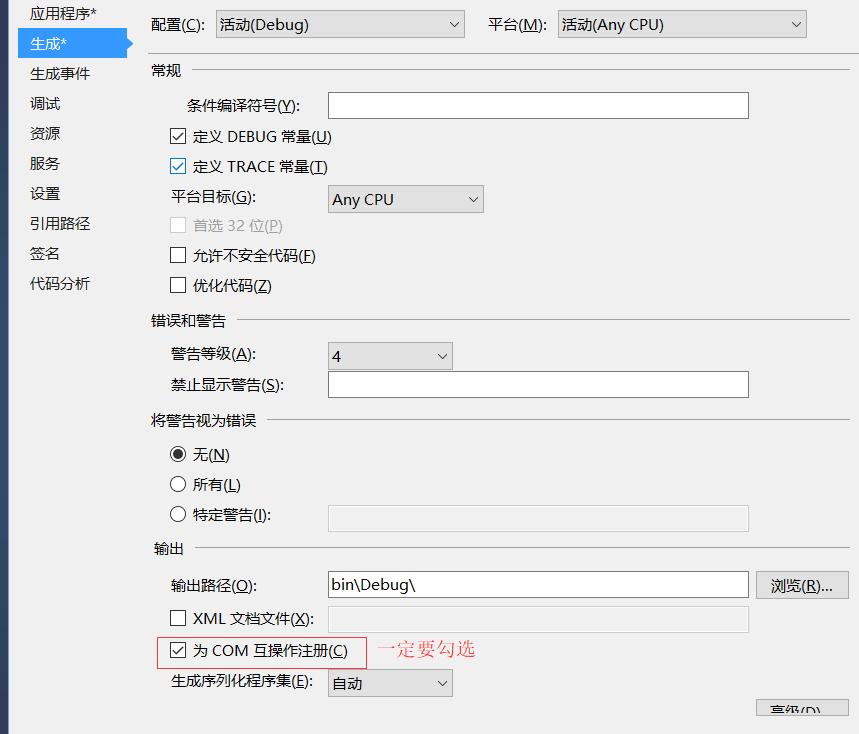

在项目属性,生成-> 为com互操作注册
设置项目的程序集信息
7.在页面使用ActiveX控件
在这之前,需要将Activex控件打包成应用程序,如果是vs2017的话,默认没有打包工具,在vs2017的应用商店中安装,搜索关键字 Installer 即可.
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>测试Activex控件</title>
</head>
<body>
<!--控件id为clsid:后跟我们在控件类使用的guid,一定要一致,是因为要通过这个guid查找注册表,最终定位控件动态库-->
<object id="TestActiveX" classid="clsid:4a202141-e8fc-42c8-b061-5d2c5f5cd35d" width="400" height="100">
</object>
</body>
</html>

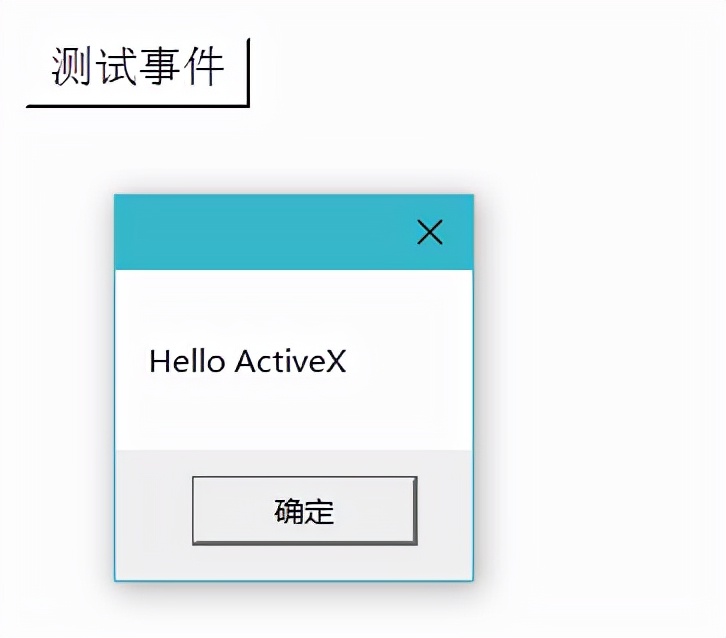

看测试结果:
测试Activex控件是否可用
最重要的一步 在AssemblyInfo.cs文件,添加以下代码
//一定要加的
[assembly: AllowPartiallyTrustedCallers()]
进入真正的主题,因为上面都是准备工作的
1.在控件类,添加该函数
/// <summary>
/// 公开调用,该函数要public去修饰,其他和正常函数一样
/// </summary>
/// <param name="txt">文本参数</param>
/// <returns>返回调用结果</returns>
public string TestActiveXMethod(string txt)
{
return #34;hello {txt}";
}
2.在页面上调用公开的csharp函数
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>测试Activex控件</title>
</head>
<body>
<!--控件id为clsid:后跟我们在控件类使用的guid,一定要一致,是因为要通过这个guid查找注册表,最终定位控件动态库-->
<!--这个时候,已经不需要显示控件了-->
<object id="TestActiveX" classid="clsid:4a202141-e8fc-42c8-b061-5d2c5f5cd35d" width="0" height="0"></object>
<input type="text" id="txtUserName" />
<input type="button" id="btnCallActiveX" value="调用Activex控件中的函数" />
<script>
var btnCallActiveX = document.getElementById('btnCallActiveX');
var txtUserName = document.getElementById('txtUserName');
btnCallActiveX.onclick=function(){
//调用ActiveX控件, 控件id 后跟控件公开的函数
var callResult = TestActiveX.TestActiveXMethod(txtUserName.value);
alert(callResult);
};
</script>
</body>
</html>

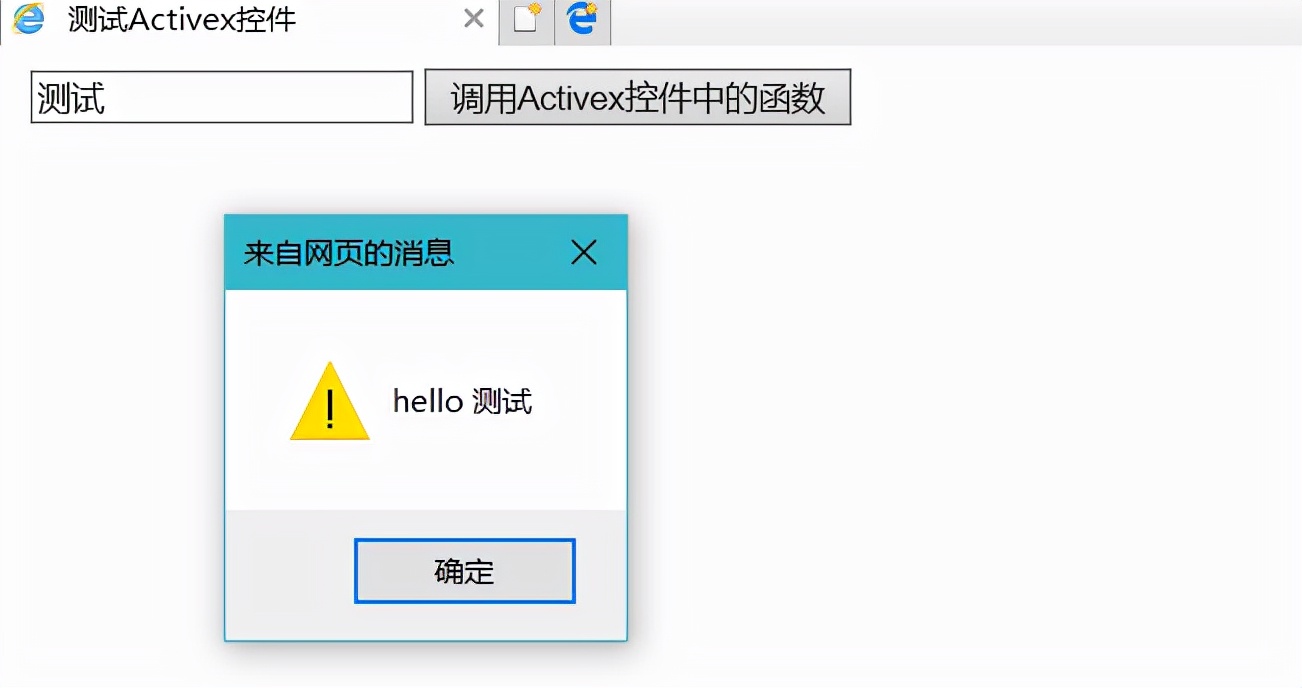

调用结果:
ActiveX调用公开的函数,进行和csharp交互操作
由于是迁移的文章,Activex现在用的比较少了,在特定的行业中还是有使用的,比如医疗行业软件,不过使用的是越来越少.
