PRO/E配置文件的类型：

PRO/E的配置文件的类型从后缀来分主要有config.pro和config.sup两种，其中config.pro 是一般类型的配置文件，而config.sup是受保护的系统配置文件，也就是强制执行的配置 文件，如果有其他配置文件里的项目和这个文件里的冲突则以这个文件里的配置为准，例 如在config.sup里配置了如下项目：

save_drawing_picture_file yes

而在其他的config.pro里设置了

save_drawing_picture_file no

则以config.sup里的设置为准，即在保存绘图时，将绘图文件保存为画面文件。

PRO/E的配置文件读取顺序如下：

1.在启动PRO/E时，首先读取的文件是在PRO/E安装目录下的TEXT文件夹内的config.sup文 件,也就是我们前面讲到的强制执行的文件，这个文件一般用于进行企业强制执行标准的配 置。

例如PRO/E安装在C盘下，则一般为：

C:\program files\proeWildfire 5.0\text\config.sup

2.第二步读取的文件是在PRO/E安装目录下的TEXT文件夹内的config.pro文件。可以使用此 文件设置库目录的路径。

3.第三步是读取本地目录中的config.pro文件，所谓本地目录也就是在工作中为了方便建立在启动目录上一级的目录，可以使用此文件从多个不同的工作目录中启动PRO/E。

例如启动目录为D:\user\zhang 则D:\user目录就是本地目录。

4.第四步是读取启动目录中的config.pro文件，也就是上例讲的D:\user\zhang目录。由于 系统是最后读取此目录中的配置文件，所以该文件里的配置会覆盖任何和它冲突的config. pro文件，但是不能覆盖config.sup文件内的配置。一般用这里的config.pro文件来进行环 境变量、映射键和搜索本地工作目录的路径设置。

5.最后要读取的就是系统的缺省配置值，也就是在以上所有目录下的配置文件都没有涉及到的配置项目都要按系统的缺省值进行配置。

一般情况下，如果你对config文件的配置项目比较熟悉，应该在启动PRO/E之前进行配置，在这种情况下一般是用"记事本"进行编辑。不过由于config文件的配置项目过于繁多，所以一般人不可能都了解，这样就需要在启动PRO/E后使用"优先选项"进行配置。

最后附送配置好的文档并配有常用快捷键，可直接复制保存为配置文件使用：

default_ext_ref_scope ALL

set_trail_single_step NO

native_kbd_macros NO

open_simplified_rep_by_default NO

show_dim_sign NO

enable_absolute_accuracy YES

auto_evaluate_simprep_rules YES

accuracy_lower_bound .0000001

protkdat D:\Program Files\PTC\emx7.0\bin\wildfire5\protk.dat

x_angle -50

y_angle -20

orientation USER_DEFAULT

blended_transparency NO

protkdat D:\Program Files\PTC\pdx7.0\bin\wildfire5\protk.dat

save_objects changed

pro_font_dir C:\WINNT\Fonts

pro_group_dir D:\Program Files\PTC\UDF

drawing_setup_file $PRO_DIRECTORY\text\iso.dtl

format_setup_file $PRO_DIRECTORY\text\iso.dtl

system_colors_file $PRO_DIRECTORY\text\syscol.scl

trail_dir E:\PTC

save_objects changed_and_updated

template_mfgcast $PRO_DIRECTORY\templates\mmns_mfg_cast.asm

template_mfgcmm $PRO_DIRECTORY\templates\mmns_mfg_cmm.asm

template_mfgemo $PRO_DIRECTORY\templates\mmns_mfg_emo.asm

template_mfgmold $PRO_DIRECTORY\templates\mmns_mfg_mold.asm

template_mfgnc $PRO_DIRECTORY\templates\mmns_mfg_nc.asm

template_mold_layout $PRO_DIRECTORY\templates\mmns_mold_lay.asm

template_sheetmetalpart $PRO_DIRECTORY\template\mmns_part_sheetmetal.prt

template_solidpart $PRO_DIRECTORY\template\mmns_part_solid.prt

template_designasm $PRO_DIRECTORY\template\mmks_asm_design.asm

template_drawing $PRO_DIRECTORY\template\a4_drawing.drw

axis_display no

add_weld_mp yes

angular_tol 0 1

angular_tol 1 0.5

angular_tol 2 0.25

ang_units ANG_DEG

ang_dim_in_screen yes

auto_regen_views yes

auto_convert_cables yes

allow_anatomic_features yes

allow_old_style_round no

allow_udf_style_cosm_threads no

allow_package_children none

allow_redo_intersections yes

allow_ref_scope_change yes

allow_move_attach_in_dtl_move yes

allow_move_view_with_move yes

allow_rfs_default_gtols_always yes

auto_associate_dimensions yes

auto_assembly_with_layouts yes

allow_ply_cross_section yes

allow_refs_to_geom_reps_in_drws no

allow_anatomic_features yes

color yes

color_windows all_windows

cl_arrow_scale 0

company_name Rosuvane

copy_dxf_dim_pict yes

create_drawing_dims_only yes

create_fraction_dim no

clr_print_plus_minus yes

comp_assemble_start constrain_in_window

comp_rollback_on_redef yes

create_numbered_layers no

chamfer_45deg_dim_text iso/din

display shade

datum_display yes

datum_point_display no

depthcue_always yes

dim_offscreen_limit 1.0

display_comps_to_assemble yes

diagram_pin_edit_multi_line yes

delete_after_plotting yes

display_dwg_tol_tags yes

draw_models_read_only no

draw_points_in_model_units no

drawing_view_origin_csys no

dwg_select_across_pick_box no

default_ext_ref_scope all

display_in_adding_view default

default_dec_places 2

default_ang_dec_places 2

default_dim_num_digits_changes yes

default_object_scope_setting all

default_font 10

display shade

display_coordinate_sys yes

display_coord_sys_tags no

display_coord_sys no

default_draw_scale 1

enable_popup_help yes

enable_offset_fan_curve yes

enable_flexmove_tool yes

enable_absolute_accuracy yes

fail_unattached_feature yes

fail_if_sec_regen_warning no

flip_arrow_scale 2

full_hlr_for_cables full

file_open_default_folder working_directory

fix_boundaries_on_import yes

fix_refs_to_intersections no

freeze_failed_assy_comp no

fail_ref_copy_when_missing_orig yes

feature_create_auto_begin yes

feature_create_auto_ok no

grid_snap no

gtol_dim_placement under_value

hlr_for_quilts yes

hole_diameter_override yes

highlight_new_dims yes

highlight_erased_dwg_views no

info_output_mode both

iges_out_trm_srfs_as_143 YES

interface_quality 3

intf_out_blanked_entities yes

intf3d_in_close_open_boundaries yes

instance_search_exhaustive no

kbd_cmd_abbreviation off

keep_info_datums yes

linear_tol 1 0.04

linear_tol 2 0.01

linear_tol 3 0.005

linear_tol 4 0.0005

logical_objects yes

let_proe_rename_pdm_objects no

menu_font 10

menu_translation both

mesh_spline_surf no

mark_approximate_dims yes

model_grid_spacing 1

maintain_limit_tol_nominal yes

make_parameters_from_fmt_tables no

make_proj_view_notes no

measure_sig_figures 6

menu_show_instances no

model_tree_start yes

ncpost_type gpost

number_user_colors 16

nt_cache_dirs yes

orientation trimetric

override_store_back no

orthogonal_snap yes

pro_unit_length unit_mm

pro_unit_sys mmns

pick_aperture_radius 7

punch_axis_points yes

plot_linestyle_scale 1

pro_unit_length UNIT_mm

pro_unit_mass UNIT_gram

pro_unit_sys mmns

plotter_command windows_print_manager

pro_editor_command notepad

protable_in_background no

provide_pick_message_always yes

package_constraints disallow

parenthesize_ref_dim no

pick_chain_tangent_only yes

postscript_compression yes

ps_output_with_pagesize yes

propagate_change_to_parents no

pipe_solid_centerline no

pipe_3d_bend_theor_int_pts yes

relation_file_editor editor

remember_last_get_point_option yes

retain_pattern_definition yes

read_famtab_file_on_retrieve no

regen_backup_using_disk no

rename_drawings_with_object both

startup_check_for_visualization no

save_drawing_picture_file embed

spin_rate_zoom_sensitive yes

spin_with_part_entities yes

spin_with_silhouettes yes

system_background_color 0.000000 7.058824 19.607843

show_axes_for_extr_arcs no

show_dim_sign no

show_geom_checks_on_creation yes

sketcher_animated_modify yes

sketcher_disp_constraints yes

sketcher_disp_dimensions yes

sketcher_disp_vertices yes

sketcher_undo_stack_limit 200

sketcher_starts_in_2d yes

sketcher_intent_manager yes

scope_invalid_refs prohibit

shade_moving_comp yes

save_bitmap none

summary_help yes

shade_mfg_ref_models yes

store_tool_path_file no

save_model_display shading_lod

save_object_in_current yes

save_instance_accelerator none

save_modified_draw_models_only no

save_objects changed_and_updated

save_unchanged_pdm_object as_ref

selection_of_removed_entities no

switch_dims_for_notes yes

sym_leader_orient_move_text no

symbol_palette_input yes

topobus_enable yes

tol_display no

tol_mode nominal

todays_date_note_format %dd-%Mmm-%yyyy

tiff_compression g4

tiff_type grayscale

tolerance_standard ANSI

thermo_position_hint no_window_overlap

update_pre_130_harness yes

update_pre_16_cable_layers yes

use_pre_wildfire_color_scheme YES

use_major_units no

variant_drawing_item_sizes no

vrml_anchor_url no

vrml_background_color no

vrml_explode_lines yes

vrml_export_resolution medium

vrml_file_duplicate_material yes

vrml_multiple_views all

vrml_simprep_export yes

vrml_parameters designated

weld_ui_standard iso

www_add_aux_frame no

www_export_geometry_as jpg_vrml

www_multiple_views all

www_tree_location in

mapkey $F1 @MAPKEY_LABEL着色;~ Command `ProCmdEnvMdlDisp` `Shading`;\

mapkey(continued) ~ Command `ProCmdViewDefault`;

mapkey $F2 @MAPKEY_LABEL隐藏线;~ Command `ProCmdEnvMdlDisp` `Hidden line`;\

mapkey(continued) ~ Command `ProCmdViewDefault`;

mapkey $F3 @MAPKEY_LABEL拭除不显示;~ Command `ProCmdModelEraseNotDisp` ;\

mapkey(continued) ~ Activate `file_erase_nd` `ok_pb`;

mapkey $F4 @MAPKEY_LABEL拭除当前;~ Select `main_dlg_cur` `MenuBar1`1 `File`;\

mapkey(continued) ~ Close `main_dlg_cur` `MenuBar1`;\

mapkey(continued) ~ Select `main_dlg_cur` `File.cb_file_erase`;\

mapkey(continued) ~ Close `main_dlg_cur` `File.cb_file_erase`;\

mapkey(continued) ~ Activate `main_dlg_cur` `psh_erase`;~ Activate `0_std_confirm` `OK`;

mapkey $F5 @MAPKEY_LABEL基准平面;~ Command `ProCmdEnvDtmDisp` 1;

mapkey $F6 @MAPKEY_LABEL基准轴;~ Command `ProCmdEnvAxisDisp` 1;

mapkey $F7 @MAPKEY_LABEL基准点;~ Command `ProCmdEnvPntsDisp` 1;

mapkey $F8 @MAPKEY_LABEL真实感;~ Command `ProCmdEnvColors` 1 ;\

mapkey(continued) ~ Command `ProCmdViewRenderRTFloor` 1;

mapkey $F11 @MAPKEY_LABEL删除所有版本;~ Command `ProCmdModelDelete` ;\

mapkey(continued) ~ FocusIn `UI Message Dialog` `yes`;~ Activate `UI Message Dialog` `yes`;

mapkey $F12 @MAPKEY_LABEL删除旧版本;~ Command `ProCmdFilePurge` ;;

mapkey pu @SYSTEMpurge;%\del;

mapkey \del @SYSTEMdel *.log.* *.err.* *.inf.* *.lst.* *.crc *.acc *.ger *.ers *.m_p *.bak *.bk1 *.bk2 std.out\

mapkey(continued) *.m_p *.bak *.bk1 *.bk2 std.out current_session.pro;

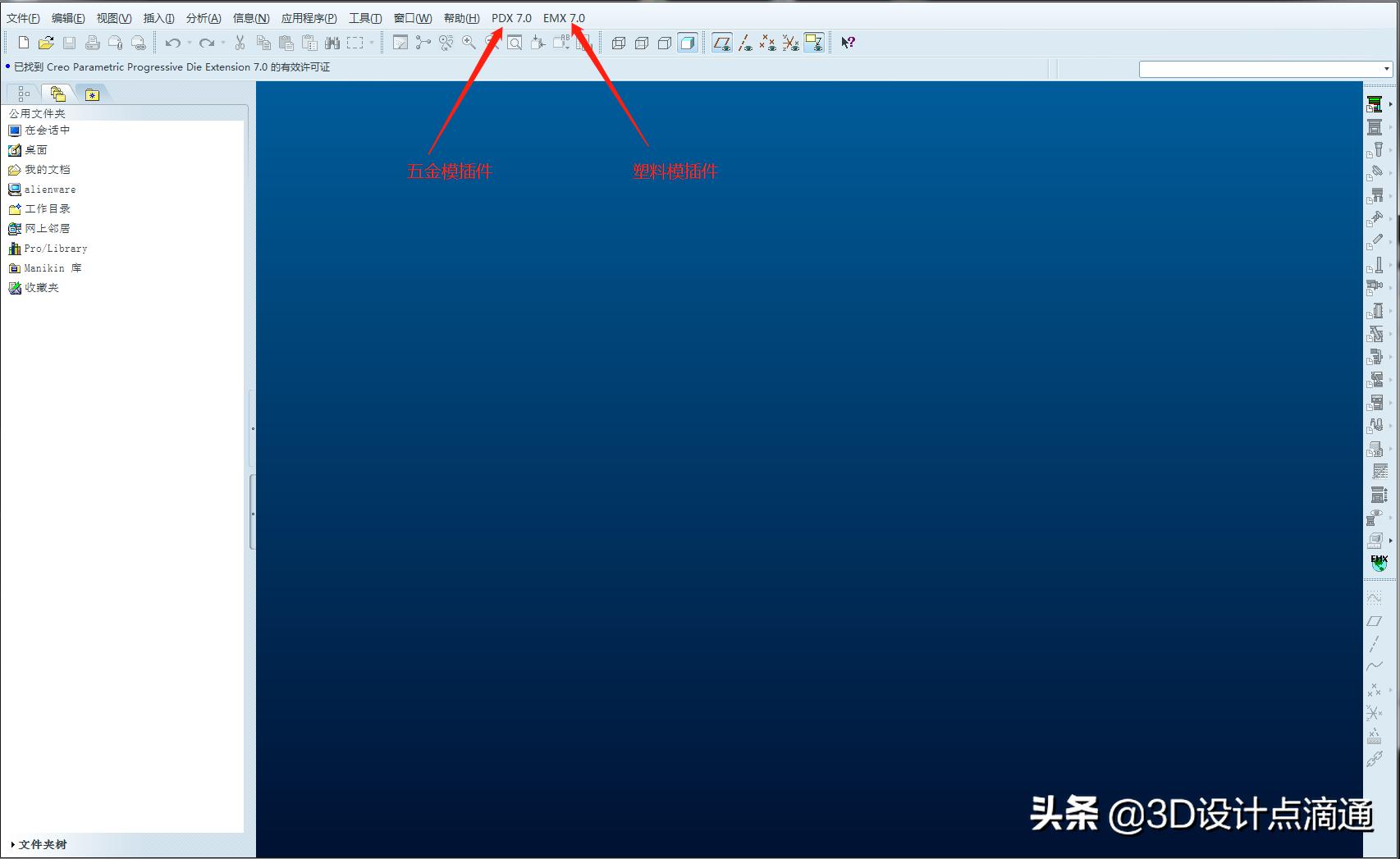

配置效果
