python与qt可以混合编程吗 (python的mlp集成方法)

本示例展示了如何使用pyside加载 QML 文件，并与python代码交互。

main.py文件代码及注释如下：

import sys
from pathlib import Path
from PySide6.QtCore import QObject, Slot
from PySide6.QtGui import QGuiApplication
from PySide6.QtQml import QQmlApplicationEngine, QmlElement
from PySide6.QtQuickControls2 import QQuickStyle

QML_IMPORT_NAME = "io.qt.textproperties"
QML_IMPORT_MAJOR_VERSION = 1

@QmlElement#使用@QmlElement装饰器
class Bridge(QObject):
    #定义Bridge类
    @Slot(str, result=str)
    def getColor(self, s):
        if s.lower() == "red":
            return "#ef9a9a"
        elif s.lower() == "green":
            return "#a5d6a7"
        elif s.lower() == "blue":
            return "#90caf9"
        else:
            return "white"

    @Slot(float, result=int)
    def getSize(self, s):
        size = int(s * 34)
        if size <= 0:
            return 1
        else:
            return size

    @Slot(str, result=bool)
    def getItalic(self, s):
        if s.lower() == "italic":
            return True
        else:
            return False

    @Slot(str, result=bool)
    def getBold(self, s):
        if s.lower() == "bold":
            return True
        else:
            return False

    @Slot(str, result=bool)
    def getUnderline(self, s):
        if s.lower() == "underline":
            return True
        else:
            return False

if __name__ == '__main__':
    app = QGuiApplication(sys.argv)
    QQuickStyle.setStyle("Material")
    engine = QQmlApplicationEngine()
    qml_file = Path(__file__).parent / 'view.qml'#获取当前目录的路径，然后添加qml文件
    engine.load(qml_file)#加载qml文件
    if not engine.rootObjects():
        sys.exit(-1)
    sys.exit(app*ex.e**c())

view.qml文件代码及注释如下：

import QtQuick 2.0
import QtQuick.Layouts 1.11
import QtQuick.Controls 2.1
import QtQuick.Window 2.1
import QtQuick.Controls.Material 2.1

import io.qt.textproperties 1.0

ApplicationWindow {
    id: page
    width: 800
    height: 400
    visible: true
    Material.theme: Material.Dark
    Material.accent: Material.Red

    Bridge {//将信号连接到python中的Bridge类
        id: bridge
    }

    GridLayout {//网格布局
        id: grid
        columns: 2//2列
        rows: 3//3行

        ColumnLayout {//列布局
            spacing: 2//元素间隔
            Layout.columnSpan: 1//此属性允许您指定GridLayout中项目的列跨度。默认值为1。
            Layout.preferredWidth: 400//此属性保存布局中项目的首选宽度

            Text {
                id: leftlabel
                Layout.alignment: Qt.AlignHCenter//水平居中对齐
                color: "white"
                font.pointSize: 16
                text: "你好Pyside6"
                Layout.preferredHeight: 100
                Material.accent: Material.Green
            }

            RadioButton {
                id: italic
                Layout.alignment: Qt.AlignLeft//左居中对齐
                text: "Italic"
                onToggled: {//选择触发事件
                    //函数getItalic()返回bool值给leftlabel.font.italic设置字体是否为斜体
                    leftlabel.font.italic = bridge.getItalic(italic.text)
                    //函数getBold()返回bool值给leftlabel.font.bold设置字体是否是粗体
                    leftlabel.font.bold = bridge.getBold(italic.text)
                    //函数getUnderline()返回bool值给leftlabel.font.underline设置字体是否右下划线
                    leftlabel.font.underline = bridge.getUnderline(italic.text)

                }
            }
            RadioButton {
                id: bold
                Layout.alignment: Qt.AlignLeft
                text: "Bold"
                onToggled: {
                    leftlabel.font.italic = bridge.getItalic(bold.text)
                    leftlabel.font.bold = bridge.getBold(bold.text)
                    leftlabel.font.underline = bridge.getUnderline(bold.text)
                }
            }
            RadioButton {
                id: underline
                Layout.alignment: Qt.AlignLeft
                text: "Underline"
                onToggled: {
                    leftlabel.font.italic = bridge.getItalic(underline.text)
                    leftlabel.font.bold = bridge.getBold(underline.text)
                    leftlabel.font.underline = bridge.getUnderline(underline.text)
                }
            }
            RadioButton {
                id: noneradio
                Layout.alignment: Qt.AlignLeft
                text: "None"
                checked: true
                onToggled: {
                    leftlabel.font.italic = bridge.getItalic(noneradio.text)
                    leftlabel.font.bold = bridge.getBold(noneradio.text)
                    leftlabel.font.underline = bridge.getUnderline(noneradio.text)
                }
            }
        }

        ColumnLayout {
            id: rightcolumn
            spacing: 2
            Layout.columnSpan: 1
            Layout.preferredWidth: 400
            Layout.preferredHeight: 400
            Layout.fillWidth: true

            RowLayout {
                Layout.alignment: Qt.AlignVCenter | Qt.AlignHCenter


                Button {
                    id: red
                    text: "Red"
                    highlighted: true
                    Material.accent: Material.Red
                    onClicked: {
                        //函数getColor()返回颜色赋值给leftlabel.color
                        leftlabel.color = bridge.getColor(red.text)
                    }
                }
                Button {
                    id: green
                    text: "Green"
                    highlighted: true
                    Material.accent: Material.Green
                    onClicked: {
                        leftlabel.color = bridge.getColor(green.text)
                    }
                }
                Button {
                    id: blue
                    text: "Blue"
                    highlighted: true
                    Material.accent: Material.Blue
                    onClicked: {
                        leftlabel.color = bridge.getColor(blue.text)
                    }
                }
                Button {
                    id: nonebutton
                    text: "None"
                    highlighted: true
                    Material.accent: Material.BlueGrey
                    onClicked: {
                        leftlabel.color = bridge.getColor(nonebutton.text)
                    }
                }
            }
            RowLayout {
                Layout.fillWidth: true
                Layout.alignment: Qt.AlignVCenter | Qt.AlignHCenter
                Text {
                    id: rightlabel
                    color: "white"
                    Layout.alignment: Qt.AlignLeft
                    text: "Font size"
                    Material.accent: Material.White
                }
                Slider {
                    width: rightcolumn.width*0.6
                    Layout.alignment: Qt.AlignRight
                    id: slider
                    value: 0.5
                    onValueChanged: {
                        //函数getSize()返回int值，赋值给leftlabel.font.pointSize改变字体大小
                        leftlabel.font.pointSize = bridge.getSize(value)
                    }
                }
            }
        }
    }
}

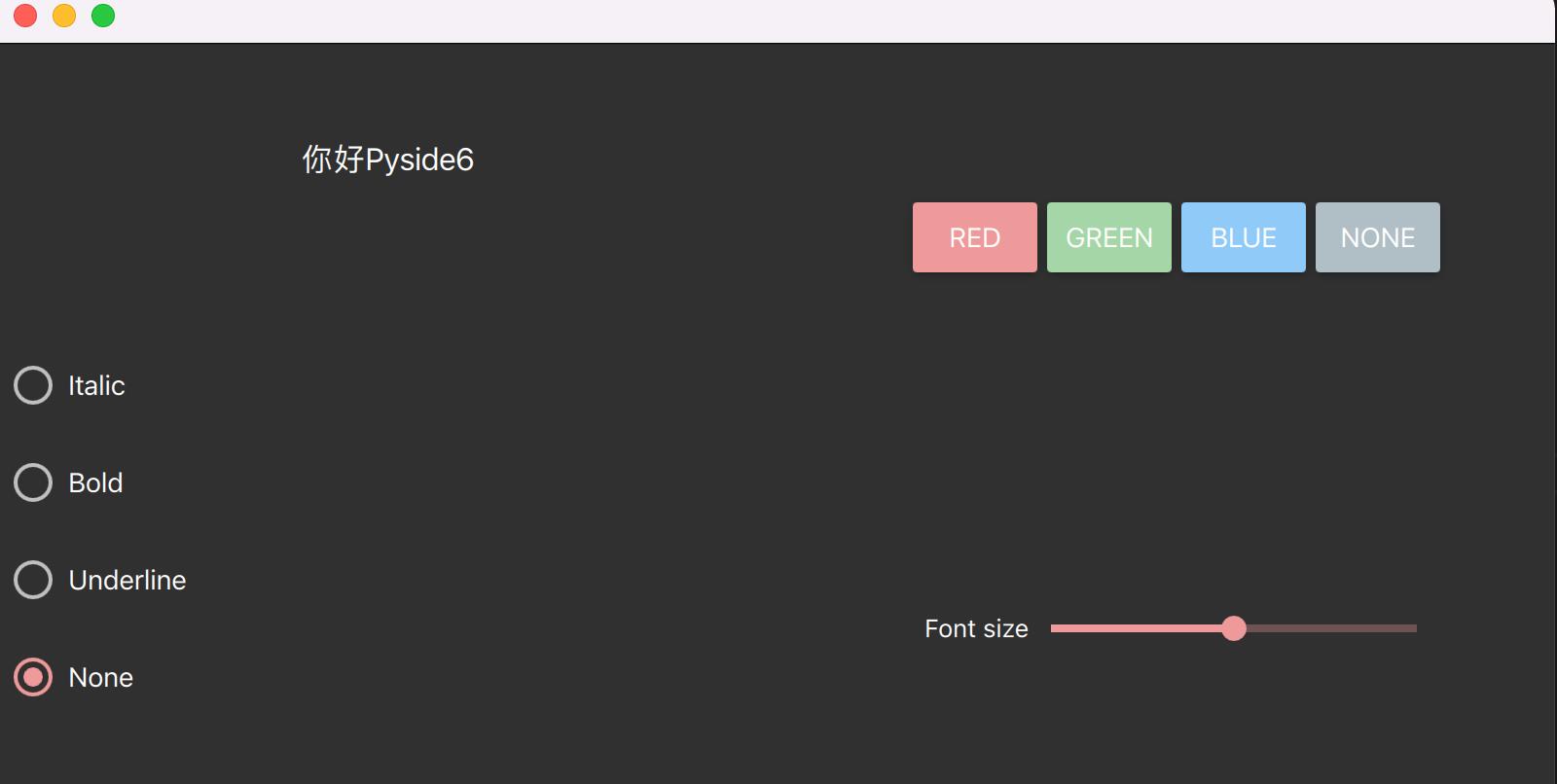

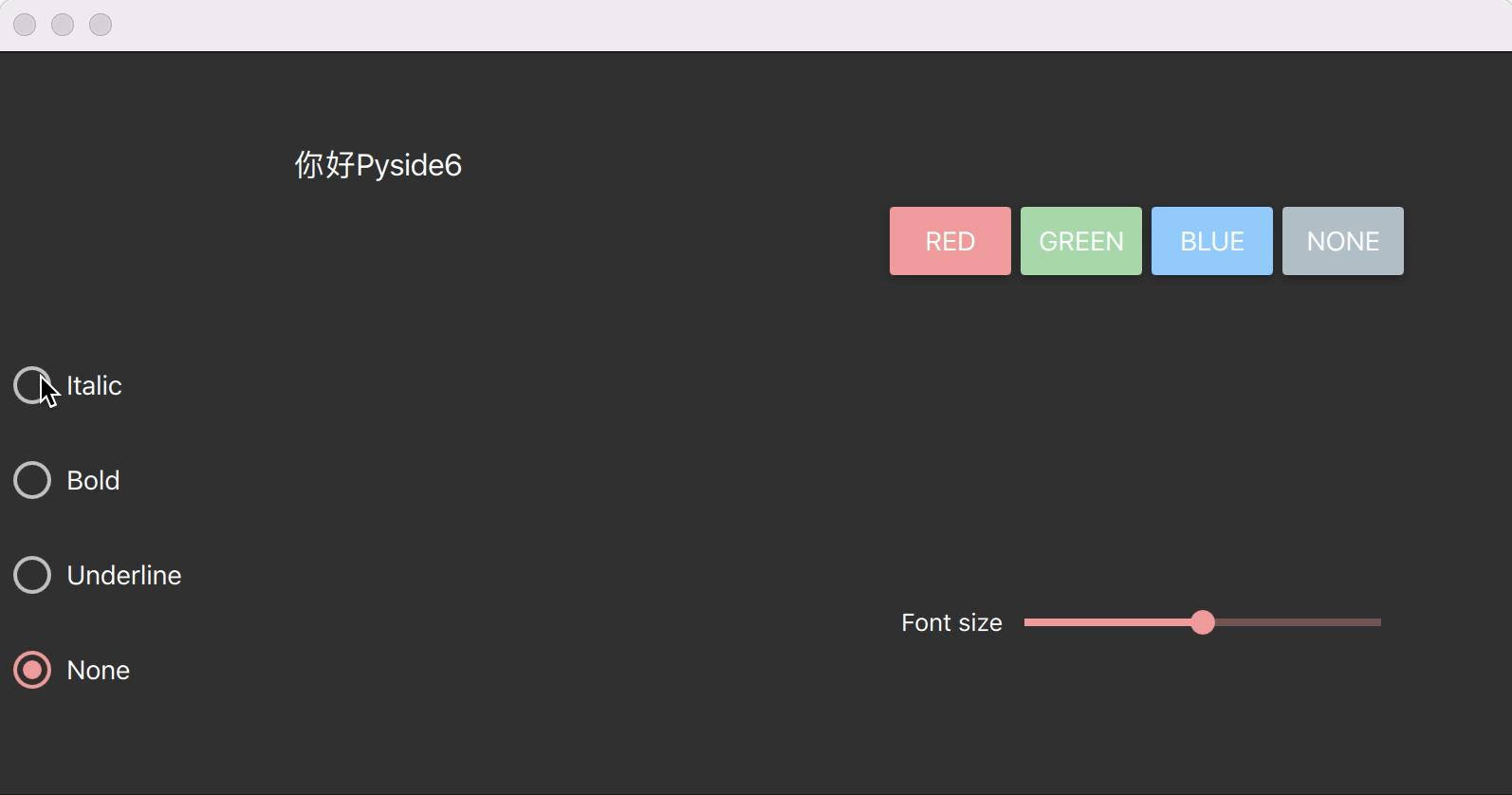

将main.py与view.qml放到同一文件夹，运行main.py，显示如下：
