这是直观感受 TLS 握手流程最后一部分。

十. 直观感受 TLS 1.3 会话恢复

这一章，笔者用 wireshark 抓取 TLS 1.3 会话恢复中的数据包，让读者直观感受一下 TLS 1.3 会话恢复流程。

1. PSK 会话恢复

tls握手流程,tls握手过程

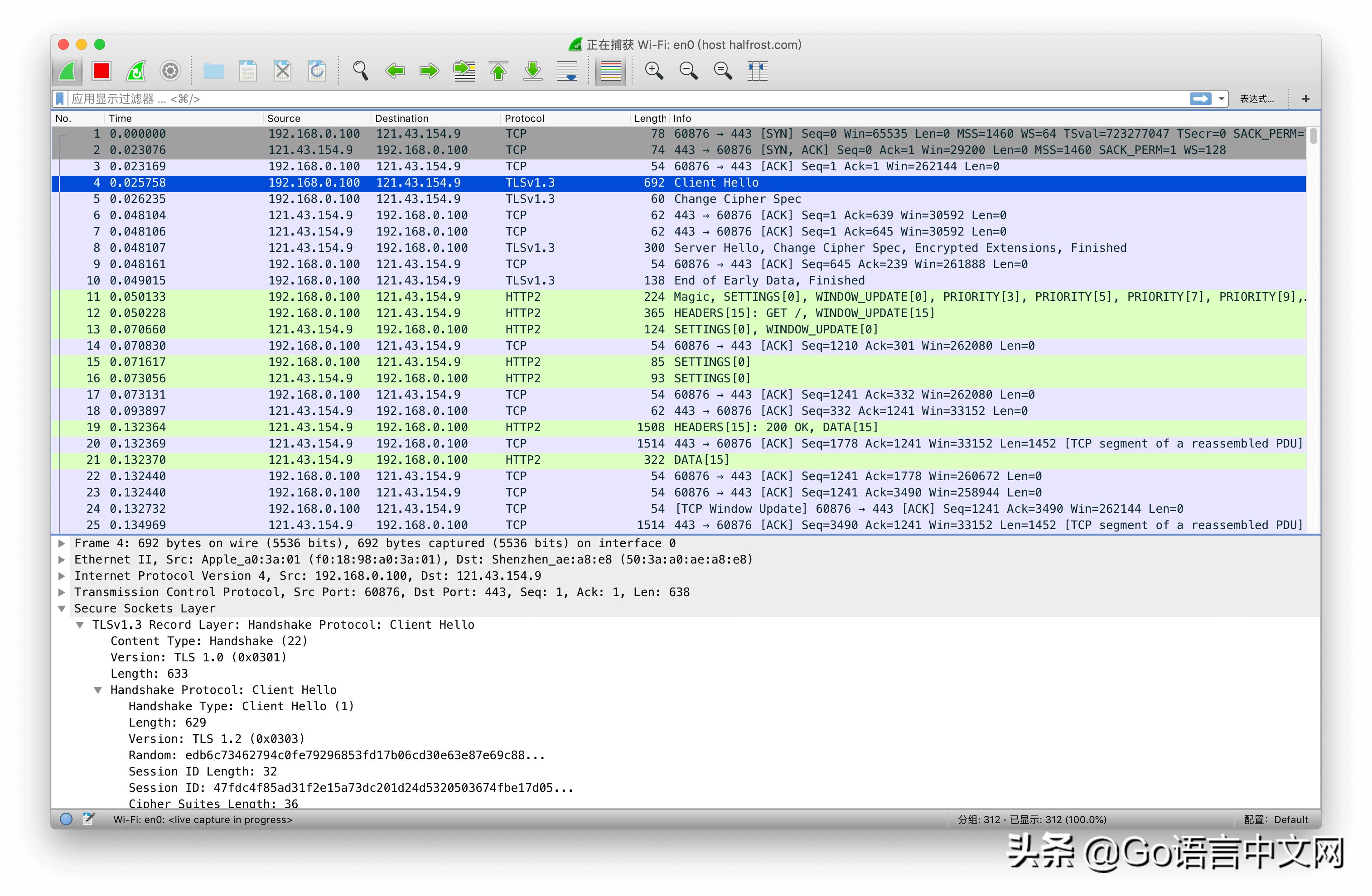

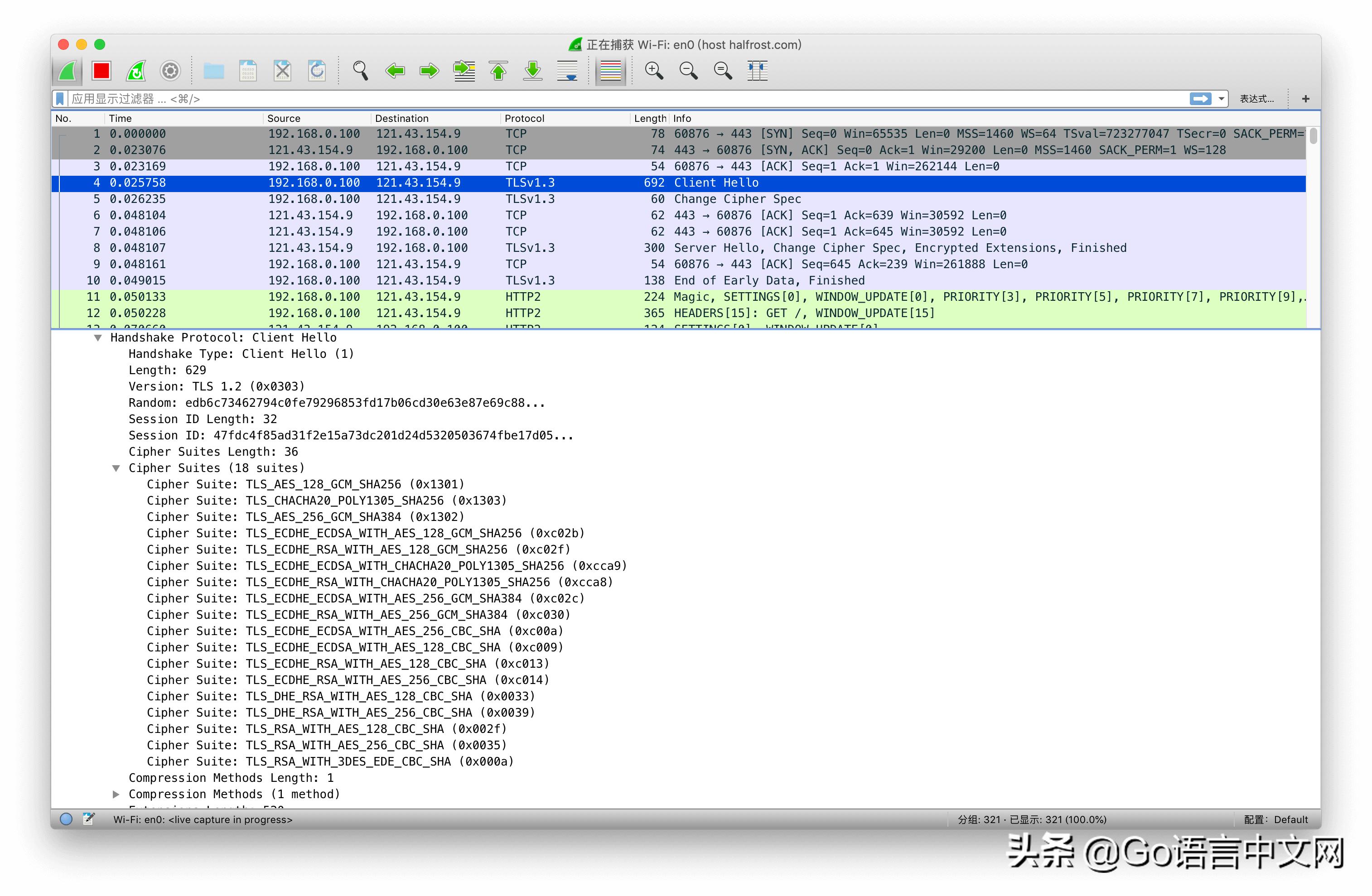

这是 TLS 1.3 会话恢复的完整流程。

tls握手流程,tls握手过程

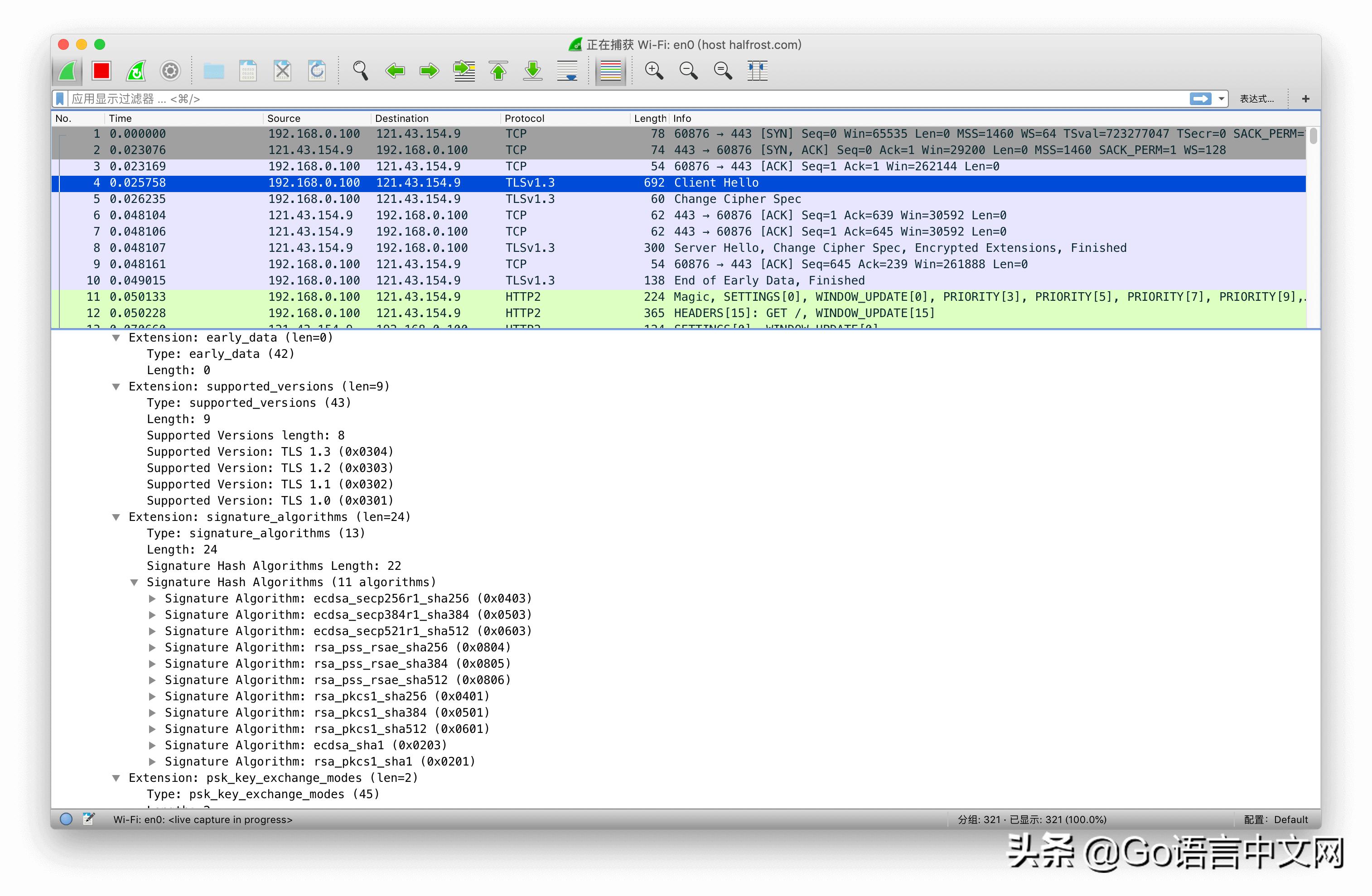

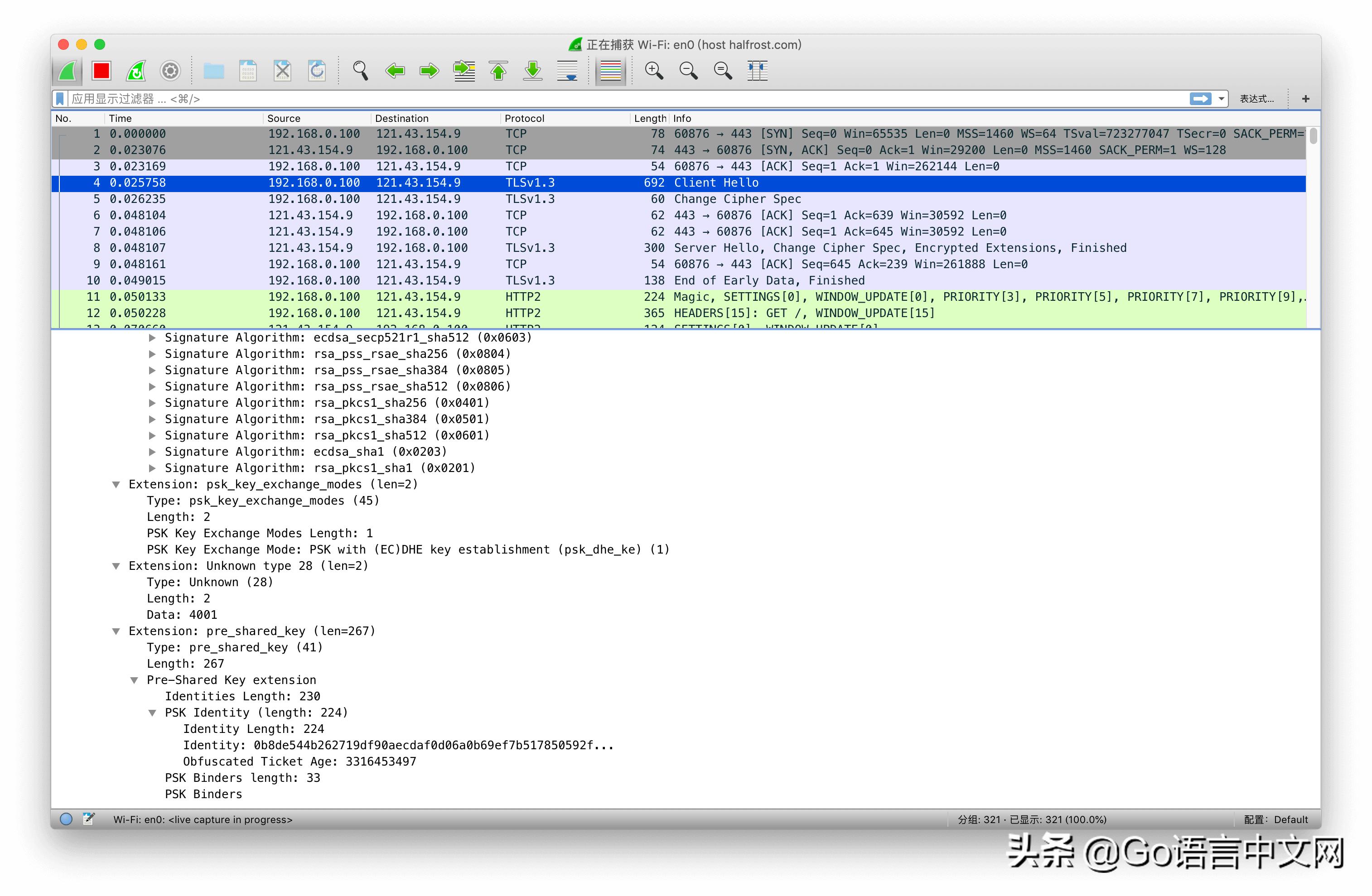

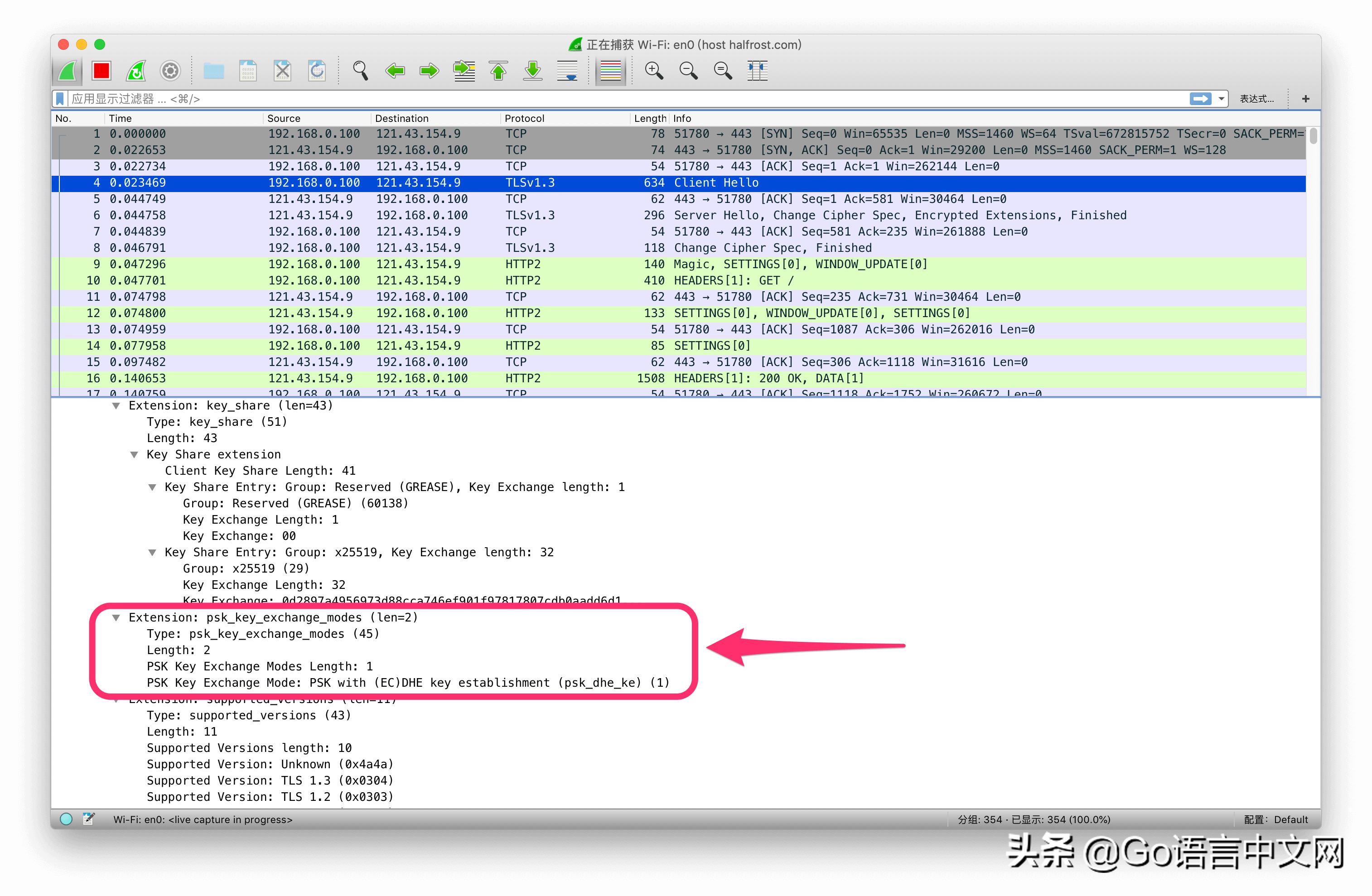

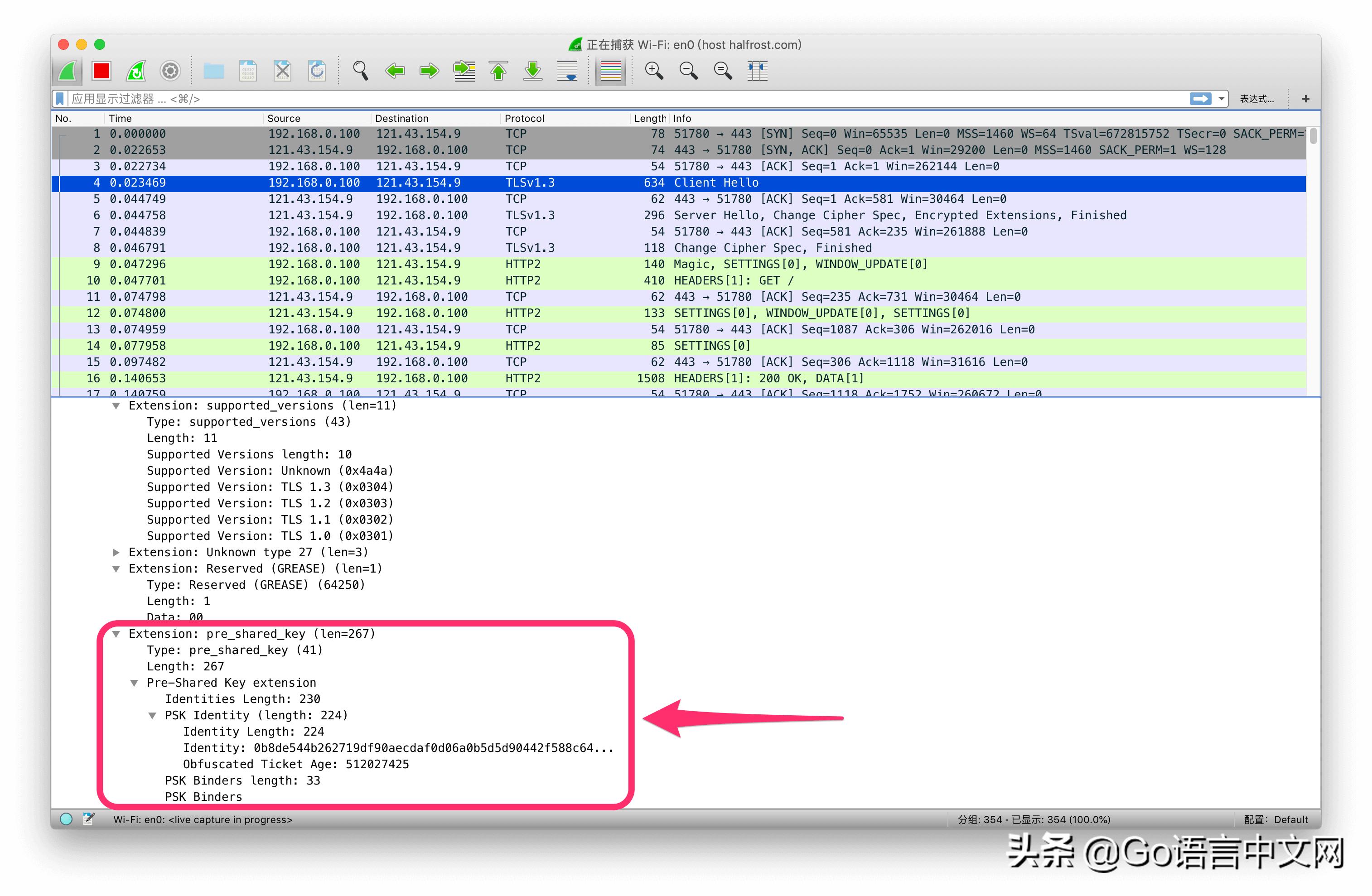

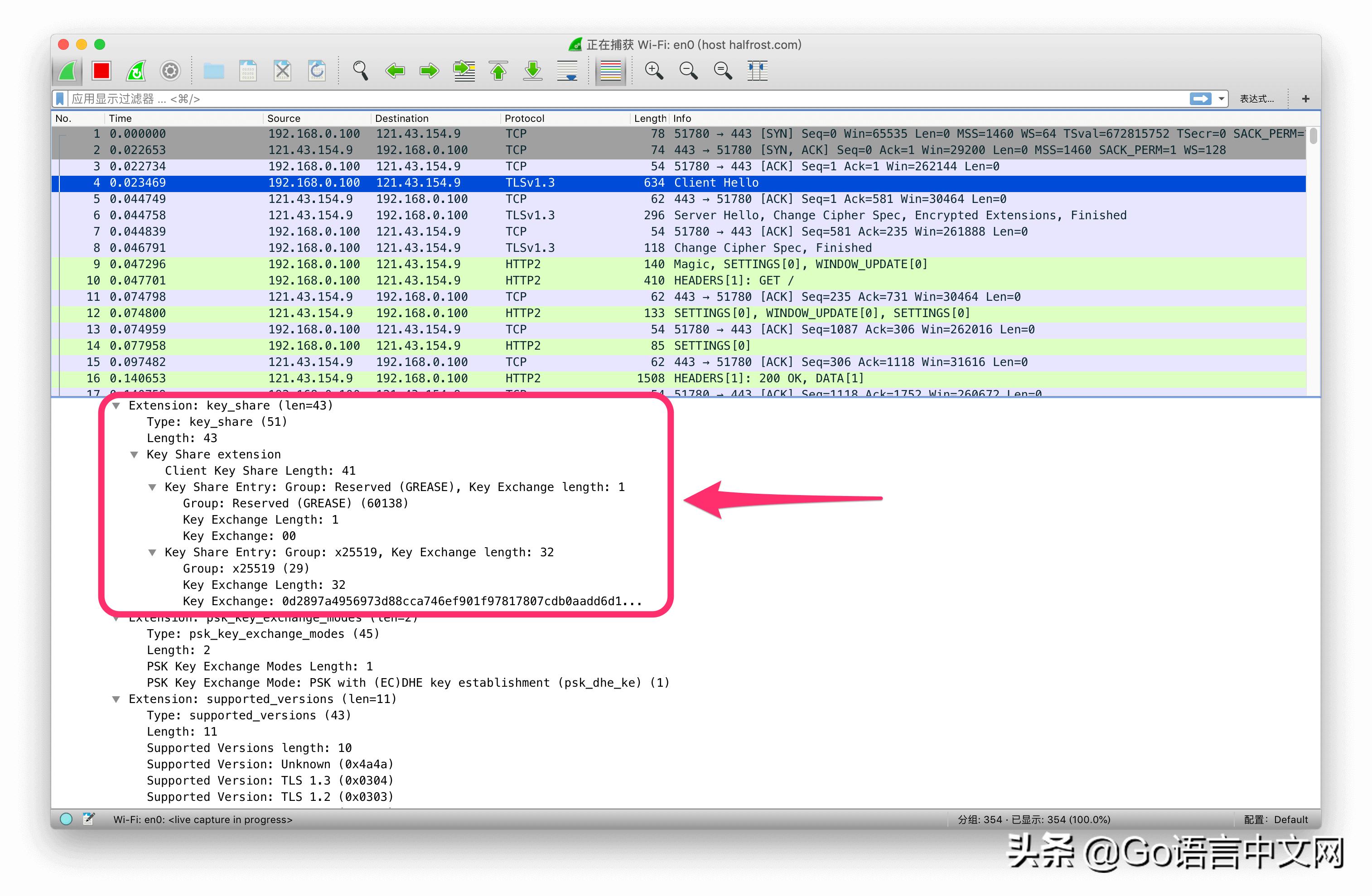

上面这 4 个扩展是 TLS 1.3 PSK 会话恢复中 ClientHello 必须配置的。psk_key_exchange_modes、pre_shared_key、key_share、supported_versions。

tls握手流程,tls握手过程

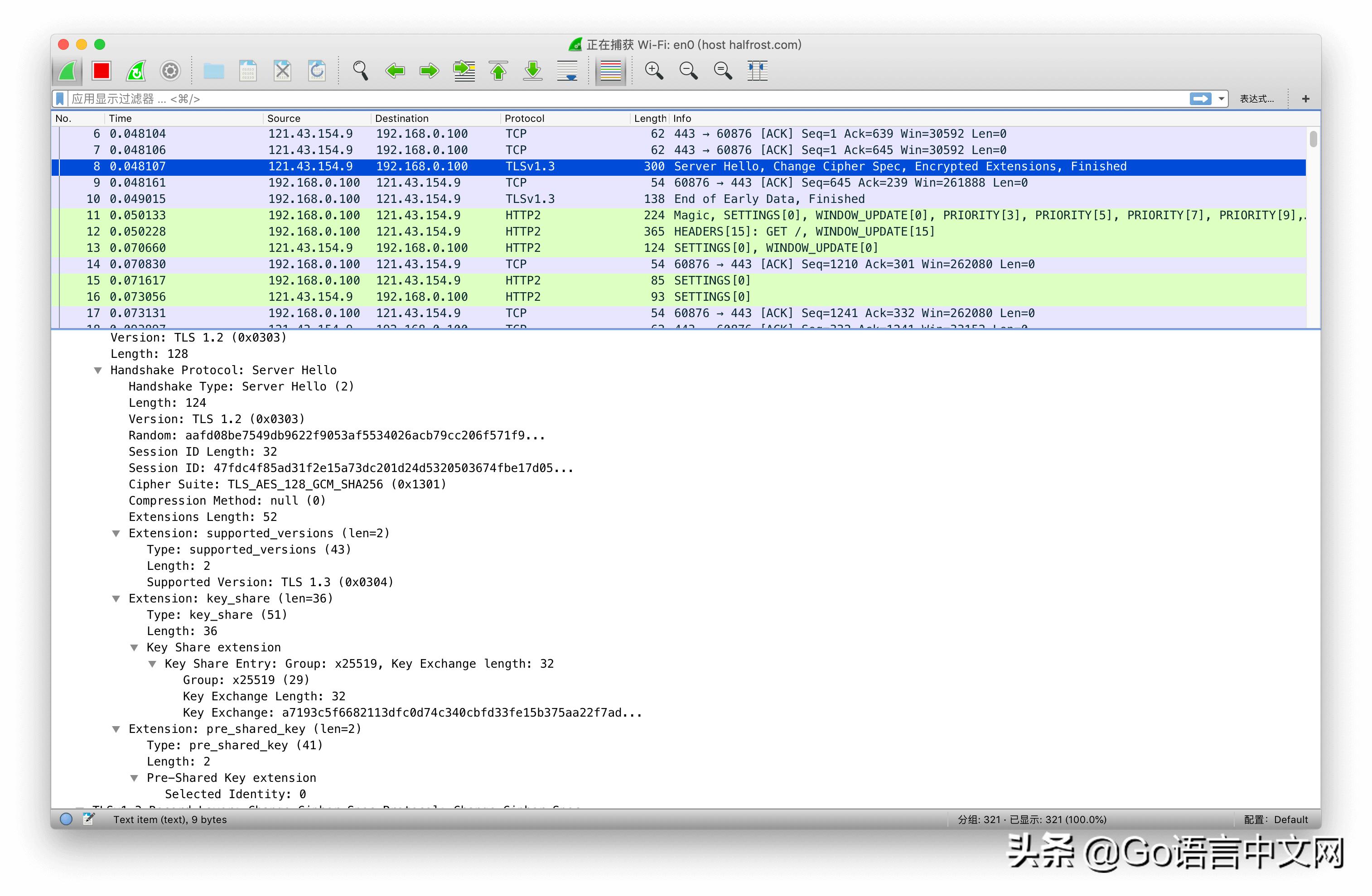

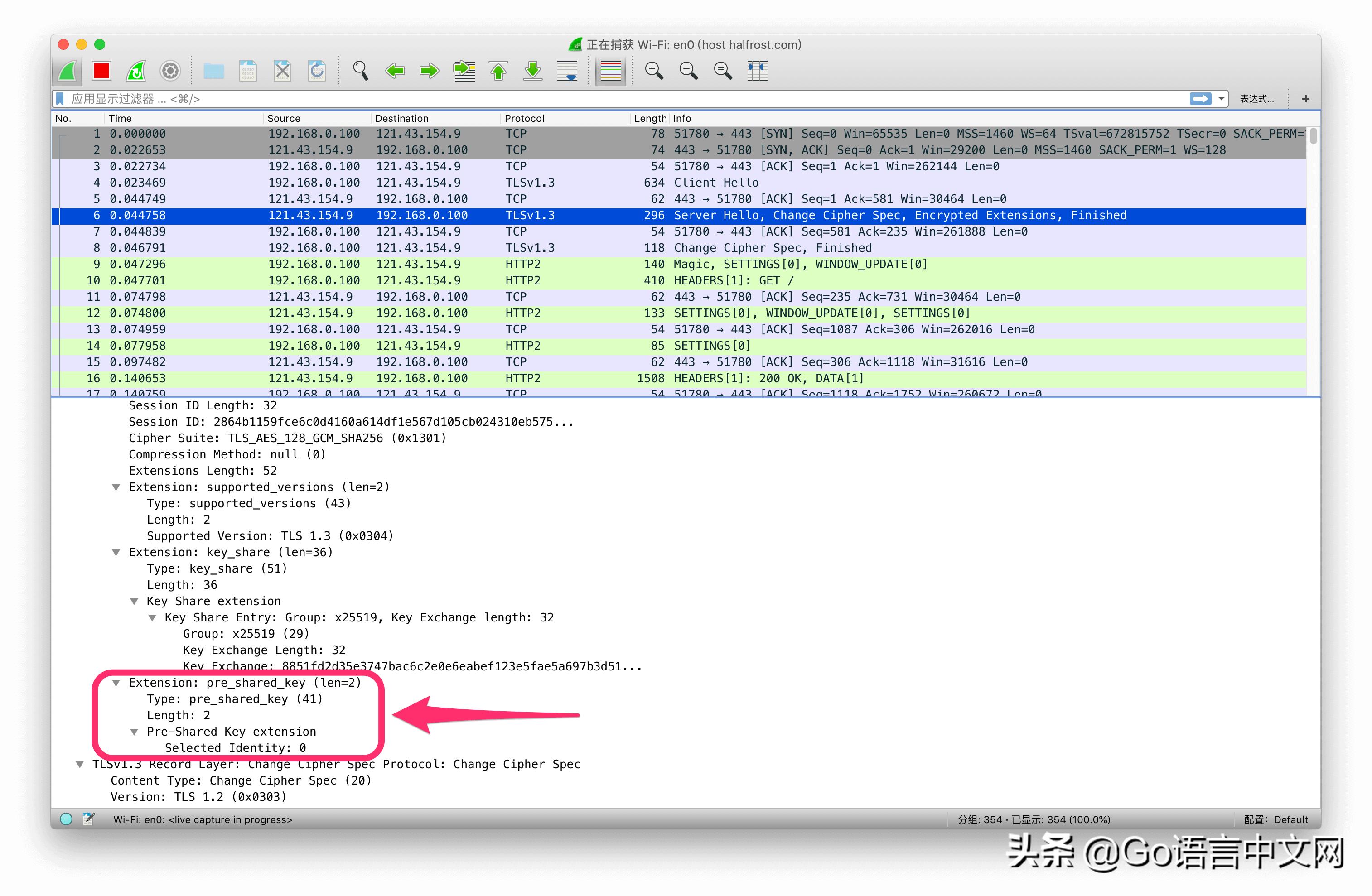

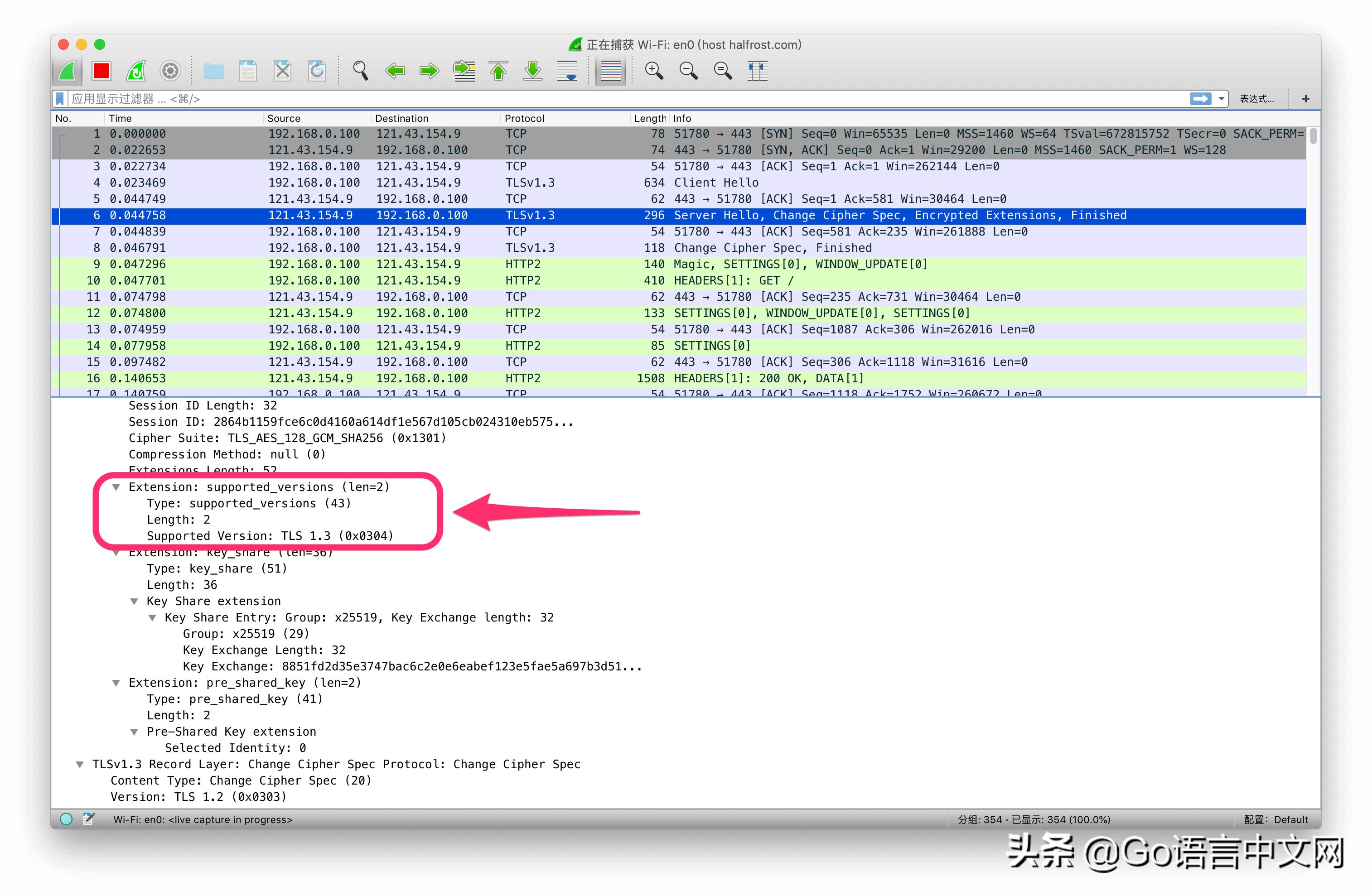

上面这 3 个扩展是 TLS 1.3 PSK 会话恢复中 ServerHello 必须配置的。pre_shared_key、key_share、supported_versions。

tls握手流程,tls握手过程

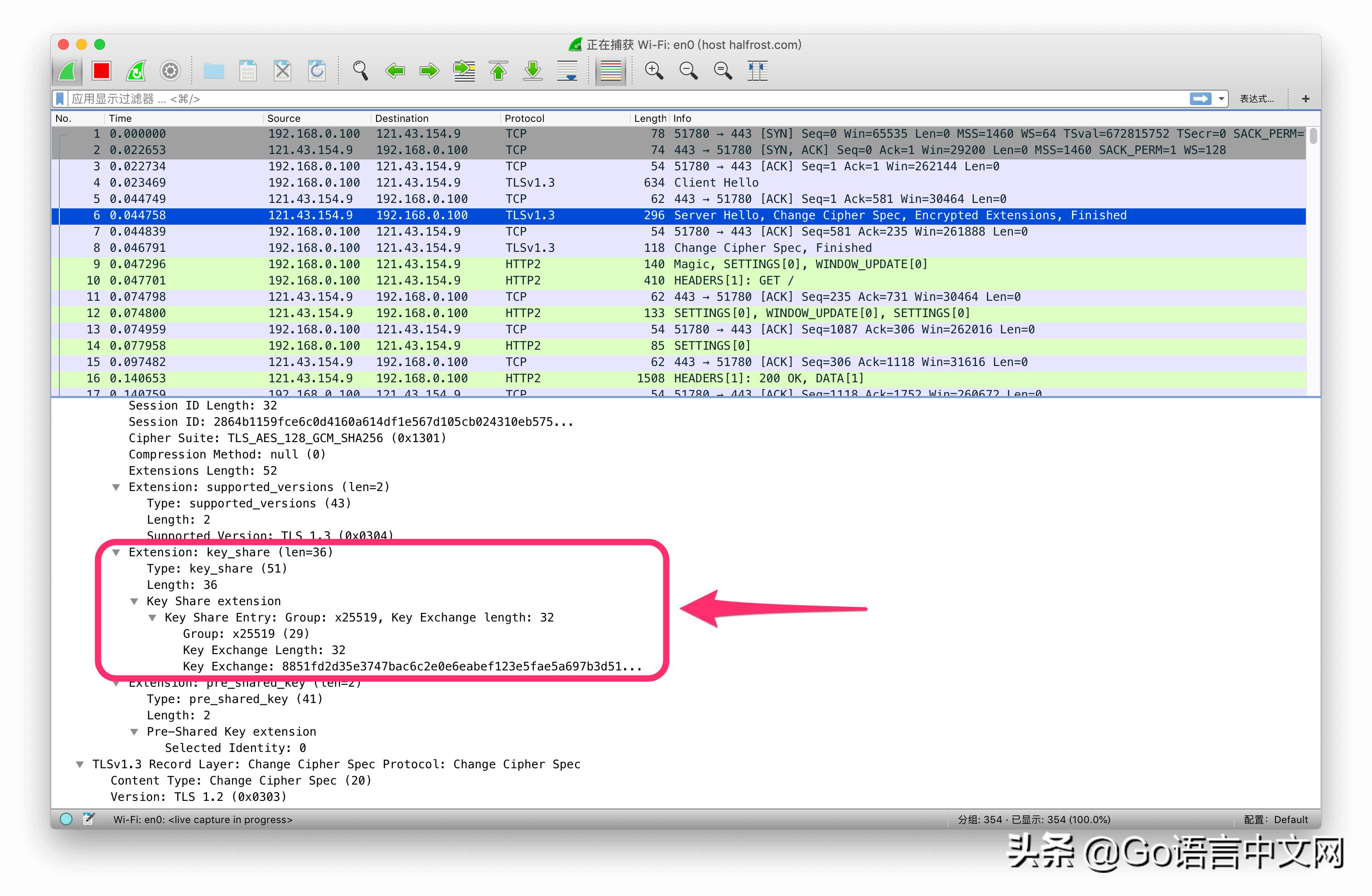

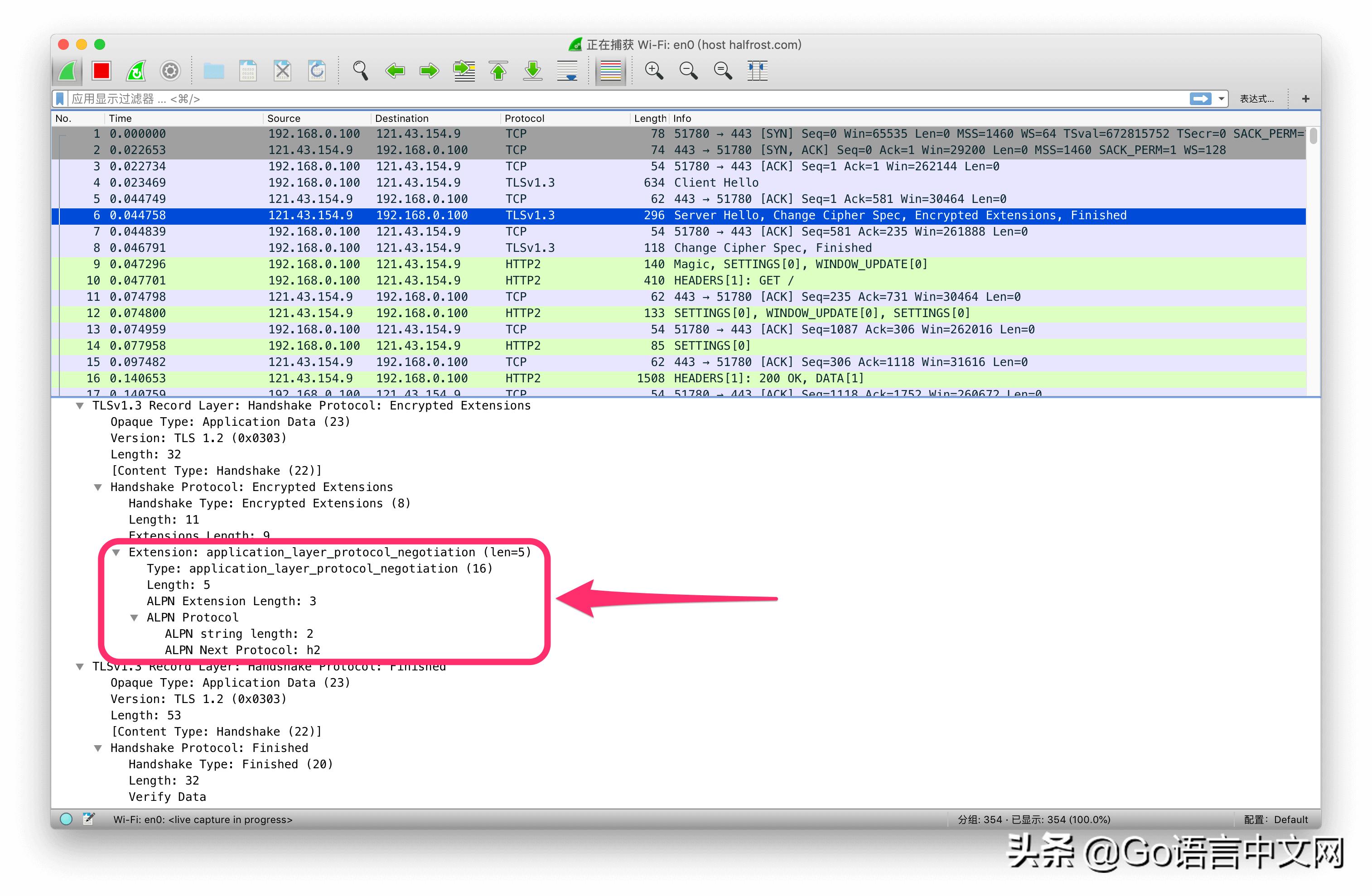

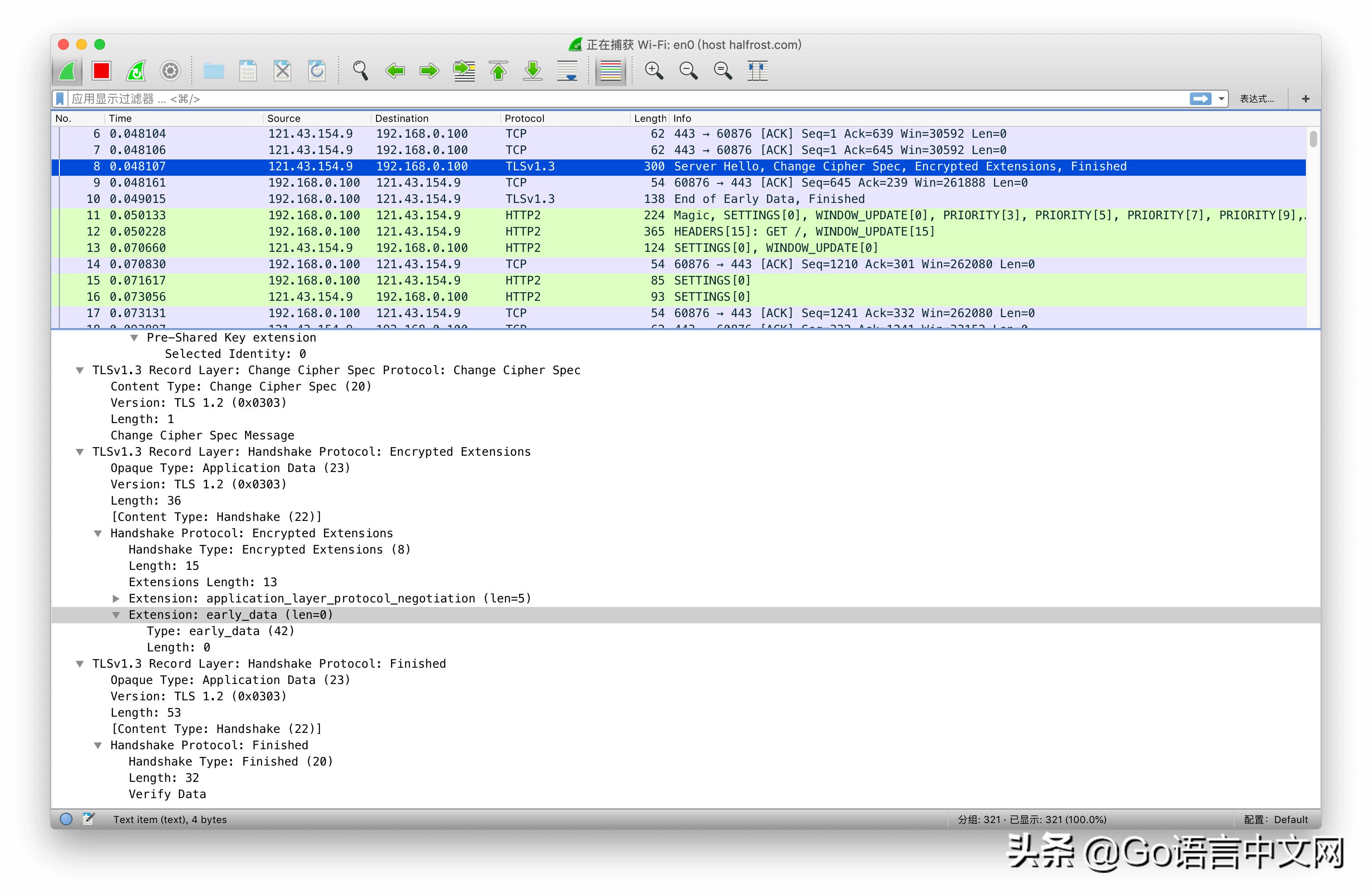

一旦 PSK 校验完成，Server 就不需要再次发送证书了，直接回应 ChangeCipherSpec、Encrypted Extensions、Finished 即可完成会话恢复。

2. 0-RTT

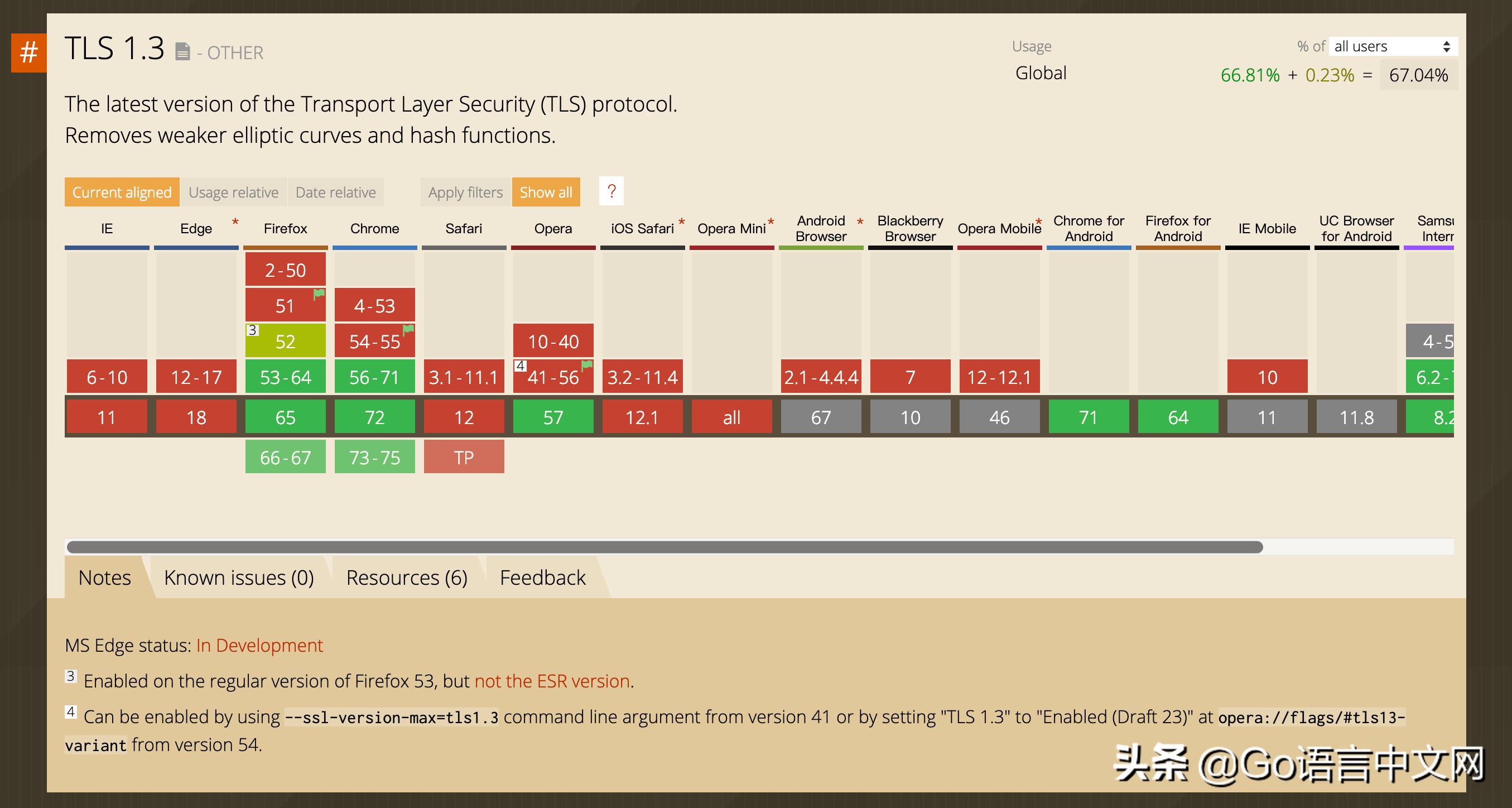

截止到笔者写这篇文章为止，当前主流浏览器对 TLS 1.3 的支持度如下图。

tls握手流程,tls握手过程

Google Chrome Canary 最新 74.0.3702.0 还不能支持 0-RTT 模式，Firefox Nightly 最新 67.0a1 可以支持 0-RTT 模式(在 about:config 中 security.tls.enable_0rtt_data 设置为 true)，Safari 最新的 12.0.3 (14606.4.5) 还不能支持 0-RTT 模式。所以笔者只能用 Firefox Nightly 抓取 0-RTT 的包。

当然 OpenSSL 最新版 1.1.1a 的 Client 是支持发送 early_data 的，也就是支持 0-RTT 的，用它来调试 TLS 1.3 0-RTT 也更加方便。

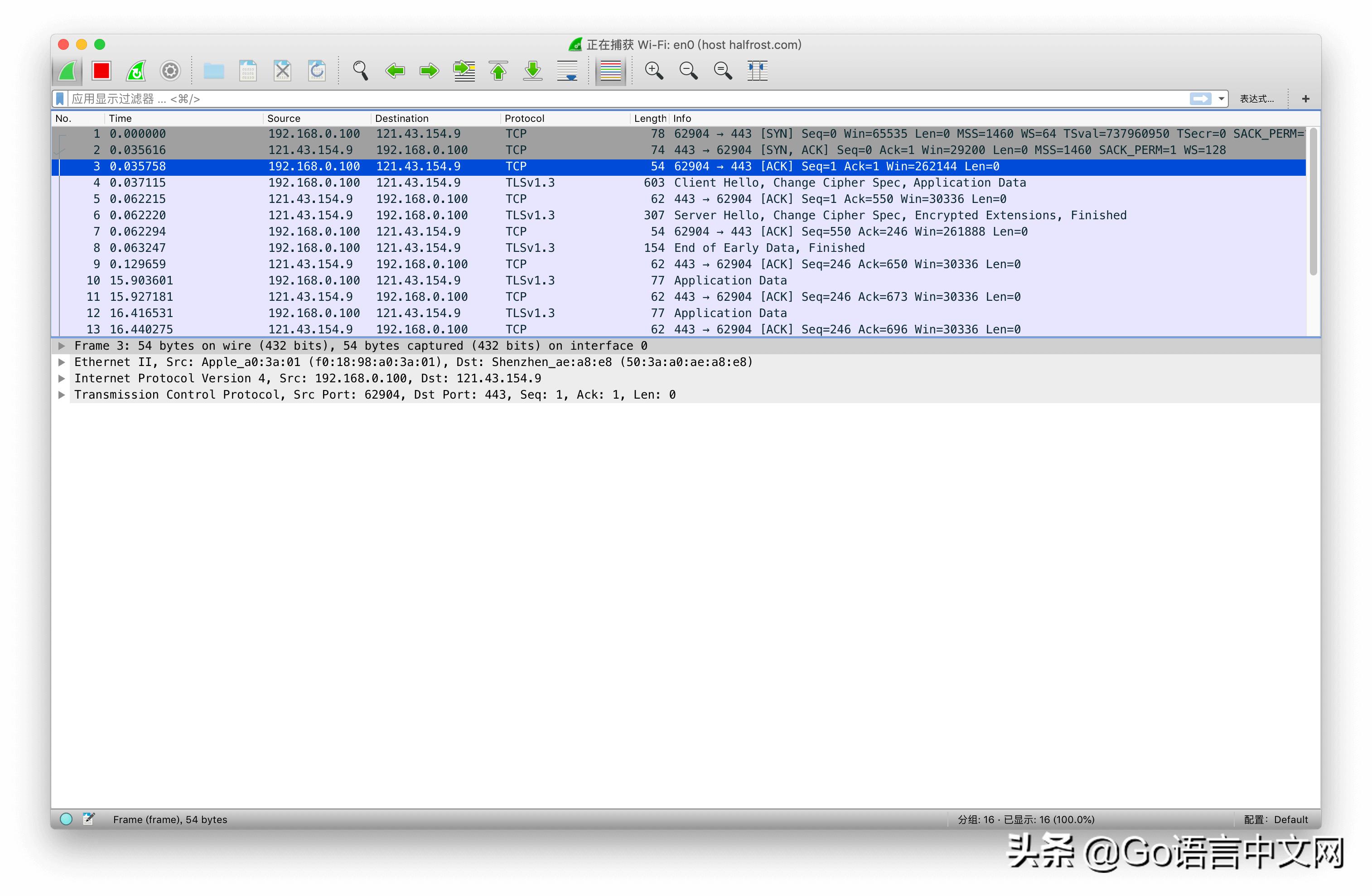

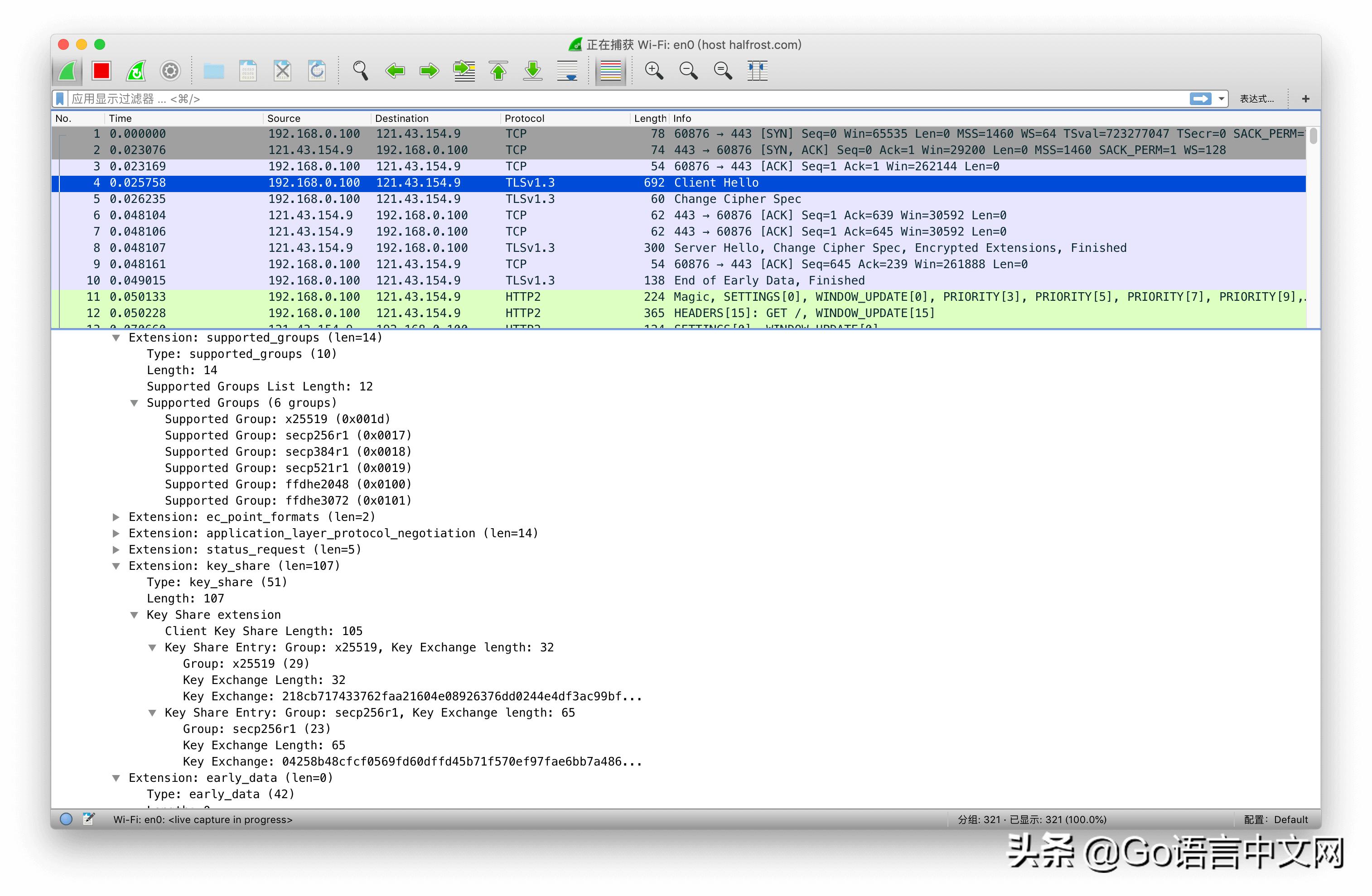

先来看看支持 0-RTT 的 Firefox Nightly 抓到的包是怎么样的。

tls握手流程,tls握手过程

可以发现整个会话恢复过程满足了 0-RTT 的条件，所以 0-RTT 开启成功。

在用 OpenSSL 的 Client 来测试测试 0-RTT。

先将必要参数导出来，比如协商的密钥和 session 信息。

$ openssl s_client -connect halfrost.com:443 -tls1_3 -keylogfile=/Users/ydz/Documents/sslkeylog.log -sess_out=/Users/ydz/Documents/tls13.sess

输出如下:

CONNECTED(00000006)
depth=1 C = US, O = Let’s Encrypt, CN = Let’s Encrypt Authority X3
verify error:num=20:unable to get local issuer certificate
---
Certificate chain
 0 s:CN = halfrost.com
 i:C = US, O = Let’s Encrypt, CN = Let’s Encrypt Authority X3
 1 s:C = US, O = Let’s Encrypt, CN = Let’s Encrypt Authority X3
 i:O = Digital Signature Trust Co., CN = DST Root CA X3
 2 s:C = US, O = Let’s Encrypt, CN = Let’s Encrypt Authority X3
 i:O = Digital Signature Trust Co., CN = DST Root CA X3
---
Server certificate
-----BEGIN CERTIFICATE-----
MIIEljCCA36gAwIBAgISA9VdA6rPN6mIzBxEPL/3iAICMA0GCSqGSIb3DQEBCwUA
MEoxCzAJBgNVBAYTAlVTMRYwFAYDVQQKEw1MZXQncyBFbmNyeXB0MSMwIQYDVQQD
ExpMZXQncyBFbmNyeXB0IEF1dGhvcml0eSBYMzAeFw0xOTAyMTAwMTQxMjJaFw0x
OTA1MTEwMTQxMjJaMBcxFTATBgNVBAMTDGhhbGZyb3N0LmNvbTBZMBMGByqGSM49
AgEGCCqGSM49AwEHA0IABA7sYzIwq29BkT1mQ2TSZRPe34BlnuqN65xoLY+A87M8
PpblV0IvNyj4ZdcgiSmSZffocVF6wzck6TmsQ/j2/sujggJyMIICbjAOBgNVHQ8B
Af8EBAMCB4AwHQYDVR0lBBYwFAYIKwYBBQUHAwEGCCsGAQUFBwMCMAwGA1UdEwEB
/wQCMAAwHQYDVR0OBBYEFOD4YIpf+PkD1Jvy+eayPn0csEi/MB8GA1UdIwQYMBaA
FKhKamMEfd265tE5t6ZFZe/zqOyhMG8GCCsGAQUFBwEBBGMwYTAuBggrBgEFBQcw
AYYiaHR0cDovL29jc3AuaW50LXgzLmxldHNlbmNyeXB0Lm9yZzAvBggrBgEFBQcw
AoYjaHR0cDovL2NlcnQuaW50LXgzLmxldHNlbmNyeXB0Lm9yZy8wKQYDVR0RBCIw
IIIMaGFsZnJv\ghfhjghjjbmd3cuaGFsZnJvc3QuY29tMEwGA1UdIARFMEMwCAYG
Z4EMAQIBMDcGCysGAQQBgt8TAQEBMCgwJgYIKwYBBQUHAgEWGmh0dHA6Ly9jcHMu
bGV0c2VuY3J5cHQub3JnMIIBAwYKKwYBBAHWeQIEAgSB9ASB8QDvAHUA4mlLribo
6UAJ6IYbtjuD1D7n/nSI+6SPKJMBnd3x2/4AAAFo1UfZTgAABAMARjBEAiAsXJLC
A5uO2R926Dba3fZpV/zvzG9tCPVtTKAeso5bAwIgMXoLRtLqhG5bEcXIpGXJcrd0
6S8tbUdS9YRAIWpMX1oAdgApPFGWVMg5ZbqqUPxYB9S3b79Yeily3KTDDPTlRUf0
eAAAAWjVR9lQAAAEAwBHMEUCIHv6NJ9MWMiL+AHxU8ilL3APMmPkUcc03SjBiDaW
Vm6JAiEA5YF/XHKuYH0S0+mqfB+YdT0FIey9wFQObkR4/Qvzla4wDQYJKoZIhvcN
AQELBQADggEBAHU7a+EgzdhrsyD+2ch7AGD1n1TjDfdxkEjmoitN0Tjh4q3jP/IK
7FPs0LBsDRusmtJVK3gZQc9cTEy/om86VQtcnV0LhK83GnFUIuLTEzeTZmnz6Qbs
3KznprZH0DRUbfpmZsDNIfBEOUOXiBR4DpLd3tPVfRkQowmO6o39vM4UOGlB0zIA
g977q97IT6wS9BCEiGmuF0HSjpLfiPhTy9bpl2VGcJVpIy2TS+d4+JWRI7K5BFSz
ncGDzHJ+zGsx4wS+dxuiwaS9hw4c0FG2V4kMFnA+orAa/oTnfwFlRIehTbDBO+rN
TNtjm4yh63M9gInoQEI1REl2EkGcWug6Ijs=
-----END CERTIFICATE-----
subject=CN = halfrost.com
issuer=C = US, O = Let’s Encrypt, CN = Let’s Encrypt Authority X3
---
No client certificate CA names sent
Peer signing digest: SHA256
Peer signature type: ECDSA
Server Temp Key: X25519, 253 bits
---
SSL handshake has read 3912 bytes and written 316 bytes
Verification error: unable to get local issuer certificate
---
New, TLSv1.3, Cipher is TLS_AES_256_GCM_SHA384
Server public key is 256 bit
Secure Renegotiation IS NOT supported
Compression: NONE
Expansion: NONE
No ALPN negotiated
Early data was not sent
Verify return code: 20 (unable to get local issuer certificate)
---
---
Post-Handshake New Session Ticket arrived:
SSL-Session:
 Protocol : TLSv1.3
 Cipher : TLS_AES_256_GCM_SHA384
 Session-ID: DECE5063ABC2D1162A5E767C55083FDFFA6A86B64082FE3AD990A213AE
 Session-ID-ctx:
 Resumption PSK: EACCC93ACB3DC420DF5027BEC576EE130D11BF546463034C1BB92B54806057E0C9F5C3DB557AD10D425E
 PSK identity: None
 PSK identity hint: None
 SRP username: None
 TLS session ticket lifetime hint: 86400 (seconds)
 TLS session ticket:
 0000 - 0b 8d e5 44 b2 62 71 9d-f9 0a ec da f0 d0 6a 0b ...D.bq.......j.
 0010 - 97 5d 63 21 ea 1e 8a 69-01 52 a9 0a 19 bf 5c a3 .]c!...i.R....\.
 0020 - 67 45 a3 a0 28 65 ea 9c-c8 d4 cf df 5d c5 5a be gE..(e......].Z.
 0030 - 32 45 0d 1e af f7 32 67-4a d8 66 cb b6 cb c8 0e 2E....QgJ.f.....
 0040 - 6b b8 53 a8 d2 d4 4b 7b-cc a6 cb 52 39 61 20 6d k.S...K{...R9a m
 0050 - 75 f8 cb 43 11 1d 58 a2-de 2b 74 b0 ca 70 a2 9c u..C..X..+t..p..
 0060 - 85 6b 1a 00 9a f1 bd 9b-8c b4 5a 41 aa 4b 64 5d .k........ZA.Kd]
 0070 - 5a 48 23 a6 10 49 4f 61-c9 57 74 f4 56 50 83 1a ZH#..IOa.Wt.VP..
 0080 - 1b 74 6c ea 09 99 42 f5-d6 3c 6d 4f 5b 98 ca b3 .tl...B..<mO....
 0090 - c7 72 56 5c 6c 67 71 77-8d 68 f7 54 e5 e3 7b d3 .rV\lgqw.h.T..{.
 00a0 - 24 ff 42 0c 3f 12 27 42-7f 9e 0a 4c c2 79 60 45 $.B.?.’B...L.y`E
 00b0 - 2d 77 a2 c8 2f f5 85 34-fa ce 79 ee 0b ea 00 c1 -w../..4..y.....
 00c0 - 74 33 f0 6c af 7a 1a 55-f8 35 bd 5e 49 66 6f 06 t3.l.z.U.5.^Ifo.
 00d0 - c6 38 ed a6 82 e2 c8 77-99 b7 34 9a 4a 9a 31 40 .8.....w..4.J.1@
 00e0 - f1 93 a0 94 7f 1e 8d e0-54 29 dc e3 6f 5c 93 21 ........T)..o\.!
 Start Time: 1549886406
 Timeout : 7200 (sec)
 Verify return code: 20 (unable to get local issuer certificate)
 Extended master secret: no
 Max Early Data: 16384
---
read R BLOCK
---
Post-Handshake New Session Ticket arrived:
SSL-Session:
 Protocol : TLSv1.3
 Cipher : TLS_AES_256_GCM_SHA384
 Session-ID: B7E28DE5DF2C95F2E3DE43732E4F9A45A8943ED3856B73CAB5E7260E7
 Session-ID-ctx:
 Resumption PSK: BF2BA2304BEB2B948F7BF6617D0KDRNFB9CD5466DEC1EB9697D2543B7BB913BC7854359D7F5DF7559D67
 PSK identity: None
 PSK identity hint: None
 SRP username: None
 TLS session ticket lifetime hint: 86400 (seconds)
 TLS session ticket:
 0000 - 0b 8d e5 44 b2 62 71 9d-f9 0a ec da f0 d0 6a 0b ...D.bq.......j.
 0010 - b4 9f cc 17 63 9a 70 c8-63 f8 2e c4 9f d4 a1 f8 ....c.p.c.......
 0020 - 22 34 22 03 d0 f9 78 66-a0 d4 2f 62 53 d3 d8 e3 "4"...xf../bS...
 0030 - 55 2c a5 7c 0b 19 b3 fc-77 55 8c de 0b 2d 00 bd U,.|....wUL..-..
 0040 - b8 fa 2e 00 30 78 c8 dc-35 14 d3 61 f0 69 38 59 ...%0x..5..a.i8Y
 0050 - ee 2a 75 7e 50 34 3f e3-25 04 71 1c 6e c9 c8 20 .*u~P4?.%.q.n..
 0060 - d7 4e 44 b3 69 56 50 23-38 c2 f1 1e ac 10 a7 ff .ND.iVP#8.......
 0070 - 96 cf fe ff 4d 07 7e 08-2d 37 49 78 ab 1d 78 6e ....M.~.-7Ix..xn
 0080 - 62 4b 99 e7 37 03 3e a2-89 de 61 48 a1 c5 77 18 bK..7.>...aH..w.
 0090 - 6f 1c 95 8a 0d 1d 17 68-88 8a 01 5b f0 dc ea 06 o......h...[....
 00a0 - 98 dc 7e 94 f8 ef 4a 72-ff ba e5 03 07 c7 3d d0 ..~...Jr......=.
 00b0 - c8 91 a6 ae 9a df 92 25-05 63 77 03 b0 bc b4 ab .......%.c......
 00c0 - 36 cb 0f 8c 5d ec 58 65-7c 97 2a 30 57 4a 96 b9 6...].Xe|.*0WJ..
 00d0 - 60 21 12 76 77 4c 6d 0d-12 0c 50 cc f5 da 54 4e `!.vwLm...P...TN
 00e0 - 4b 27 5f 1b dd 11 b1 8d-7f e0 37 43 34 a3 88 34 K’_.......7C4..4
 Start Time: 1549886406
 Timeout : 7200 (sec)
 Verify return code: 20 (unable to get local issuer certificate)
 Extended master secret: no
 Max Early Data: 16384
---
read R BLOCK

接下来在复用刚刚的连接，命令如下:

$ openssl s_client -connect halfrost.com:443 -tls1_3 -keylogfile=/Users/ydz/Documents/sslkeylog.log -sess_in=/Users/ydz/Documents/tls13.sess -early_data=/Users/ydz/Documents/req.txt

req.txt 里面只是简单的写一个 GET 请求:

GET / HTTP/1.1
HOST: halfrost.com
Early-Data: 657567765

执行 s_client 以后，输出如下:

CONNECTED(00000006)
---
Server certificate
-----BEGIN CERTIFICATE-----
MIIElzCCA3+gAwIBAgISA604VEs+7Wwch5cNQDshC4t+MA0GCSqGSIb3DQEBCwUA
MEoxCzAJBgNVBAYTAlVTMRYwFAYDVQQKEw1MZXQncyBFbmNyeXB0MSMwIQYDVQQD
ExpMZXQncyBFbmNyeXB0IEF1dGhvcml0eSBYMzAeFw0xODEyMDgxMzQzMzhaFw0x
OTAzMDgxMzQzMzhaMBcxFTATBgNVBAMTDGhhbGZyb3N0LmNvbTBZMBMGByqGSM49
AgEGCCqGSM49AwEHA0IABA7sYzIwq29BkT1mQ2TSZRPe34BlnuqN65xoLY+A87M8
PpblV0IvNyj4ZdcgiSmSZffocVF6wzck6TmsQ/j2/sujggJzMIICbzAOBgNVHQ8B
Af8EBAMCB4AwHQYDVR0lBBYwFAYIKwYBBQUHAwEGCCsGAQUFBwMCMAwGA1UdEwEB
/wQCMAAwHQYDVR0OBBYEFOD4YIpf+PkD1Jvy+eayPn0csEi/MB8GA1UdIwQYMBaA
FKhKamMEfd265tE5t6ZFZe/zqOyhMG8GCCsGAQUFBwEBBGMwYTAuBggrBgEFBQcw
AYYiaHR0cDovL29jc3AuaW50LXgzLmxldHNlbmNyeXB0Lm9yZzAvBggrBgEFBQcw
AoYjaHR0cDovL2NlcnQuaW50LXgzLmxldHNlbmNyeXB0Lm9yZy8wKQYDVR0RBCIw
IIIMaGFsZnJvc3QuY29tghB3d3cuaGFsZnJvc3QuY29tMEwGA1UdIARFMEMwCAYG
Z4EMAQIBMDcGCysGAQQBgt8TAQEBMCgwJgYIKwYBBQUHAgEWGmh0dHA6Ly9jcHMu
bGV0c2VuY3J5cHQub3JnMIIBBAYKKwYBBAHWeQIEAgSB9QSB8gDwAHUA4mlLribo
73qkwe6lN9vZWu1dJV8+Q41cFLGYMJhDD56x7QIgL+V6g1CQst9UDXobdkAEnjah
KiJWihr/Qn3plzgzjiIAdwApPFGWVMg5ZbqqUPxYB9S3b79Yeily3KTDDPTlRUf0
eAAAAWeORhq2AAAEAwBIMEYCIQD1Mf1GtmegyTqIu0S3Q4afNDt0srIFyrtROtn0
jQAV1gIhAJwXIGyMj87kjHtRc/mHJOOCZRSUvoasvWrytCv2dPwXMA0GCSqGSIb3
DQEBCwUAA4IBAQB3sC7jKVGHR8MnAOWnECO/V5Z4oBqbahogwyhOSrbxuutijhyk
8kb3A73Q++Ey150Y+hlNUQStmG9JBGg9pyLG2Yug9p5L13a6VrNaL1VQ1Dq6YgS5
5J8ElsalUgr+9jvTJesdYzfXPdsc8IK67tBXhukqc0/cT3I1QHNwAVru/AKWrkne
H4AcadSeLGe5he2X9OV3JJg+gb/vE90UaVmqwUuSGMzluyBXPMuznTa/+7+31vWV
Q8aWE32X+E5qHSyeLU808mZHYjvKHvuDnNNu6I0KlNcVJf1s0jOQOjgo7hIP/OR4
OlW6ywk07IupV4w07xykP1/tWBsSCviXECcZ
-----END CERTIFICATE-----
subject=CN = halfrost.com
issuer=C = US, O = Let’s Encrypt, CN = Let’s Encrypt Authority X3
---
No client certificate CA names sent
Server Temp Key: X25519, 253 bits
---
SSL handshake has read 245 bytes and written 649 bytes
Verification error: unable to get local issuer certificate
---
Reused, TLSv1.3, Cipher is TLS_AES_256_GCM_SHA384
Server public key is 256 bit
Secure Renegotiation IS NOT supported
Compression: NONE
Expansion: NONE
No ALPN negotiated
Early data was accepted
Verify return code: 20 (unable to get local issuer certificate)
---

从输出中可以看到 Early data was accepted。这个时候转到 wireshark，看抓到的包是怎么样的。

tls握手流程,tls握手过程

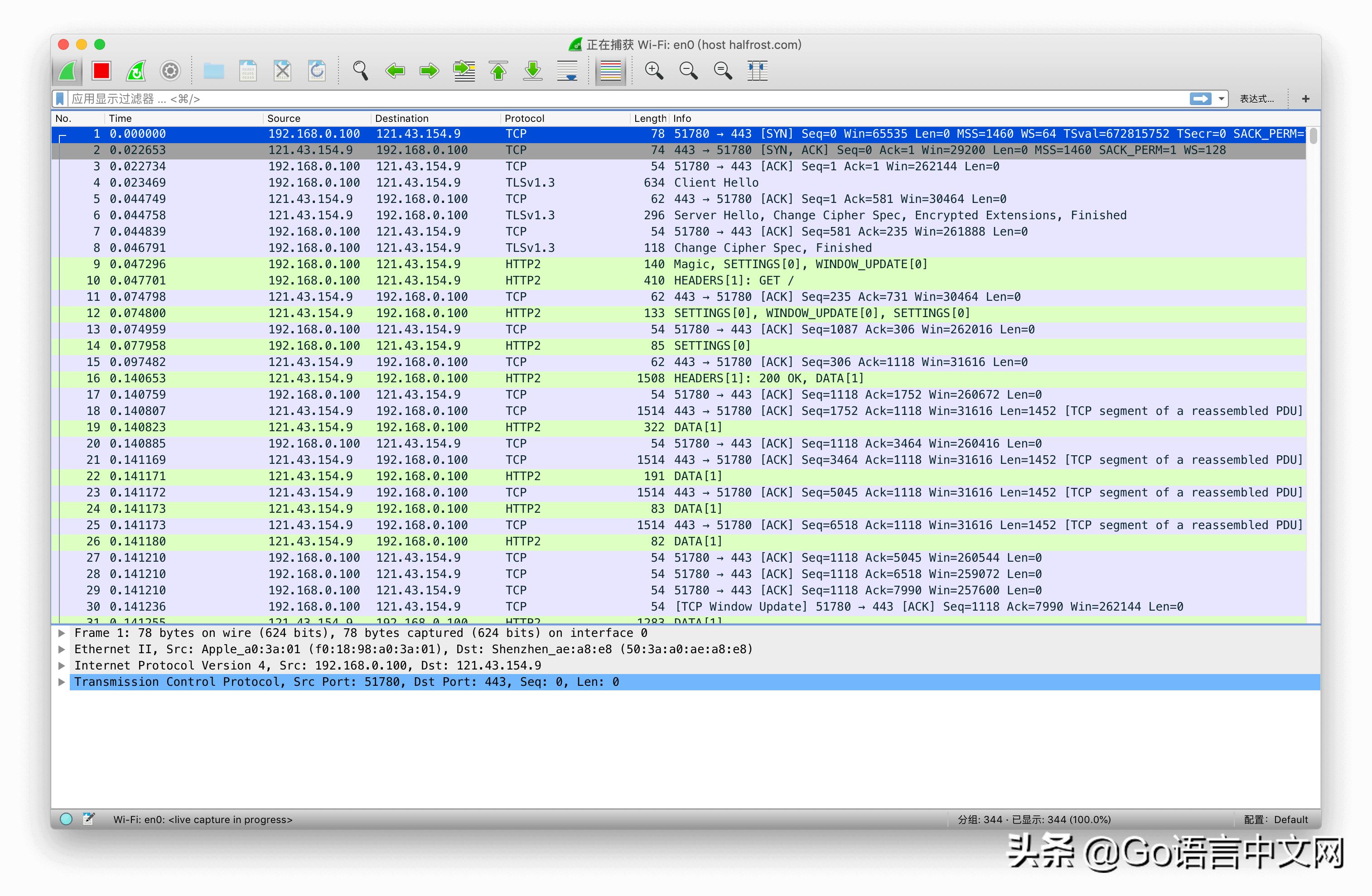

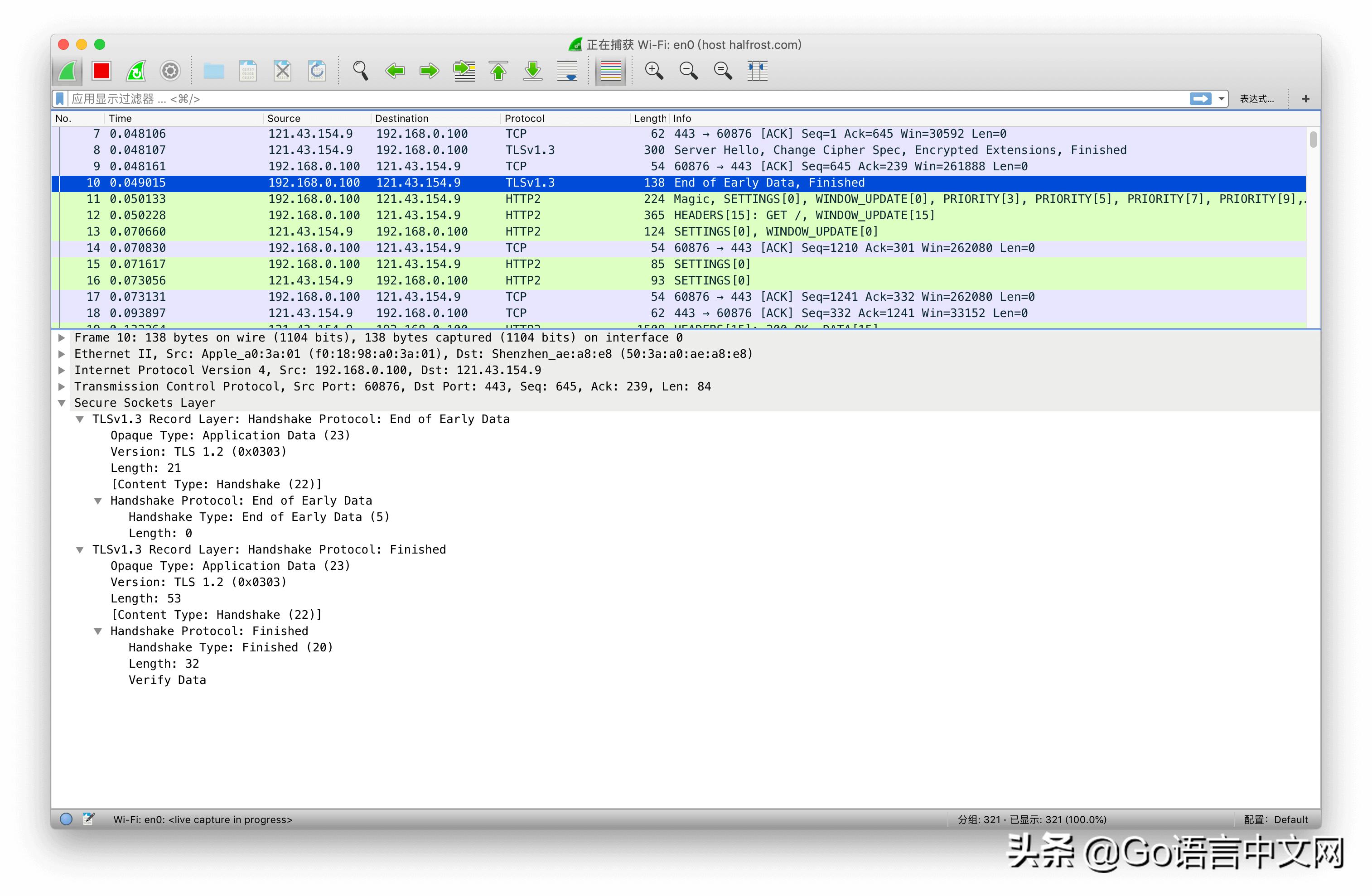

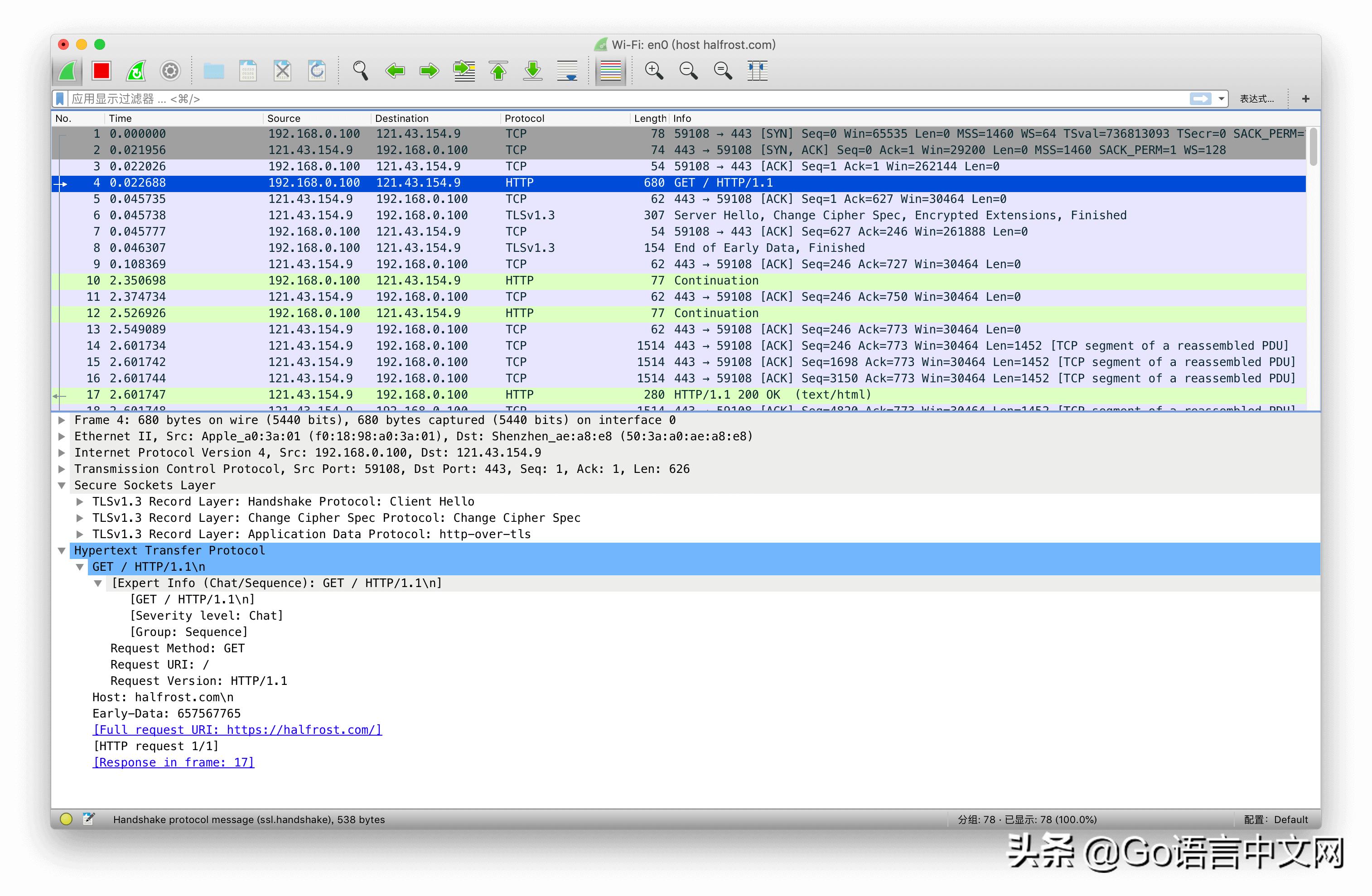

可以看到 Client 在 ClientHello 之后，就立即发送了 Application Data。

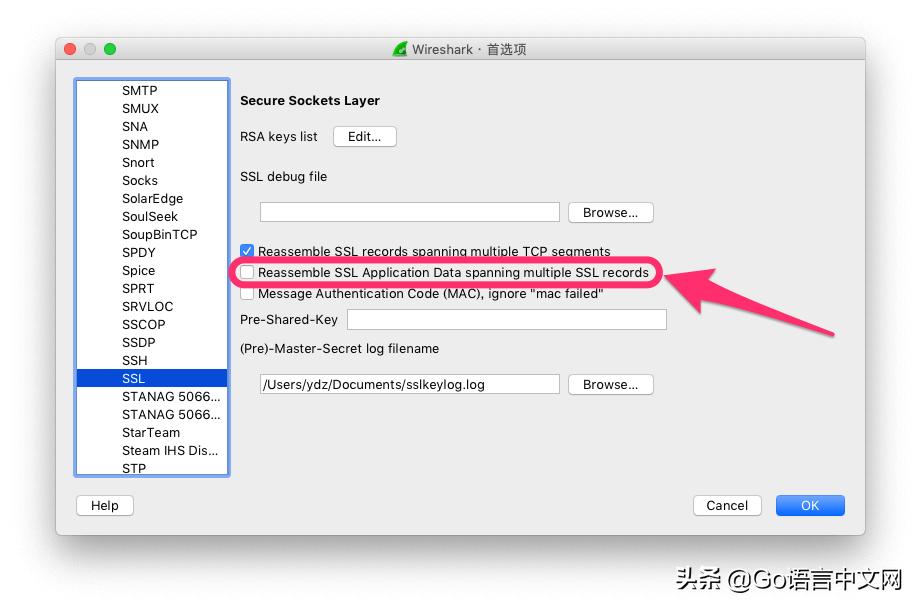

在 wireshark 中首选项，把下图中的勾去掉。

tls握手流程,tls握手过程

配置生效以后，可以看到 Application Data 里面的请求了。

tls握手流程,tls握手过程

普通的 GET 请求中 header 中带了 Early-Data 的值。这个值就会传给 Server 处理了。

十一. TLS 1.3 的状态机

TLS 1.3 相对 TLS 1.2 握手流程发生了巨大的变化，所以状态机也发生了巨大的变化。下面放 2 张状态流转图，最为总结，对应的也是本篇文章的精华。

 START <----+
 Send ClientHello | | Recv HelloRetryRequest
 [K_send = early data] | |
 v |
 / WAIT_SH ----+
 | | Recv ServerHello
 | | K_recv = handshake
 Can | V
 send | WAIT_EE
 early | | Recv EncryptedExtensions
 data | +--------+--------+
 | Using | | Using certificate
 | PSK | v
 | | WAIT_CERT_CR
 | | Recv | | Recv CertificateRequest
 | | Certificate | v
 | | | WAIT_CERT
 | | | | Recv Certificate
 | | v v
 | | WAIT_CV
 | | | Recv CertificateVerify
 | +> WAIT_FINISHED <+
 | | Recv Finished
 \ | [Send EndOfEarlyData]
 | K_send = handshake
 | [Send Certificate [+ CertificateVerify]]
 Can send | Send Finished
 app data --> | K_send = K_recv = application
 after here v
 CONNECTED

这图是 Client 在握手流程上的状态机。如果读者还不清楚中间的某个步骤，可以对照上文中的内容查缺补漏。

 START <-----+
 Recv ClientHello | | Send HelloRetryRequest
 v |
 RECVD_CH ----+
 | Select parameters
 v
 NEGOTIATED
 | Send ServerHello
 | K_send = handshake
 | Send EncryptedExtensions
 | [Send CertificateRequest]
 Can send | [Send Certificate + CertificateVerify]
 app data | Send Finished
 after --> | K_send = application
 here +--------+--------+
 No 0-RTT | | 0-RTT
 | |
 K_recv = handshake | | K_recv = early data
 [Skip decrypt errors] | +------> WAIT_EOED -+
 | | Recv | | Recv EndOfEarlyData
 | | early data | | K_recv = handshake
 | +------------+ |
 | |
 +> WAIT_FLIGHT2 <--------+
 |
 +--------+--------+
 No auth | | Client auth
 | |
 | v
 | WAIT_CERT
 | Recv | | Recv Certificate
 | empty | v
 | Certificate | WAIT_CV
 | | | Recv
 | v | CertificateVerify
 +-> WAIT_FINISHED <---+
 | Recv Finished
 | K_recv = application
 v
 CONNECTED

这图是 Server 在握手流程上的状态机。如果读者还不清楚中间的某个步骤，可以对照上文中的内容查缺补漏。读者能理解透上面这 2 张状态机，TLS 1.3 也就掌握透彻了。

全文完。

Reference：
RFC 8466
TLS1.3 draft-28

GitHub Repo：Halfrost-Field

Follow: halfrost · GitHub

Source: https://halfrost.com/HTTPS_handshake/

本文作者：于德志 (@halfrost)，原创授权发布

tls四次握手 (tls握手分为哪些阶段)

十. 直观感受 TLS 1.3 会话恢复

十一. TLS 1.3 的状态机
