首先要解析Mapper.xml文件需要，在configuration中配置mapper文件的路径。配置的路径可以是resouce、url或者是class、package 。配置为 resouce、url 以流资源的方式解析mapper文件，class、package 另一种方式，通过MapperProxy代理来完成。
XmlConfigBuilder 类中mapperElement方法就是以不同的方式解析：
private void mapperElement(XNode parent) throws Exception {
if (parent != null) {
for (XNode child : parent.getChildren()) {
//扫描包下面的类
if ("package".equals(child.getName())) {
String mapperPackage = child.getStringAttribute("name");
configuration.addMappers(mapperPackage);
} else {
String resource = child.getStringAttribute("resource");
String url = child.getStringAttribute("url");
String mapperClass = child.getStringAttribute("class");
if (resource != null && url == null && mapperClass == null) {
//resource 以流方式读取
ErrorContext.instance().resource(resource);
try(InputStream inputStream = Resources.getResourceAsStream(resource)) {
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource, configuration.getSqlFragments());
mapperParser.parse();
}
} else if (resource == null && url != null && mapperClass == null) {
// url 网络流方式读取
ErrorContext.instance().resource(url);
try(InputStream inputStream = Resources.getUrlAsStream(url)){
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url, configuration.getSqlFragments());
mapperParser.parse();
}
} else if (resource == null && url == null && mapperClass != null) {
// 以类的方式
Class<?> mapperInterface = Resources.classForName(mapperClass);
configuration.addMapper(mapperInterface);
} else {
throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
}
}
}
}
}
Mybatis 以流资源方式解析mapper.xml文件
通俗一点的意思就是：直接获取 mapper.xml文件进行解析。
XmlMapperBuilder 中的 parse 方法实现解析：
第一步解析Mapper标签:
public void parse() {
//判断资源是否以及被加载过了
if (!configuration.isResourceLoaded(resource)) {
// 解析Mapper 标签
configurationElement(parser.evalNode("/mapper"));
//将资源路径加载到configuration的成员中 ，防止重复加载mapper
//resource 全路径名
configuration.addLoadedResource(resource);
// 将mapper 绑定到 命名空间绑定
bindMapperForNamespace();
}
//resultMap 、CacheRef、statement 绑定并且解析
parsePendingResultMaps();
parsePendingCacheRefs();
parsePendingStatements();
}
第二步解析Mapper标签中的子标签：
private void configurationElement(XNode context) {
try {
//获取命名空间
String namespace = context.getStringAttribute("namespace");
if (namespace == null || namespace.isEmpty()) {
throw new BuilderException("Mapper's namespace cannot be empty");
}
//MapperBuilderAssistant对象设置命名空间，
//bindMapperForNamespace()方法中会用到
builderAssistant.setCurrentNamespace(namespace);
//引用其它命名空间的缓存配置
cacheRefElement(context.evalNode("cache-ref"));
//命名空间的缓存配置
cacheElement(context.evalNode("cache"));
//此元素已被废弃，并可能在将来被移除！请使用行内参数映射
parameterMapElement(context.evalNodes("/mapper/parameterMap"));
//结果集映射
resultMapElements(context.evalNodes("/mapper/resultMap"));
//可重用语句块
sqlElement(context.evalNodes("/mapper/sql"));
// curd操作
buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
} catch (Exception e) {
throw new BuilderException("Error parsing Mapper XML. The XML location is '" + resource + "'. Cause: " + e, e);
}
}
第三部 查看Mapper子标签主要生成的对象：
select|insert|update|delete 标签 生成 XMLStatementBuilder对象进行封装；
private void buildStatementFromContext(List<XNode> list) {
if (configuration.getDatabaseId() != null) {
buildStatementFromContext(list, configuration.getDatabaseId());
}
buildStatementFromContext(list, null);
}
private void buildStatementFromContext(List<XNode> list, String requiredDatabaseId) {
for (XNode context : list) {
//为每个 crud 标签创建一个 XMLStatementBuilder对象
final XMLStatementBuilder statementParser = new XMLStatementBuilder(configuration, builderAssistant, context, requiredDatabaseId);
try {
statementParser.parseStatementNode();
} catch (IncompleteElementException e) {
configuration.addIncompleteStatement(statementParser);
}
}
}
XMLStatementBuilder对象调用parseStatementNode()方法：
public void parseStatementNode() {
//获取节点 key
String id = context.getStringAttribute("id");
String databaseId = context.getStringAttribute("databaseId");
if (!databaseIdMatchesCurrent(id, databaseId, this.requiredDatabaseId)) {
return;
}
//节点名称
String nodeName = context.getNode().getNodeName();
// SqlCommandType 数据类型是 UNKNOWN, INSERT, UPDATE, DELETE, SELECT, FLUSH
SqlCommandType sqlCommandType = SqlCommandType.valueOf(nodeName.toUpperCase(Locale.ENGLISH));
//是否是查询
boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
//缓存刷新策略 flushCache 设置值 以设置的值为依据。
//flushCache 没有设置值 ，查询返回FALSE，非查询true
boolean flushCache = context.getBooleanAttribute("flushCache", !isSelect);
//是否使用缓存 useCache 设置值 以设置的值为准
//useCache没有设置值，查询返回TRUE，非查询返回FALSE
boolean useCache = context.getBooleanAttribute("useCache", isSelect);
//设置仅针对嵌套结果 select 语句：如果为 true，将会假设包含了嵌套结果集或是分组，
//当返回一个主结果行时，就不会产生对前面结果集的引用。
boolean resultOrdered = context.getBooleanAttribute("resultOrdered", false);
// Include Fragments before parsing
// 分析是否有 SQL片段引用
XMLIncludeTransformer includeParser = new XMLIncludeTransformer(configuration, builderAssistant);
includeParser.applyIncludes(context.getNode());
//入参数据类型
String parameterType = context.getStringAttribute("parameterType");
Class<?> parameterTypeClass = resolveClass(parameterType);
//指定特定语言， 可以使用 Apache Velocity 作为动态语言，
//更多细节请参考 MyBatis-Velocity 项目。
String lang = context.getStringAttribute("lang");
LanguageDriver langDriver = getLanguageDriver(lang);
// Parse selectKey after includes and remove them.
// 引用sql片段 解析后 解析 selectKey ,然后删除这两个
processSelectKeyNodes(id, parameterTypeClass, langDriver);
// Parse the SQL (pre: <selectKey> and <include> were parsed and removed)
KeyGenerator keyGenerator;
// id + !selectKey
String keyStatementId = id + SelectKeyGenerator.SELECT_KEY_SUFFIX;
keyStatementId = builderAssistant.applyCurrentNamespace(keyStatementId, true);
if (configuration.hasKeyGenerator(keyStatementId)) {
keyGenerator = configuration.getKeyGenerator(keyStatementId);
} else {
keyGenerator = context.getBooleanAttribute("useGeneratedKeys",
configuration.isUseGeneratedKeys() && SqlCommandType.INSERT.equals(sqlCommandType))
? Jdbc3KeyGenerator.INSTANCE : NoKeyGenerator.INSTANCE;
}
// 创建SqlSource
SqlSource sqlSource = langDriver.createSqlSource(configuration, context, parameterTypeClass);
StatementType statementType = StatementType.valueOf(context.getStringAttribute("statementType", StatementType.PREPARED.toString()));
Integer fetchSize = context.getIntAttribute("fetchSize");
Integer timeout = context.getIntAttribute("timeout");
String parameterMap = context.getStringAttribute("parameterMap");
String resultType = context.getStringAttribute("resultType");
Class<?> resultTypeClass = resolveClass(resultType);
String resultMap = context.getStringAttribute("resultMap");
String resultSetType = context.getStringAttribute("resultSetType");
ResultSetType resultSetTypeEnum = resolveResultSetType(resultSetType);
if (resultSetTypeEnum == null) {
resultSetTypeEnum = configuration.getDefaultResultSetType();
}
String keyProperty = context.getStringAttribute("keyProperty");
String keyColumn = context.getStringAttribute("keyColumn");
String resultSets = context.getStringAttribute("resultSets");
builderAssistant.addMappedStatement(id, sqlSource, statementType, sqlCommandType,
fetchSize, timeout, parameterMap, parameterTypeClass, resultMap, resultTypeClass,
resultSetTypeEnum, flushCache, useCache, resultOrdered,
keyGenerator, keyProperty, keyColumn, databaseId, langDriver, resultSets);
}

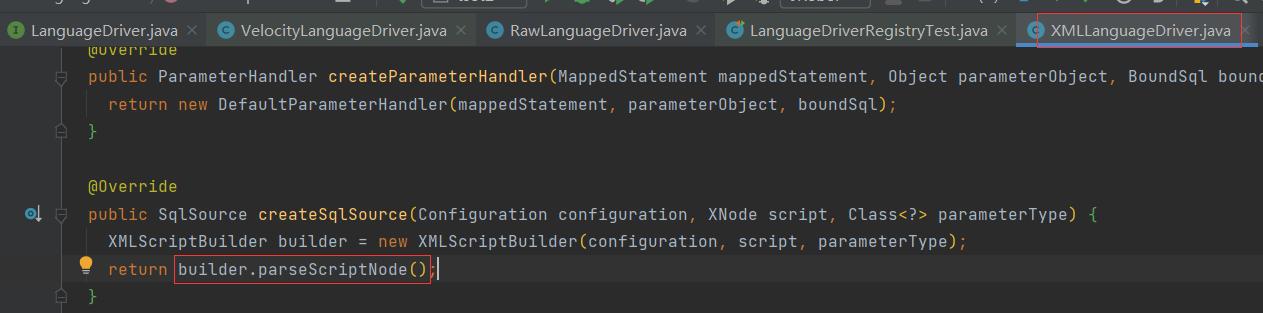

langDriver.createSqlSource(configuration, context, parameterTypeClass)方法创建SqlSocre。createSqlSource方法生成XMLScriptBuilder对象。
XMLScriptBuilder调用parseScriptNode方法生成SQL。
public SqlSource parseScriptNode() {
//该方法中包含是否是动态SQL的判断
MixedSqlNode rootSqlNode = parseDynamicTags(context);
SqlSource sqlSource;
if (isDynamic) {
//动态SQL
sqlSource = new DynamicSqlSource(configuration, rootSqlNode);
} else {
//静态SQL
sqlSource = new RawSqlSource(configuration, rootSqlNode, parameterType);
}
return sqlSource;
}
解析标签并且判断SQL类型（动态|静态）。
protected MixedSqlNode parseDynamicTags(XNode node) {
List<SqlNode> contents = new ArrayList<>();
NodeList children = node.getNode().getChildNodes();
for (int i = 0; i < children.getLength(); i++) {
XNode child = node.newXNode(children.item(i));
// CDATA TEXT
if (child.getNode().getNodeType() == Node.CDATA_SECTION_NODE || child.getNode().getNodeType() == Node.TEXT_NODE) {
String data = child.getStringBody("");
TextSqlNode textSqlNode = new TextSqlNode(data);
// 判断 SQL语句中是否有 ${} GenericTokenParser.createParser
if (textSqlNode.isDynamic()) {
//动态SQL
contents.add(textSqlNode);
isDynamic = true;
} else {
//静态SQL
contents.add(new StaticTextSqlNode(data));
}
} else if (child.getNode().getNodeType() == Node.ELEMENT_NODE) { // issue #628
//当前是元素节点
String nodeName = child.getNode().getNodeName();
// nodeHandlerMap集合中查看是否有对应节点，
//XMLScriptBuilder构造函数初始时加进集合的
NodeHandler handler = nodeHandlerMap.get(nodeName);
if (handler == null) {
throw new BuilderException("Unknown element <" + nodeName + "> in SQL statement.");
}
//node节点处理器，会递归调用，直到没有内层标签
handler.handleNode(child, contents);
//包含 trim|if|choose|set|where|foreach|when|otherwise|bind 都是动态标签
isDynamic = true;
}
}
return new MixedSqlNode(contents);
}
小结：
动态SQL:DynamicSqlSource 只要xml编写的SQL语句中包含 ${}形式的入参,trim|if|where|foreach|set|when|otherwise|bind|choose
静态SQL: RawSqlSource 静态SQL,SQL结构不会变化，只是入参会不同而已。
MixedSqlNode：private final List<SqlNode> contents 本质，就是将xml中的SQL语句根 据标签进行拆分，组装成SqlNode的集合。
SqlSource： 就是 DynamicSqlSource 或者 RawSqlSource其中的一种，而这两个SqlSource的成员中带着 mixedSqlNode对象。本质上SqlSource也是一个SqlNode集合。
Mybatis以Mapper接口方式解析xml文件
就给我一个接口，还要我解析XML文件。xml文件在哪里呀？一定有规则否则，如何加载的到哪？
使用mapper接口进行注册：

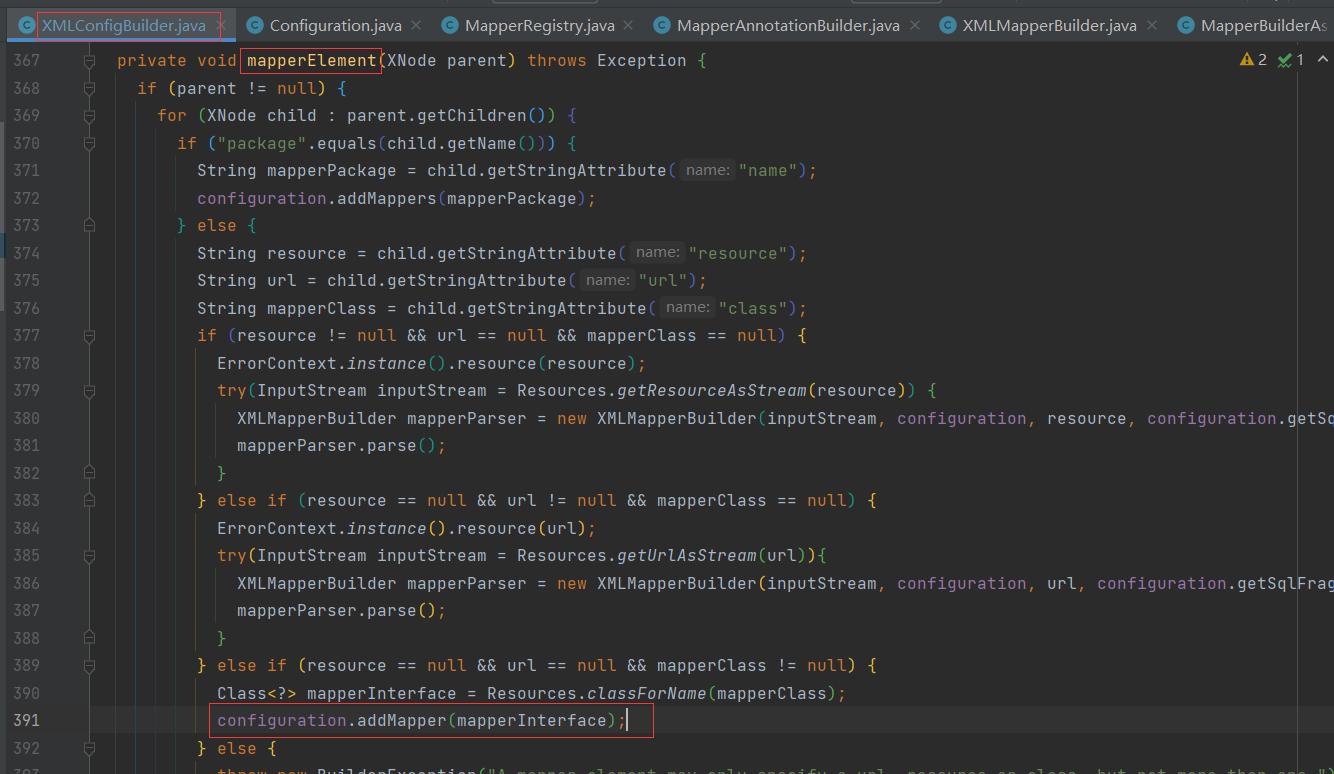

XMLConfigBuilder中mapperElement方法调用configuration.addMapper方法。

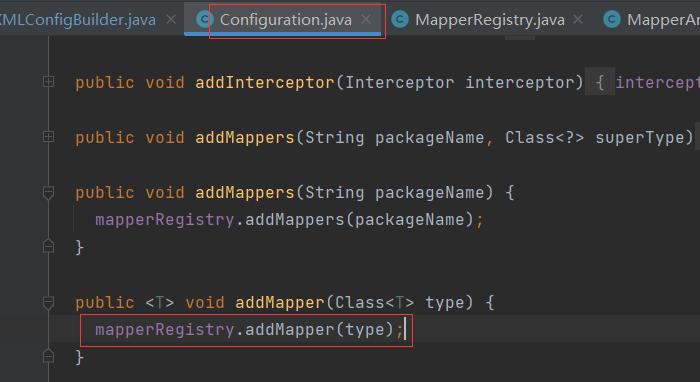

给mapperRegistry成员属性中添加值。
MapperRegister中使用addMapper方法，给成员属性knowMapppers添加一个数据，MapperProxyFactory的接口对象。
public <T> void addMapper(Class<T> type) {
if (type.isInterface()) {
if (hasMapper(type)) {
throw new BindingException("Type " + type + " is already known to the MapperRegistry.");
}
boolean loadCompleted = false;
try {
knownMappers.put(type, new MapperProxyFactory<>(type));
// It's important that the type is added before the parser is run
// otherwise the binding may automatically be attempted by the
// mapper parser. If the type is already known, it won't try.
MapperAnnotationBuilder parser = new MapperAnnotationBuilder(config, type);
parser.parse();
loadCompleted = true;
} finally {
if (!loadCompleted) {
knownMappers.remove(type);
}
}
}
}
MapperAnnotationBuilder 调用 Parse方法，方法中有一个loadXmlResource()。
public void parse() {
String resource = type.toString();
if (!configuration.isResourceLoaded(resource)) {
loadXmlResource();
configuration.addLoadedResource(resource);
assistant.setCurrentNamespace(type.getName());
parseCache();
parseCacheRef();
for (Method method : type.getMethods()) {
if (!canHaveStatement(method)) {
continue;
}
if (getAnnotationWrapper(method, false, Select.class, SelectProvider.class).isPresent()
&& method.getAnnotation(ResultMap.class) == null) {
//解析resultmap
parseResultMap(method);
}
try {
//解析一个方法生成对应的MapperedStatement对象
parseStatement(method);
} catch (IncompleteElementException e) {
configuration.addIncompleteMethod(new MethodResolver(this, method));
}
}
}
//解析方法 （挂起的）
parsePendingMethods();
}
loadXmlResource方法中，把接口 全限定名 替换成文件路径，以及xml结尾。以此为路径查找mapper.xml文件资源。
private void loadXmlResource() {
// Spring may not know the real resource name so we check a flag
// to prevent loading again a resource twice
// this flag is set at XMLMapperBuilder#bindMapperForNamespace
if (!configuration.isResourceLoaded("namespace:" + type.getName())) {
String xmlResource = type.getName().replace('.', '/') + ".xml";
// #1347
InputStream inputStream = type.getResourceAsStream("/" + xmlResource);
if (inputStream == null) {
// Search XML mapper that is not in the module but in the classpath.
try {
inputStream = Resources.getResourceAsStream(type.getClassLoader(), xmlResource);
} catch (IOException e2) {
// ignore, resource is not required
}
}
if (inputStream != null) {
XMLMapperBuilder xmlParser = new XMLMapperBuilder(inputStream, assistant.getConfiguration(), xmlResource, configuration.getSqlFragments(), type.getName());
xmlParser.parse();
}
}
}
小结：
以文件包或者接口的形式，首先给接口生成一个MapperProxyFactory对象，其次再根据接口的全限定名更改为路径再添加xml,以此来查找mapper.xml文件资源。
总之一句话，用接口全限定名找mapper配置文件。
