目标
- 监控接口效率
- 监控接口成功率
- 分析热点服务或热点接口
效果展示

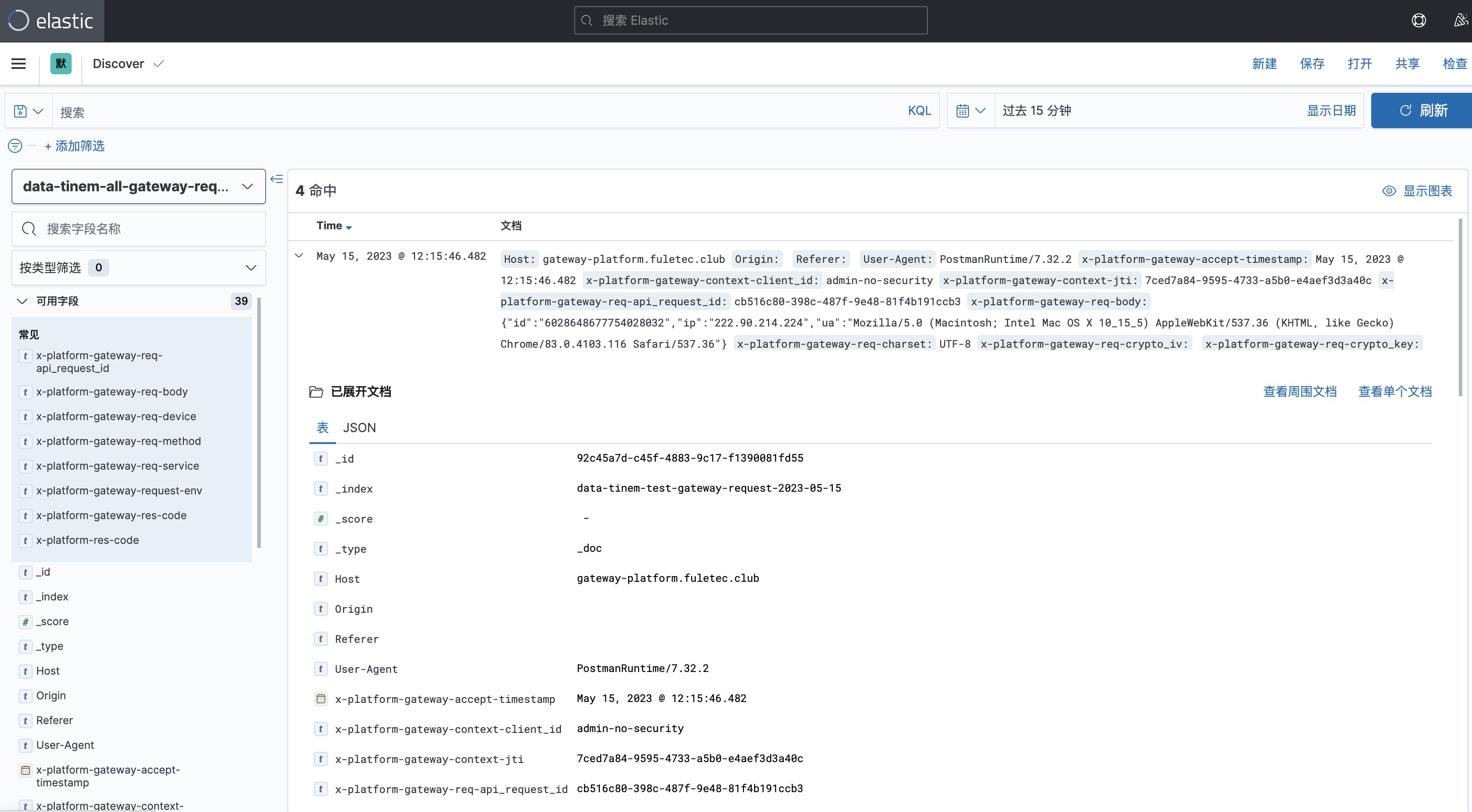

在kibana中查看请求的信息：

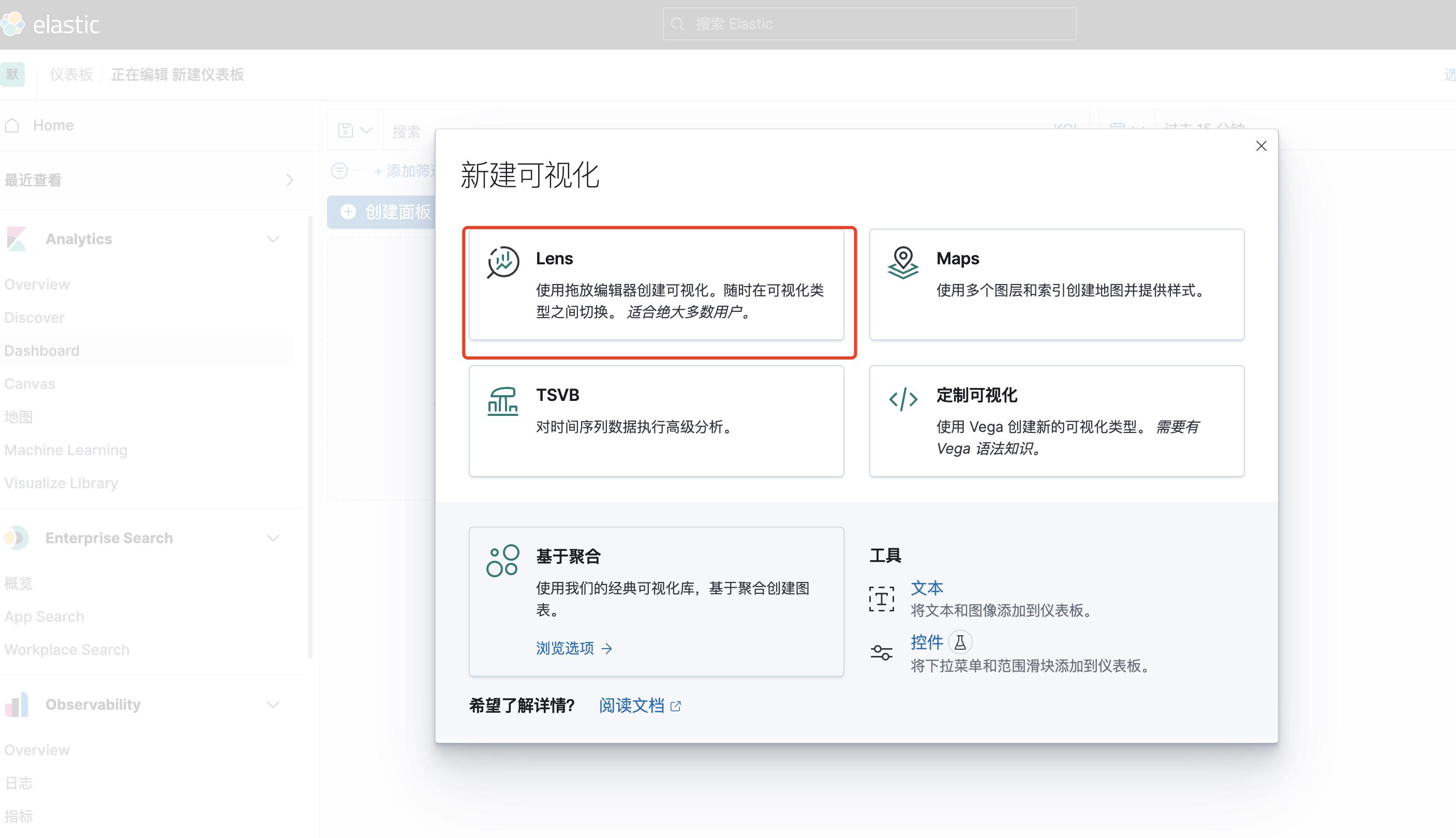

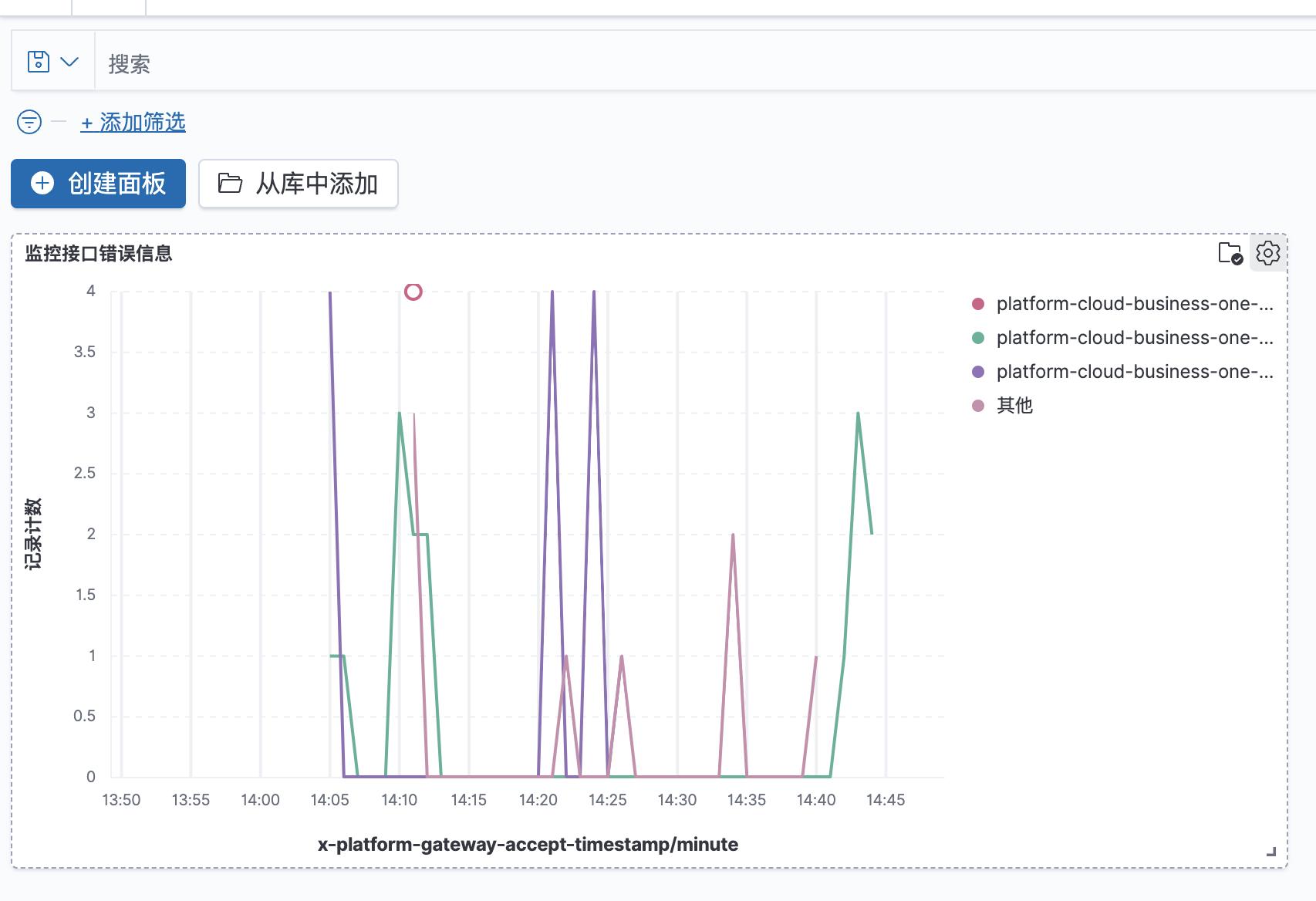

通过kibana的图表功能展示
代码实现
通过两个过滤器来做请求信息的记录，通过网关流水号在redis中存储一个hash的数据结构将我们需要的信息保存起来。在网关处理完成后将流水号插入到redis的一个队列中，由另外一个服务（task）监控redis队列并将hash数据存储到es中。
需要注意：
- 在redis中的hash数据需要设置超时时间防止task服务停止导致redis内存耗尽
- 需要通过es索引模版来生成索引，可以减少es磁盘使用率
- es索引按天创建
- 将请求中的网关流水号设置为es文档id

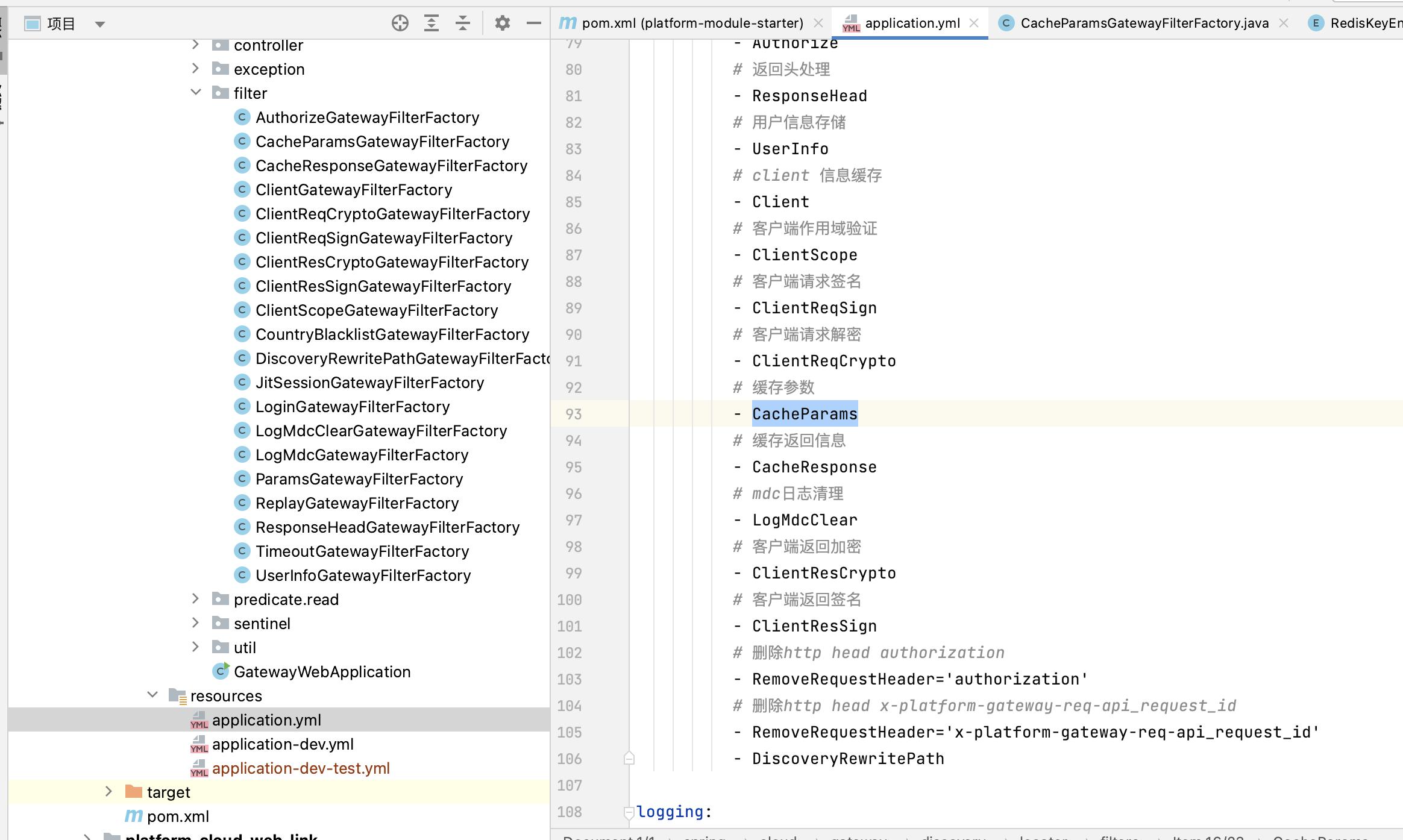

配置文件：
platform-cloud/platform-cloud-web/platform-cloud-web-gateway/src/main/resources/application.yml
CacheParams将请求参数和请求内容存入redis中。
类名：CacheParamsGatewayFilterFactory
文件路径：
platform-cloud/platform-cloud-web/platform-cloud-web-gateway/src/main/java/com/tinem/platform/web/gateway/filter/CacheParamsGatewayFilterFactory.java
/*
* Copyright 2013-2019 the original author or authors.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* https://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package com.tinem.platform.web.gateway.filter;
import cn.hutool.core.util.StrUtil;
import com.google.common.net.HttpHeaders;
import com.tinem.platform.module.pojo.co.GatewayHeadName;
import com.tinem.platform.module.pojo.co.RedisKeyEnum;
import com.tinem.platform.web.gateway.util.GatewayUtil;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.gateway.filter.GatewayFilter;
import org.springframework.cloud.gateway.filter.factory.AbstractGatewayFilterFactory;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.stereotype.Component;
import javax.annotation.Resource;
import java.util.Hashtable;
import java.util.Map;
import java.util.concurrent.TimeUnit;
/**
* GatewayFilter that modifies the respons body.
*/
@Slf4j
@Component
public class CacheParamsGatewayFilterFactory extends
AbstractGatewayFilterFactory<Object> {
@Value("${spring.profiles.active}")
String active;
@Resource
StringRedisTemplate stringRedisTemplate;
@Override
public GatewayFilter apply(Object config) {
return (exchange, chain) -> {
String gatewayRequestId = GatewayUtil.getReq(exchange);
Map<String,String> req = new Hashtable<>(30,1);
// --------浏览器信息 ------------
req.put(HttpHeaders.USER_AGENT, StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst(HttpHeaders.USER_AGENT),""));
req.put(HttpHeaders.ORIGIN,StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst(HttpHeaders.ORIGIN),""));
req.put(HttpHeaders.REFERER,StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst(HttpHeaders.REFERER),""));
req.put(HttpHeaders.HOST,StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst(HttpHeaders.HOST),""));
// ---------cloudflare ------
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_IP,StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst("Cf-Connecting-Ip"),""));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_IP_COUNTRY,StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst("Cf-Ipcountry"),""));
// ---------请求参数缓存 ------
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_TIMESTAMP, String.valueOf(GatewayUtil.getReqTimestamp(exchange)));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_SERVICE,GatewayUtil.getApiService(exchange));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_METHOD,GatewayUtil.getApiMethod(exchange));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_VERSION,StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_VERSION),""));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_API_REQUEST_ID,GatewayUtil.getApiReq(exchange));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_JWT,GatewayUtil.getJwt(exchange));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_CHARSET,StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_CHARSET),""));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_LANG,StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_LANG),""));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_SIGN_TYPE, StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_SIGN_TYPE),""));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_SIGN, StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_SIGN),""));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_CRYPTO_TYPE,StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_CRYPTO_TYPE),""));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_CRYPTO_KEY,StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_CRYPTO_KEY),""));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_CRYPTO_IV,StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_CRYPTO_IV),""));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_DEBUG,StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_DEBUG),""));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_DEVICE,StrUtil.emptyToDefault(exchange.getRequest().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_DEVICE),""));
// ---------网关参数缓存 ------
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQUEST_ID,gatewayRequestId);
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_CONTEXT_ACCEPT_TIMESTAMP,String.valueOf(GatewayUtil.getReqAcceptTimestamp(exchange)));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_CONTEXT_JTI,GatewayUtil.getJit(exchange));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_CONTEXT_CLIENT_ID,GatewayUtil.getClient(exchange));
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_CONTEXT_ENV,active);
String userId = exchange.getAttribute(GatewayHeadName.X_PLATFORM_GATEWAY_CONTEXT_USER_ID);
if(StrUtil.isNotEmpty(userId)){
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_CONTEXT_USER_ID,userId);
}
// ---------请求内容 ------
String requestBody = exchange.getAttribute(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_BODY);
if(StrUtil.isNotBlank(requestBody)){
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_REQ_BODY,requestBody);
}
// ---------将数据保存到redis ------
String key = RedisKeyEnum.gateway_req_info.getKey(gatewayRequestId);
stringRedisTemplate.opsForHash().putAll(key,req);
// ---------设置10分钟后过期 ------
stringRedisTemplate.expire(key,10, TimeUnit.MINUTES);
return chain.filter(exchange);
};
}
}
CacheResponse将请求返回数据和请求的状态码状态信息存储到redis中。
类名：CacheResponseGatewayFilterFactory
文件路径：
platform-cloud/platform-cloud-web/platform-cloud-web-gateway/src/main/java/com/tinem/platform/web/gateway/filter/CacheResponseGatewayFilterFactory.java
/*
* Copyright 2013-2019 the original author or authors.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* https://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package com.tinem.platform.web.gateway.filter;
import cn.hutool.core.util.StrUtil;
import com.alibaba.fastjson.JSON;
import com.tinem.platform.module.pojo.co.GatewayHeadName;
import com.tinem.platform.module.pojo.co.RedisKeyEnum;
import com.tinem.platform.web.gateway.util.GatewayUtil;
import com.tinem.platform.web.gateway.util.MDCUtil;
import lombok.extern.slf4j.Slf4j;
import org.reactivestreams.Publisher;
import org.springframework.cloud.gateway.filter.GatewayFilter;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.NettyWriteResponseFilter;
import org.springframework.cloud.gateway.filter.factory.AbstractGatewayFilterFactory;
import org.springframework.core.Ordered;
import org.springframework.core.io.buffer.DataBuffer;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.http.server.reactive.ServerHttpResponse;
import org.springframework.http.server.reactive.ServerHttpResponseDecorator;
import org.springframework.stereotype.Component;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;
import javax.annotation.Resource;
import java.util.Hashtable;
import java.util.Map;
import java.util.concurrent.TimeUnit;
/**
* GatewayFilter that modifies the respons body.
*/
@Slf4j
@Component
public class CacheResponseGatewayFilterFactory extends
AbstractGatewayFilterFactory<Object> {
@Resource
StringRedisTemplate stringRedisTemplate;
@Override
public GatewayFilter apply(Object config) {
ModifyResponseGatewayFilter gatewayFilter = new ModifyResponseGatewayFilter();
return gatewayFilter;
}
public class ModifyResponseGatewayFilter implements GatewayFilter, Ordered {
@Override
public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
return chain.filter(exchange.mutate().response(decorate(exchange)).build());
}
@SuppressWarnings("unchecked")
ServerHttpResponse decorate(ServerWebExchange exchange) {
return new ServerHttpResponseDecorator(exchange.getResponse()) {
@Override
public Mono<Void> writeWith(Publisher<? extends DataBuffer> body) {
this.cacheResponse(exchange);
return super.writeWith(body);
}
@Override
public Mono<Void> writeAndFlushWith(
Publisher<? extends Publisher<? extends DataBuffer>> body) {
this.cacheResponse(exchange);
return super.writeAndFlushWith(body);
}
private void cacheResponse(ServerWebExchange exchange){
MDCUtil.set(exchange);
String resTimestamp = exchange.getResponse().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_GATEWAY_RES_TIMESTAMP);
String gatewayResCode = exchange.getResponse().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_GATEWAY_RES_CODE);
String gatewayResSuccess = exchange.getResponse().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_GATEWAY_RES_SUCCES);
String gatewayResMessage = exchange.getResponse().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_GATEWAY_RES_MESSAGE);
Map<String,String> req = new Hashtable<>(7,1);
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_RES_TIMESTAMP,resTimestamp);
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_RES_CODE,gatewayResCode);
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_RES_SUCCES,gatewayResSuccess);
req.put(GatewayHeadName.X_PLATFORM_GATEWAY_RES_MESSAGE,gatewayResMessage);
String resCode = exchange.getResponse().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_RES_CODE);
String resSuccess = exchange.getResponse().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_RES_SUCCESS);
String resMessage = exchange.getResponse().getHeaders().getFirst(GatewayHeadName.X_PLATFORM_RES_MESSAGE);
req.put(GatewayHeadName.X_PLATFORM_RES_CODE, StrUtil.nullToDefault(resCode,""));
req.put(GatewayHeadName.X_PLATFORM_RES_SUCCESS,StrUtil.nullToDefault(resSuccess,""));
req.put(GatewayHeadName.X_PLATFORM_RES_MESSAGE,StrUtil.nullToDefault(resMessage,""));
String gatewayRequestId = GatewayUtil.getReq(exchange);
String key = RedisKeyEnum.gateway_req_info.getKey(gatewayRequestId);
try {
stringRedisTemplate.opsForHash().putAll(key,req);
}catch (Exception e){
log.error("redis cache error:{},{}", key,JSON.toJSONString(req));
log.error("",e);
}
// ---------设置5分钟后过期 ------
stringRedisTemplate.expire(key,5, TimeUnit.MINUTES);
// ---------加入redis队列 ------
stringRedisTemplate.opsForList().rightPush(RedisKeyEnum.gateway_req_info_query.getKey(),gatewayRequestId);
log.info("request info to redis query.");
}
};
}
@Override
public int getOrder() {
return NettyWriteResponseFilter.WRITE_RESPONSE_FILTER_ORDER - 2;
}
}
}
将Redis中数据同步到ES
类：GatewayReqSaveToElasticsearch
文件路径
platform-cloud/platform-cloud-service/platform-cloud-service-task/src/main/java/com/tinem/platform/service/task/consumer/redis/GatewayReqSaveToElasticsearch.java
package com.tinem.platform.service.task.consumer.redis;
import cn.hutool.core.collection.CollUtil;
import cn.hutool.core.date.DateUtil;
import cn.hutool.core.util.StrUtil;
import cn.hutool.http.HttpUtil;
import com.alibaba.fastjson.JSONObject;
import com.tinem.platform.module.pojo.co.GatewayHeadName;
import com.tinem.platform.module.pojo.co.RedisKeyEnum;
import lombok.Data;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Configurable;
import org.springframework.boot.ApplicationArguments;
import org.springframework.boot.ApplicationRunner;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.dao.InvalidDataAccessApiUsageException;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.stereotype.Component;
import redis.clients.jedis.exceptions.JedisException;
import javax.annotation.Resource;
import java.util.Date;
import java.util.HashMap;
import java.util.Map;
import java.util.NoSuchElementException;
import java.util.concurrent.TimeUnit;
/**
* 将网关请求信息保存到ES中
* //TODO 可以优化成批量获取和批量插入
*/
@Slf4j
@Data
@Component
@Configurable
@ConfigurationProperties(prefix = "gateway.req.save.elasticsearch")
public class GatewayReqSaveToElasticsearch implements ApplicationRunner {
// 执行线程数
private int threadNum;
// es地址
private String elasticsearchUrl;
@Resource
StringRedisTemplate stringRedisTemplate;
@Override
public void run(ApplicationArguments args) throws Exception {
for (int i = 0; i < threadNum; i++) {
Thread thread = new Thread(()->{
while (true){
try {
// 从redis队列中获取请求流水，以阻塞队列方式，如果没有流水则最长等待1天
String gatewayRequestId = stringRedisTemplate.opsForList().leftPop(RedisKeyEnum.gateway_req_info_query.getKey(),1, TimeUnit.DAYS);
// 如果没有获取到流水号
if(StrUtil.isBlank(gatewayRequestId)){
continue;
}
String redisGatewayRequestId = RedisKeyEnum.gateway_req_info.getKey(gatewayRequestId);
// 从redis中获取请求信息
Map<Object, Object> req = stringRedisTemplate.opsForHash().entries(redisGatewayRequestId);
if(CollUtil.isEmpty(req)){
continue;
}
// 将请求信息保存到ES
String s = HttpUtil.post(StrUtil.format(elasticsearchUrl,new HashMap(){{
String millis = (String) req.getOrDefault(GatewayHeadName.X_PLATFORM_GATEWAY_CONTEXT_ACCEPT_TIMESTAMP,System.currentTimeMillis()+"");
put("date", DateUtil.formatDate(new Date(Long.parseLong(millis))));
put("env", req.get(GatewayHeadName.X_PLATFORM_GATEWAY_CONTEXT_ENV));
put(GatewayHeadName.X_PLATFORM_GATEWAY_REQUEST_ID, req.get(GatewayHeadName.X_PLATFORM_GATEWAY_REQUEST_ID));
}}),JSONObject.toJSONString(req));
// 清理redis中的数据
stringRedisTemplate.delete(redisGatewayRequestId);
log.debug(s);
}catch (InvalidDataAccessApiUsageException e){
if(e.getCause() instanceof JedisException && e.getCause().getCause() instanceof NoSuchElementException){
//如果redis中没有数据，则睡眠60秒
try {
Thread.sleep(60*1000);
} catch (InterruptedException ex) {
ex.printStackTrace();
}
}else{
log.error("",e);
}
}catch (Exception e){
log.error("",e);
}
}
});
thread.setName("gatewayReqSaveElasticsearch-"+i);
thread.start();
}
}
}
在ES中建立索引模版
请求：
地址：/_template/data-tinem-all-gateway-request
方法：put
{
"index_patterns": ["data-tinem-*-gateway-request-*"], // 可以通过"book_*"和"bar*"来适配, template字段已过期
"order": 0, // 模板的权重, 多个模板的时候优先匹配用, 值越大, 权重越高
"aliases": {
"data-tinem-all-gateway-request": {} // 索引对应的别名
},
"settings": {
"number_of_shards": 1, // 索引分片数量
"number_of_replicas": 1 // 副本数量
},
"mappings": {
"_source": {
"enabled": true // 如果我们只关心查询的评分结果, 而不用查看原始文档的内容, 就设置"_source{"enabled": false}.—— 这能节省磁盘空间并减少磁盘IO上的开销.
},
"dynamic": "true", // 只用定义的字段, 关闭默认的自动类型推断
"properties": {
// 收到请求的时间
"x-platform-gateway-accept-timestamp": {
"type": "date"
},
// 客户端id
"x-platform-gateway-context-client_id": {
"type": "keyword",
"ignore_above": 256
},
// 用户id
"x-platform-gateway-context-user_id": {
"type": "keyword",
"ignore_above": 256
},
// 网关请求流水号
"x-platform-gateway-req-api_request_id": {
"type": "keyword",
"ignore_above": 256
},
// 请求报文
"x-platform-gateway-req-body": {
"type": "text"
},
// 字符编码
"x-platform-gateway-req-charset": {
"type": "keyword",
"ignore_above": 32
},
// 加密算法：IV
"x-platform-gateway-req-crypto_iv": {
"type": "keyword",
"ignore_above": 256
},
// 加密算法：KEY
"x-platform-gateway-req-crypto_key": {
"type": "keyword",
"ignore_above": 256
},
// 加密算法
"x-platform-gateway-req-crypto_type": {
"type": "keyword",
"ignore_above": 256
},
// 是否开启debug模式
"x-platform-gateway-req-debug": {
"type": "keyword",
"ignore_above": 256
},
// jwt
"x-platform-gateway-req-jwt": {
"type": "keyword",
"ignore_above": 4096
},
// jwt jit
"x-platform-gateway-context-jti": {
"type": "keyword",
"ignore_above": 64
},
// 请求ip
"x-platform-gateway-req-ip": {
"type": "keyword",
"ignore_above": 64
},
// 请求IP归属地
"x-platform-gateway-req-ip-country": {
"type": "keyword",
"ignore_above": 64
},
// 设备ID
"x-platform-gateway-req-device": {
"type": "keyword",
"ignore_above": 256
},
// 浏览器信息
"User-Agent": {
"type": "keyword",
"ignore_above": 1024
},
// 请求来自于哪个站点
"Origin": {
"type": "keyword",
"ignore_above": 1024
},
// 该网页是从哪个页面链接过来的
"Referer": {
"type": "keyword",
"ignore_above": 1024
},
// 域名
"Host": {
"type": "keyword",
"ignore_above": 1024
},
// 语言
"x-platform-gateway-req-lang": {
"type": "keyword",
"ignore_above": 256
},
// 接口
"x-platform-gateway-req-method": {
"type": "keyword",
"ignore_above": 256
},
// 服务
"x-platform-gateway-req-service": {
"type": "keyword",
"ignore_above": 512
},
// 签名
"x-platform-gateway-req-sign": {
"type": "keyword",
"ignore_above": 256
},
// 签名算法
"x-platform-gateway-req-sign_type": {
"type": "keyword",
"ignore_above": 256
},
// 客户端发起请求的时间
"x-platform-gateway-req-timestamp": {
"type": "date"
},
// 接口版本
"x-platform-gateway-req-version": {
"type": "keyword",
"ignore_above": 256
},
// 客户端请求流水号
"x-platform-gateway-request_id": {
"type": "keyword",
"ignore_above": 256
},
// 环境
"x-platform-gateway-request-env": {
"type": "keyword",
"ignore_above": 256
},
// 返回数据
"x-platform-gateway-res-body": {
"type": "text"
},
// 返回状态码
"x-platform-gateway-res-code": {
"type": "keyword",
"ignore_above": 256
},
// 返回消息
"x-platform-gateway-res-message": {
"type": "keyword",
"ignore_above": 256
},
// 返回是否成功
"x-platform-gateway-res-succes": {
"type": "keyword",
"ignore_above": 256
},
// 服务返回时间
"x-platform-gateway-res-timestamp": {
"type": "date"
},
// 业务返回码
"x-platform-res-code": {
"type": "keyword",
"ignore_above": 256
},
// 服务返回码
"x-platform-res-message": {
"type": "text"
},
// 服务是否成功
"x-platform-res-success": {
"type": "keyword",
"ignore_above": 256
},
// 服务返回时间
"x-platform-res-timestamp": {
"type": "date"
}
}
}
}
一个请求报文的示例：
{
"_index": "data-tinem-test-gateway-request-2023-05-15",
"_type": "_doc",
"_id": "92c45a7d-c45f-4883-9c17-f1390081fd55",
"_version": 1,
"_score": null,
"fields": {
"Origin": [
""
],
"x-platform-gateway-req-ip": [
""
],
"x-platform-gateway-res-timestamp": [
"2023-05-15T04:15:46.668Z"
],
"User-Agent": [
"PostmanRuntime/7.32.2"
],
"x-platform-gateway-res-succes": [
"true"
],
"x-platform-gateway-req-timestamp": [
"2023-05-15T04:15:46.306Z"
],
"x-platform-gateway-req-version": [
"0.0.1-SNAPSHOT"
],
"x-platform-gateway-req-sign": [
"df6bfe8deeaacf550a87fc376c016715cb1cc3a3c4af5a5f4872c217da95e3d5947d01ed52661e84fd76dbff8deeeee9ea768f6431c85e96284953a0b9ec50a6"
],
"x-platform-gateway-request_id": [
"92c45a7d-c45f-4883-9c17-f1390081fd55"
],
"x-platform-res-success": [
"true"
],
"x-platform-gateway-req-sign_type": [
"SHA512"
],
"x-platform-gateway-req-method": [
"/event.api"
],
"x-platform-gateway-req-crypto_key": [
""
],
"x-platform-gateway-res-message": [
"success"
],
"x-platform-gateway-req-lang": [
"en-us"
],
"x-platform-gateway-req-service": [
"platform-cloud-service-link"
],
"x-platform-res-code": [
"SUCCESS"
],
"x-platform-gateway-req-charset": [
"UTF-8"
],
"x-platform-gateway-context-jti": [
"7ced7a84-9595-4733-a5b0-e4aef3d3a40c"
],
"x-platform-gateway-request-env": [
"test"
],
"x-platform-gateway-req-crypto_iv": [
""
],
"Referer": [
""
],
"x-platform-gateway-req-ip-country": [
""
],
"Host": [
"gateway-platform.fuletec.club"
],
"x-platform-gateway-req-jwt": [
"eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJhdWQiOlsiYWxsIiwiYSIsImIiXSwiZ3JhbnRfdHlwZSI6ImNsaWVudF9jcmVkZW50aWFscyIsInNjb3BlIjpbImFsbCJdLCJleHAiOjE2ODQyMDczODIsImp0aSI6IjdjZWQ3YTg0LTk1OTUtNDczMy1hNWIwLWU0YWVmM2QzYTQwYyIsImNsaWVudF9pZCI6ImFkbWluLW5vLXNlY3VyaXR5In0.hIyxJnLRuOJNPalEuFDPa_kbcgyjTVrn_AZG07fuTRS79r2yz2Quk0lsPqUiIKBFo54jdMyLM3n5fwXravM8jQPDrYkvLk6MY6qXQ9vLi1LxVn9O5L0E8Q5gBdCFVjziY06F8KlBD5VaGs4elzt3ekWf1nwZGEqZBM8E49m76g7gFIh5OlrHOF1FPfFzDqRTb1rgHW9DmYJeXFnCEkQfUkt7LyVGT09CU6p4TlBIlPedvIArRdRdtgzZWst6bgyO2lqKFkz8F8XBC1g3rEajStTIjacJqdo8EgYDrL6iSFQMXKGhIXdAwi-65eeavyi_Y3udMEZHgHgYw9spKywEpQ"
],
"x-platform-res-message": [
"success"
],
"x-platform-gateway-req-api_request_id": [
"cb516c80-398c-487f-9e48-81f4b191ccb3"
],
"x-platform-gateway-req-crypto_type": [
""
],
"x-platform-gateway-req-body": [
"{\"id\":\"6028648677754028032\",\"ip\":\"222.90.214.224\",\"ua\":\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_5) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/83.0.4103.116 Safari/537.36\"}"
],
"x-platform-gateway-accept-timestamp": [
"2023-05-15T04:15:46.482Z"
],
"x-platform-gateway-context-client_id": [
"admin-no-security"
],
"x-platform-gateway-req-device": [
""
],
"x-platform-gateway-req-debug": [
""
],
"x-platform-gateway-res-code": [
"SUCCESS"
]
},
"sort": [
1684124146482
]
}
通过kibana监控微服务成功率
- 进入创建图表界面
- 选择Lens线性图表
- 建立图表
这个图表中我们监控各个服务返回错误的数量变化。
通过 x-platform-res-success: false限制只统计错误接口
使用网关收到请求的时间作为X轴
使用统计数量作为Y轴
在Y轴使用x-platform-gateway-req-service做细分
这样就能显示我们每个服务返回错误的数量。
也可以通过Kibana根据业务需要做其他维度的监控或者统计。
如果我们的图标特别复杂还可以通过第三方的图标工具直接从ES中取数据来展示
