基本语法
节点语法
nodeName=>nodeTpye: nodeText[|flowstate][:>urlLink]nodeName定义流程图文档中的节点变量名称。nodeType定义节点的类型。有关详细信息，请参阅节点类型。nodeText是将插入到节点中的文本。允许换行并将反映在呈现的节点文本中。flowstate是可选的，它使用|为节点指定额外样式的运算符。urlLink是可选的，它使用:>运算符指定要链接到的 url。
节点类型
|
nodeName |
nodeType |
example |
|
st |
start |
st=>start: start |
|
e |
end |
e=>end: end |
|
op1 |
operation |
op1=>operation: operation |
|
io |
inputoutput |
io=>inputoutput: inputoutput |
|
sub1 |
subroutine |
sub1=>subroutine: subroutine |
|
cond |
condition |
cond=>condition: condition |
|
para |
parallel |
para=>parallel: parallel |
连接
<node variable name>[(<specification1>[, <specification2])]-><node variable name>[[(<specification1>[, <specification2])]-><node variable name>]方向<direction> : 可选值：left,right,top,bottom实例：startVar(<direction>)->nextNodeconditionalVar(yes, <direction>)->nextNode1parallelVar(path1, <direction>)->nextNode1

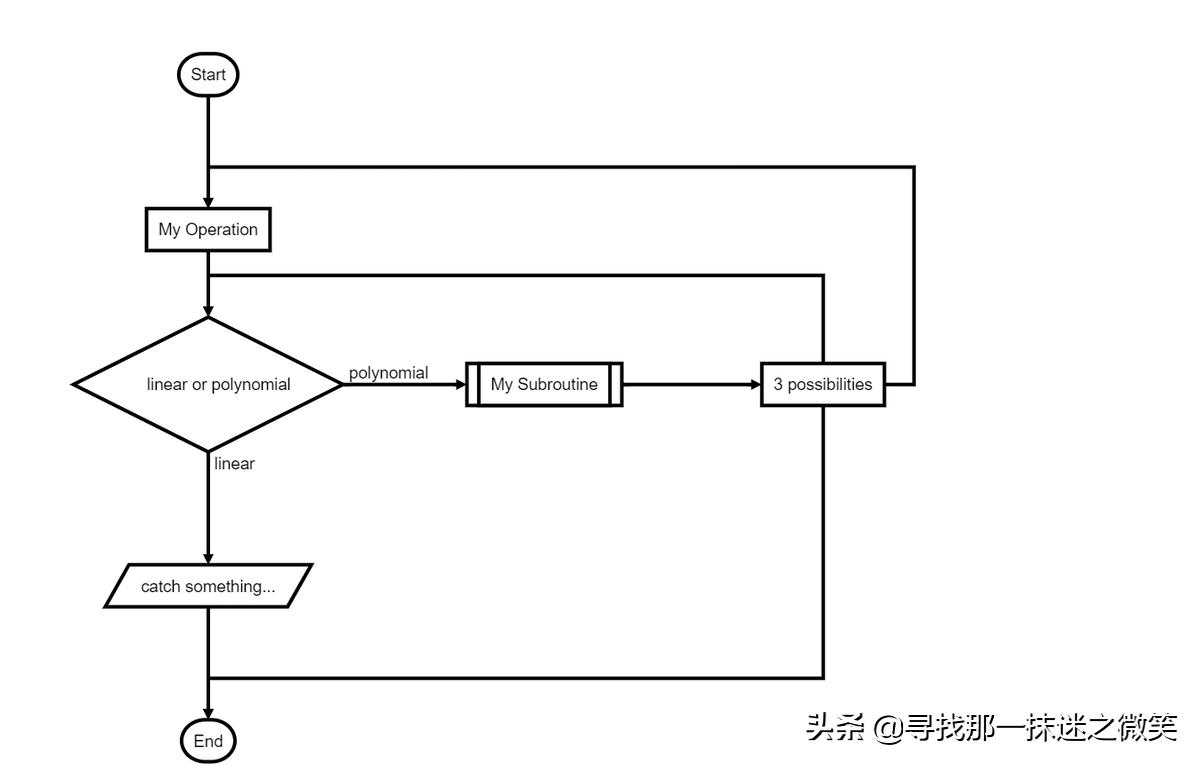

实例
st=>start: Start:>http://www.google.com[blank]e=>end:>http://www.google.comop1=>operation: My Operationsub1=>subroutine: My Subroutinecond=>condition: linear or polynomial :>http://www.google.comio=>inputoutput: catch something...para=>parallel: 3 possibilitiesst->op1->condcond(true@linear)->io->econd(false@polynomial)->sub1(right)sub1(right)->parapara(path1@an1, top)->condpara(path2@an2, right)->op1para(path3@an3, bottom)->e
参考文献
https://github.com/adrai/flowchart.js
