Netty是一个NIO客户端服务器框架，可以快速轻松地开发协议服务器和客户端等网络应用程序。它极大地简化并简化了TCP和UDP套接字服务器等网络编程。 “快速简便”并不意味着最终的应用程序会受到可维护性或性能问题的影响。 Netty经过精心设计，具有丰富的协议，如FTP，SMTP，HTTP以及各种二进制和基于文本的传统协议。因此，Netty成功地找到了一种在不妥协的情况下实现易于开发，性能，稳定性和灵活性的方法。(--来自netty官网翻译)
基于Netty开发，我能能更快捷，更容易的开发高性能IO网络应用。从应用开发角度出发，netty有一下核心组件：
Bootstrap与ServerBootstrap（前者客户端，后者服务端）
EventLoop
ChannelHandler
ChannelFuture
Channel
ChannelPipeline
回顾Netty官网提供的demo
public final class EchoServer {
static final boolean SSL = System.getProperty("ssl") != null;
//服务器端口
static final int PORT = Integer.parseInt(System.getProperty("port", "8007"));
public static void main(String[] args) throws Exception {
// 配置 ssl
final SslContext sslCtx;
if (SSL) {
SelfSignedCertificate ssc = new SelfSignedCertificate();
sslCtx = SslContextBuilder.forServer(ssc.certificate(), ssc.privateKey()).build();
} else {
sslCtx = null;
}
// 配置服务器.
EventLoopGroup bossGroup = new NioEventLoopGroup(1);
EventLoopGroup workerGroup = new NioEventLoopGroup();
//自定义处理器
final EchoServerHandler serverHandler = new EchoServerHandler();
try {
ServerBootstrap b = new ServerBootstrap();
b.group(bossGroup, workerGroup)
.channel(NioServerSocketChannel.class)
.option(ChannelOption.SO_BACKLOG, 100)
.handler(new LoggingHandler(LogLevel.INFO))
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
public void initChannel(SocketChannel ch) throws Exception {
ChannelPipeline p = ch.pipeline();
if (sslCtx != null) {
p.addLast(sslCtx.newHandler(ch.alloc()));
}
//p.addLast(new LoggingHandler(LogLevel.INFO));
p.addLast(serverHandler);
}
});
// 启动服务
ChannelFuture f = b.bind(PORT).sync();
// 等待直至服务socket关闭
f.channel().closeFuture().sync();
} finally {
// 关闭所有EventLoop
bossGroup.shutdownGracefully();
workerGroup.shutdownGracefully();
}
}
}
@Sharable
public class EchoServerHandler extends ChannelInboundHandlerAdapter {
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) {
ctx.write(msg);
}
@Override
public void channelReadComplete(ChannelHandlerContext ctx) {
ctx.flush();
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) {
cause.printStackTrace();
ctx.close();
}
}
<dependency>
<groupId>io.netty</groupId>
<artifactId>netty-transport</artifactId>
<version>4.1.24.Final</version>
<scope>test</scope>
<type>jar</type>
</dependency>
线程模型

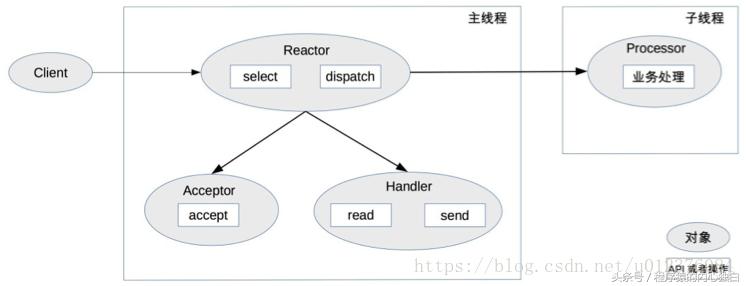

Netty是一个高度抽象的架构，其主要特点之一就是他的线程模型，上述官方提供的EchoServer demo，采用的是Reactor模式。如图：
因此细看netty的几个核心组件，可以发现
- EventLoopGroop 实际上是继承了 java.util.concurrent.ScheduledExecutorService。
- ChannelFuture 是继承了 java.util.concurrent.Future
那么程序启动时做了什么，从入口出发，ServerBootstrap bind(int inetPort)。和nio一样最终通过调用本地方法来绑定指定端口如下：sun.nio.ch.ServerSocketChannelImpl bind(SocketAddress local, int backlog)
public ServerSocketChannel bind(SocketAddress local, int backlog) throws IOException {
synchronized (lock) {
if (!isOpen())
throw new ClosedChannelException();
if (isBound())
throw new AlreadyBoundException();
InetSocketAddress isa = (local == null) ? new InetSocketAddress(0) :
Net.checkAddress(local);
SecurityManager sm = System.getSecurityManager();
if (sm != null)
sm.checkListen(isa.getPort());
NetHooks.beforeTcpBind(fd, isa.getAddress(), isa.getPort());
Net.bind(fd, isa.getAddress(), isa.getPort());
Net.listen(fd, backlog < 1 ? 50 : backlog);
synchronized (stateLock) {
localAddress = Net.localAddress(fd);
}
}
return this;
}
负责监听接受端口信息，并提交给指定的Handler来响应请求，代码如下：
io.netty.channel.nio.NioEventLoop void run()
@Override
protected void run() {
for (;;) {
try {
switch (selectStrategy.calculateStrategy(selectNowSupplier, hasTasks())) {
case SelectStrategy.CONTINUE:
continue;
case SelectStrategy.SELECT:
select(wakenUp.getAndSet(false));
// ’wakenUp.compareAndSet(false, true)’ is always evaluated
// before calling ’selector.wakeup()’ to reduce the wake-up
// overhead. (Selector.wakeup() is an expensive operation.)
//
// However, there is a race condition in this approach.
// The race condition is triggered when ’wakenUp’ is set to
// true too early.
//
// ’wakenUp’ is set to true too early if:
// 1) Selector is waken up between ’wakenUp.set(false)’ and
// ’selector.select(...)’. (BAD)
// 2) Selector is waken up between ’selector.select(...)’ and
// ’if (wakenUp.get()) { ... }’. (OK)
//
// In the first case, ’wakenUp’ is set to true and the
// following ’selector.select(...)’ will wake up immediately.
// Until ’wakenUp’ is set to false again in the next round,
// ’wakenUp.compareAndSet(false, true)’ will fail, and therefore
// any attempt to wake up the Selector will fail, too, causing
// the following ’selector.select(...)’ call to block
// unnecessarily.
//
// To fix this problem, we wake up the selector again if wakenUp
// is true immediately after selector.select(...).
// It is inefficient in that it wakes up the selector for both
// the first case (BAD - wake-up required) and the second case
// (OK - no wake-up required).
if (wakenUp.get()) {
selector.wakeup();
}
// fall through
default:
}
cancelledKeys = 0;
needsToSelectAgain = false;
final int ioRatio = this.ioRatio;
if (ioRatio == 100) {
try {
processSelectedKeys();
} finally {
// Ensure we always run tasks.
runAllTasks();
}
} else {
final long ioStartTime = System.nanoTime();
try {
processSelectedKeys();
} finally {
// Ensure we always run tasks.
final long ioTime = System.nanoTime() - ioStartTime;
runAllTasks(ioTime * (100 - ioRatio) / ioRatio);
}
}
} catch (Throwable t) {
handleLoopException(t);
}
// Always handle shutdown even if the loop processing threw an exception.
try {
if (isShuttingDown()) {
closeAll();
if (confirmShutdown()) {
return;
}
}
} catch (Throwable t) {
handleLoopException(t);
}
}
}
1.当服务器有请求过来的时候，程序就进入 processSelectedKeys() ，具体实现如下：
io.netty.channel.nio.NioEventLoop void processSelectedKeys() 与 void processSelectedKeysOptimized()；
private void processSelectedKeys() {
if (selectedKeys != null) {
processSelectedKeysOptimized();
} else {
processSelectedKeysPlain(selector.selectedKeys());
}
}
private void processSelectedKeysOptimized() {
for (int i = 0; i < selectedKeys.size; ++i) {
final SelectionKey k = selectedKeys.keys[i];
// null out entry in the array to allow to have it GC’ed once the Channel close
// See https://github.com/netty/netty/issues/2363
selectedKeys.keys[i] = null;
final Object a = k.attachment();
if (a instanceof AbstractNioChannel) {
processSelectedKey(k, (AbstractNioChannel) a);
} else {
@SuppressWarnings("unchecked")
NioTask<SelectableChannel> task = (NioTask<SelectableChannel>) a;
processSelectedKey(k, task);
}
if (needsToSelectAgain) {
// null out entries in the array to allow to have it GC’ed once the Channel close
// See https://github.com/netty/netty/issues/2363
selectedKeys.reset(i + 1);
selectAgain();
i = -1;
}
}
}
2.接着会进入 io.netty.channel.nio.NioEventLoop void processSelectedKey(SelectionKey k, AbstractNioChannel ch)，具体实现如下：
private void processSelectedKey(SelectionKey k, AbstractNioChannel ch) {
final AbstractNioChannel.NioUnsafe unsafe = ch.unsafe();
if (!k.isValid()) {
final EventLoop eventLoop;
try {
eventLoop = ch.eventLoop();
} catch (Throwable ignored) {
// If the channel implementation throws an exception because there is no event loop, we ignore this
// because we are only trying to determine if ch is registered to this event loop and thus has authority
// to close ch.
return;
}
// Only close ch if ch is still registered to this EventLoop. ch could have deregistered from the event loop
// and thus the SelectionKey could be cancelled as part of the deregistration process, but the channel is
// still healthy and should not be closed.
// See https://github.com/netty/netty/issues/5125
if (eventLoop != this || eventLoop == null) {
return;
}
// close the channel if the key is not valid anymore
unsafe.close(unsafe.voidPromise());
return;
}
try {
int readyOps = k.readyOps();
// We first need to call finishConnect() before try to trigger a read(...) or write(...) as otherwise
// the NIO JDK channel implementation may throw a NotYetConnectedException.
if ((readyOps & SelectionKey.OP_CONNECT) != 0) {
// remove OP_CONNECT as otherwise Selector.select(..) will always return without blocking
// See https://github.com/netty/netty/issues/924
int ops = k.interestOps();
ops &= ~SelectionKey.OP_CONNECT;
k.interestOps(ops);
unsafe.finishConnect();
}
// Process OP_WRITE first as we may be able to write some queued buffers and so free memory.
if ((readyOps & SelectionKey.OP_WRITE) != 0) {
// Call forceFlush which will also take care of clear the OP_WRITE once there is nothing left to write
ch.unsafe().forceFlush();
}
// Also check for readOps of 0 to workaround possible JDK bug which may otherwise lead
// to a spin loop
if ((readyOps & (SelectionKey.OP_READ | SelectionKey.OP_ACCEPT)) != 0 || readyOps == 0) {
unsafe.read();
}
} catch (CancelledKeyException ignored) {
unsafe.close(unsafe.voidPromise());
}
}
3.紧接着进入 io.netty.channel.nio.AbstractNioByteChannel.NioByteUnsafe void read()，具体实现如下：
public final void read() {
final ChannelConfig config = config();
if (shouldBreakReadReady(config)) {
clearReadPending();
return;
}
final ChannelPipeline pipeline = pipeline();
final ByteBufAllocator allocator = config.getAllocator();
final RecvByteBufAllocator.Handle allocHandle = recvBufAllocHandle();
allocHandle.reset(config);
ByteBuf byteBuf = null;
boolean close = false;
try {
do {
byteBuf = allocHandle.allocate(allocator);
allocHandle.lastBytesRead(doReadBytes(byteBuf));
if (allocHandle.lastBytesRead() <= 0) {
// nothing was read. release the buffer.
byteBuf.release();
byteBuf = null;
close = allocHandle.lastBytesRead() < 0;
if (close) {
// There is nothing left to read as we received an EOF.
readPending = false;
}
break;
}
allocHandle.incMessagesRead(1);
readPending = false;
pipeline.fireChannelRead(byteBuf);
byteBuf = null;
} while (allocHandle.continueReading());
allocHandle.readComplete();
pipeline.fireChannelReadComplete();
if (close) {
closeOnRead(pipeline);
}
} catch (Throwable t) {
handleReadException(pipeline, byteBuf, t, close, allocHandle);
} finally {
// Check if there is a readPending which was not processed yet.
// This could be for two reasons:
// * The user called Channel.read() or ChannelHandlerContext.read() in channelRead(...) method
// * The user called Channel.read() or ChannelHandlerContext.read() in channelReadComplete(...) method
//
// See https://github.com/netty/netty/issues/2254
if (!readPending && !config.isAutoRead()) {
removeReadOp();
}
}
}
4.然后就是具体实现类 io.netty.channel.DefaultChannelPipeline void invokeChannelRead(AbstractChannelHandlerContext next, Object msg)，代码如下：
public final ChannelPipeline fireChannelRead(Object msg) {
AbstractChannelHandlerContext.invokeChannelRead(head, msg);
return this;
}
5.最后则是 io.netty.channel.AbstractChannelHandlerContext invokeChannelRead(final AbstractChannelHandlerContext next, Object msg)，代码如下：
static void invokeChannelRead(final AbstractChannelHandlerContext next, Object msg) {
final Object m = next.pipeline.touch(ObjectUtil.checkNotNull(msg, "msg"), next);
EventExecutor executor = next*ex.e**cutor();
if (executor.inEventLoop()) {
next.invokeChannelRead(m);
} else {
executor*ex.e**cute(new Runnable() {
@Override
public void run() {
next.invokeChannelRead(m);
}
});
}
}
此处的 next.invokeChannelRead(m); 即是执行对应的 ChannelHandler 的 void channelRead0(ChannelHandlerContext ctx, FullHttpRequest msg) 方法。
