概述

It is very easy for us to implement sql tuning by toad. We need to do is just give complex sql statement to toad.

相信很多朋友都会碰到那些几十行几百行的sql,像这种复杂的sql单单去做分析都很耗费我们的时间了，有没有一种办法可以一键优化这种复杂的sql语句呢？今天主要分享一下怎么通过toad工具去优化那些复杂的sql，目的是帮助我们减少优化的时间。

原始sql

SELECT mm.inst_id,
 mm.sid,
 mm.TYPE,
 mm.id1,
 mm.id2,
 LPAD (TRUNC (mm.ctime / 60 / 60), 3)
 || ’ Hour ’
 || LPAD (
 TO_CHAR (
 TRUNC (mm.ctime / 60) - TRUNC (mm.ctime / 60 / 60) * 60,
 ’fm09’),
 2)
 || ’ Min ’
 || LPAD (TO_CHAR (mm.ctime - TRUNC (mm.ctime / 60) * 60, ’fm09’), 2)
 || ’ Sec’
 ctime,
 CASE
 WHEN mm.block = 1 AND mm.lmode != 0 THEN ’holder’
 WHEN mm.block = 0 AND mm.request != 0 THEN ’waiter’
 ELSE NULL
 END
 role,
 CASE
 WHEN ee.blocking_session IS NOT NULL
 THEN
 ’waiting for SID ’ || ee.blocking_session
 ELSE
 NULL
 END
 blocking_session,
 dd.sql_text sql_text,
 cc.event wait_event
 FROM gv$lock mm,
 gv$session ee,
 gv$sqlarea dd,
 gv$session_wait cc
 WHERE mm.sid IN
 (SELECT nn.sid
 FROM (SELECT tt.*,
 COUNT (1)
 OVER (PARTITION BY tt.TYPE, tt.id1, tt.id2)
 cnt,
 MAX (tt.lmode)
 OVER (PARTITION BY tt.TYPE, tt.id1, tt.id2)
 lmod_flag,
 MAX (tt.request)
 OVER (PARTITION BY tt.TYPE, tt.id1, tt.id2)
 request_flag
 FROM gv$lock tt) nn
 WHERE nn.cnt > 1
 AND nn.lmod_flag != 0
 AND nn.request_flag != 0)
 AND mm.sid = ee.sid(+)
 AND ee.sql_id = dd.sql_id(+)
 AND mm.sid = cc.sid(+)
 AND ( (mm.block = 1 AND mm.lmode != 0)
 OR (mm.block = 0 AND mm.request != 0))
ORDER BY mm.TYPE,
 mm.id1,
 mm.id2,
 mm.lmode DESC,
 mm.ctime DESC

1、Get execution plan

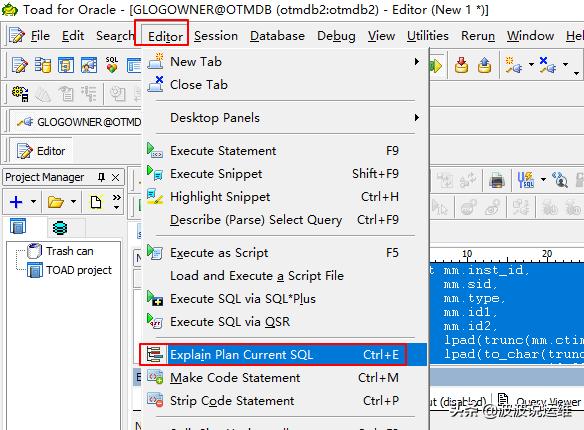

Editor --> Explain plan current SQL or CTRL + E

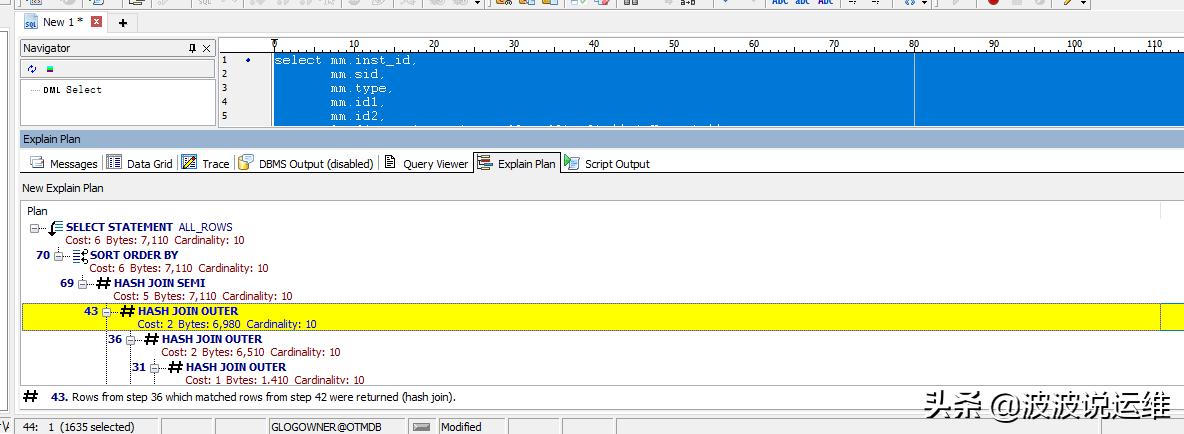

可以看到执行计划如下：

2、 Get statistics/Auto Trace

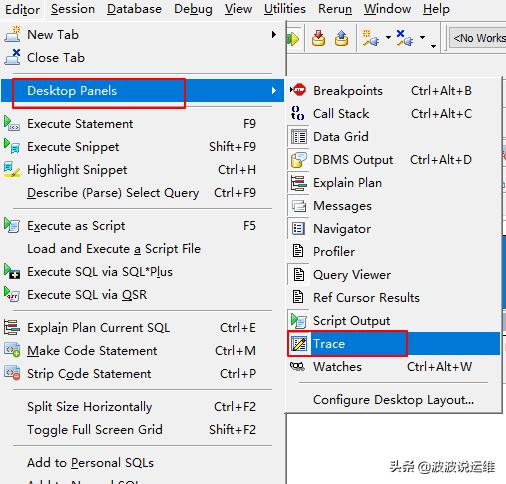

开启自动trace跟踪：

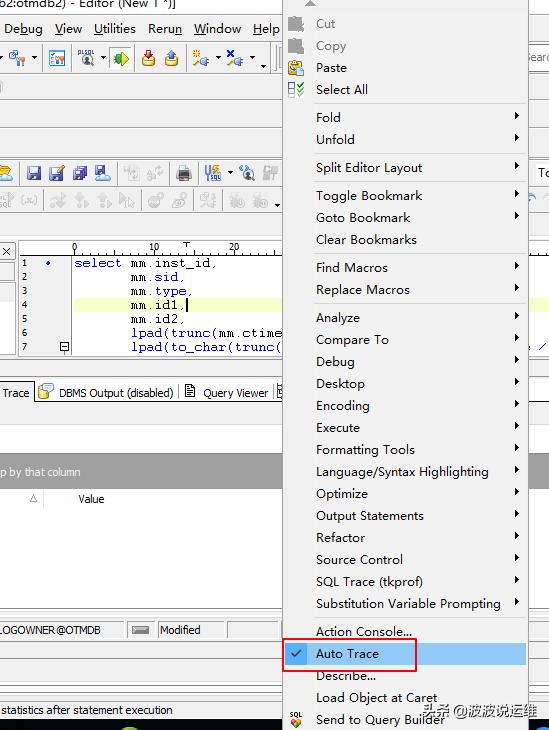

或者在sql编辑区右键选择去开启自动跟踪：

3、Get statistics after executed sql.

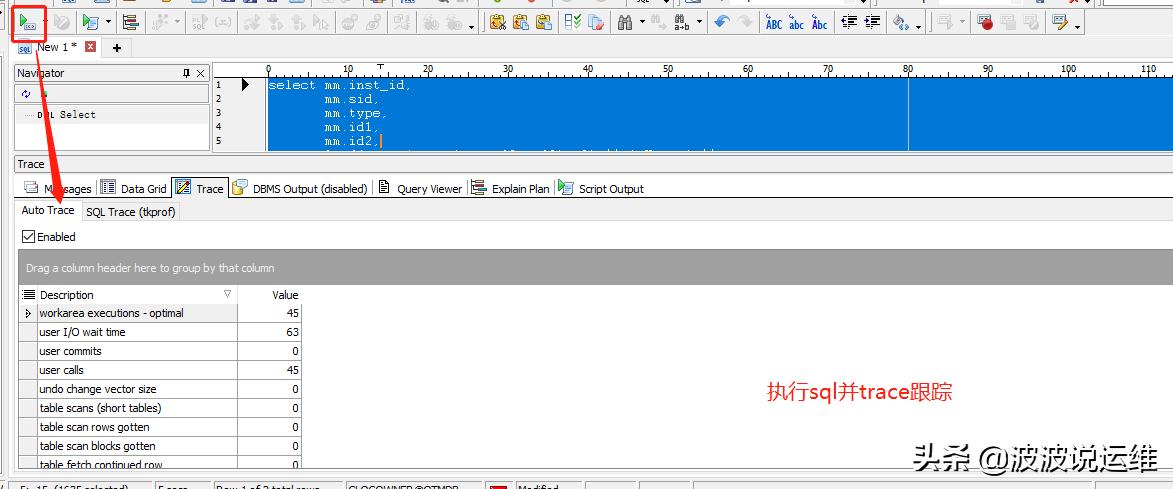

点击执行后可以看到sql相关统计信息：

4、 Tuning SQL

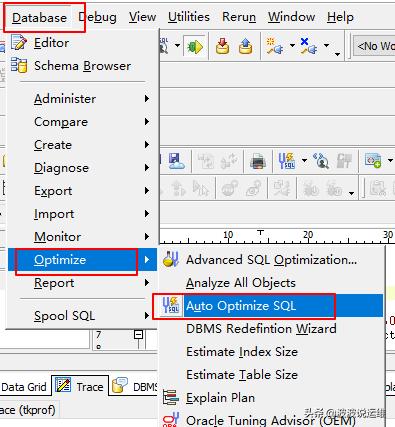

选择自动优化sql:

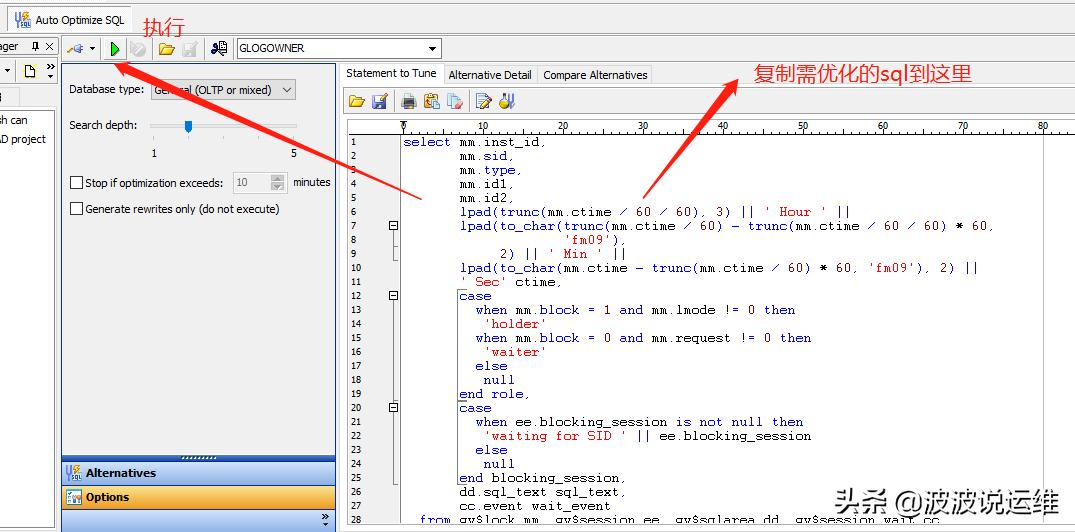

执行sql:

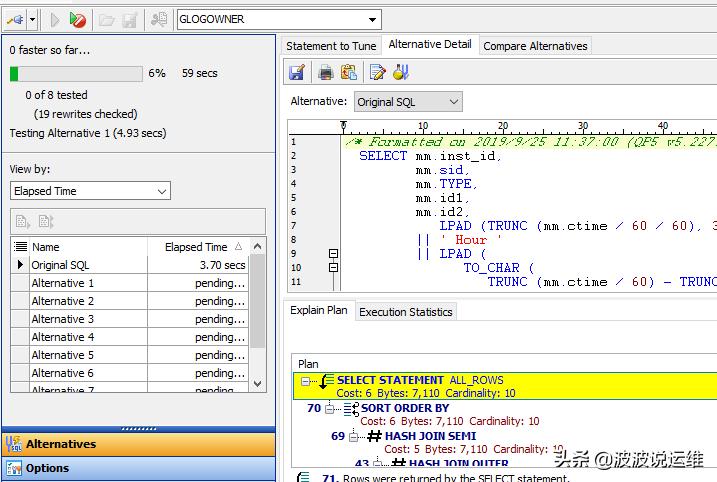

可以看到正在自动优化：

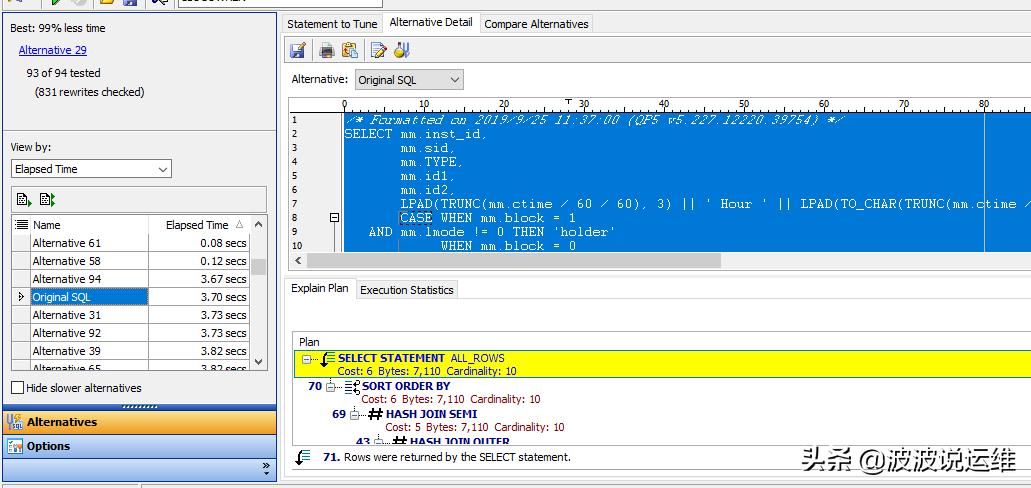

优化完成后如下：

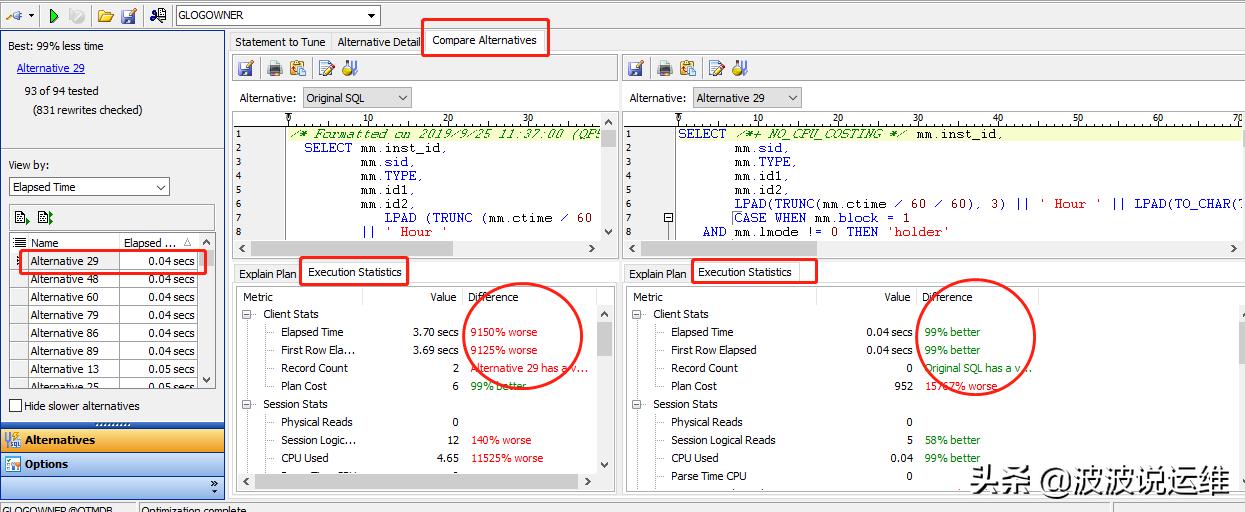

5、 Compare result

这里我们可以看到其中一条sql从3.7秒优化到0.04秒

最终sql

SELECT /*+ NO_CPU_COSTING */ mm.inst_id,
 mm.sid,
 mm.TYPE,
 mm.id1,
 mm.id2,
 LPAD(TRUNC(mm.ctime / 60 / 60), 3) || ’ Hour ’ || LPAD(TO_CHAR(TRUNC(mm.ctime / 60) - TRUNC(mm.ctime / 60 / 60) * 60, ’fm09’), 2) || ’ Min ’ || LPAD(TO_CHAR(mm.ctime - TRUNC(mm.ctime / 60) * 60, ’fm09’), 2) || ’ Sec’ ctime,
 CASE WHEN mm.block = 1
 AND mm.lmode != 0 THEN ’holder’
 WHEN mm.block = 0
 AND mm.request != 0 THEN ’waiter’
 ELSE NULL END role,
 CASE WHEN ee.blocking_session IS NOT NULL THEN ’waiting for SID ’ || ee.blocking_session
 ELSE NULL END blocking_session,
 dd.sql_text sql_text,
 cc.event wait_event
 FROM gv$lock mm,
 gv$session ee,
 gv$sqlarea dd,
 gv$session_wait cc
 WHERE EXISTS (SELECT ’X’
 FROM (SELECT tt.*,
 COUNT(1) OVER (PARTITION BY tt.TYPE,
 tt.id1,
 tt.id2) cnt, MAX(tt.lmode) OVER (PARTITION BY tt.TYPE,
 tt.id1,
 tt.id2) lmod_flag, MAX(tt.request) OVER (PARTITION BY tt.TYPE,
 tt.id1,
 tt.id2) request_flag
 FROM gv$lock tt) nn
 WHERE nn.cnt > 1
 AND nn.lmod_flag != 0
 AND nn.request_flag != 0
 AND nn.sid = mm.sid)
 AND mm.sid = ee.sid (+)
 AND ee.sql_id = dd.sql_id (+)
 AND mm.sid = cc.sid (+)
 AND (mm.block = 1
 AND mm.lmode <> 0
 OR mm.block = 0
 AND mm.request <> 0)
 ORDER BY mm.TYPE, mm.id1, mm.id2, mm.lmode DESC,
 mm.ctime DESC

虽然花上一些时间我们也可以优化到我们想要的结果，但是通过工具去帮助我们减少这些时间，何乐而不为呢？
