作者：张杰，腾讯PCG后台开发工程师

前几天有同学反馈了cgo内存泄露问题，自己也针对这个问题探索了一番，算是为以后解决类似问题提前攒点经验吧。也趁机整理了一下go开发过程中内存泄露问题的一些常用排查方法，也希望对新接触go的同学有所帮助。整理之余，bcc工具之丰富也让我有点惊讶，也希望对自己日后的工作有所帮助吧。

内存泄漏

内存泄露，一个老生常谈的问题，但即便是老手也会犯一些低级错误。如果没有可靠的研发流程保证在测试阶段发现问题，问题就容易被带到线上。计算资源始终是有限的，问题也不会因为资源充裕就消失不见，产生影响只是时间问题。影响有多大，就要结合场景来说了。

内存泄漏，最可能的影响就是内存申请失败。但实际上操作系统更聪明，结合系统整体负载情况，它会为每个进程计算一个oom_score，并在内存资源紧张时选择一个合适的进程杀死并回收内存资源，see how does the oom killer decide which process to kill first。

所以，内存泄露的最终结果，大概率会被操作系统kill，通常进程挂掉后，确认其是否是因为oom问题被kill，可以通过查看 /proc/messages 来确认是否有对应日志。有的话，那就坐实了oom killed（但是被oom killed的进程不一定意味着存在内存泄露）。

服务质量

结合运维手段的变化，来看看是否内存泄漏问题对服务质量造成的影响。

  • 传统人工方式，通过感知告警、人为介入这种方式，效率低，要十几分钟；
  • 通过虚拟机自动化部署的方式，感知异常自动重启虚拟机，耗时大约要分钟级；
  • 通过docker容器化部署的方式，感知异常自动重启容器，耗时大约在秒级；

看上去现代运维方式一定程度上可以缓解这个问题，是，这也要分情况：

  • 如果内存泄露的代码路径不容易被触发，那可能要跑很久才能触发oom kill，如一周；但是如果代码路径在关键代码路径上，且请求量大，频繁触发内存泄露，那可能跑个几分钟就会挂掉；
  • 跟每次内存泄露的内存大小也有关系，如果泄露的少，多苟活一阵子，反之容易暴毙；
  • 进程一旦挂掉，这段时间就不能响应了，服务的健康监测、名字服务、负载均衡等措施需要一段时间才能感知到，如果请求量大，服务不可用依然会带来比较大的影响。

服务质量保证是不变的，所以别管用了什么运维手段，问题终究是问题，也是要解决的。

Go内存泄漏

垃圾回收

自动内存管理减轻了开发人员管理内存的复杂性，不需要像C\C++开发者那样显示malloc、free，或者new、delete。垃圾回收借助于一些垃圾回收算法完成对无用内存的清理，垃圾回收算法有很多，比如：引用计数、标记清除、拷贝、分代等等。

Go中垃圾回收器采用的是“并发三色标记清除”算法，see:

  1. Garbage Collection In Go : Part I - Semantics
  2. Garbage Collection In Go : Part II - GC Traces
  3. Garbage Collection In Go : Part III - GC Pacing

Go语言支持自动内存管理，那还存在内存泄漏问题吗？

理论上，垃圾回收（gc）算法能够对堆内存进行有效的清理，这个是没什么可质疑的。但是要理解，垃圾回收能够正常运行的前提是，程序中必须解除对内存的引用，这样垃圾回收才会将其判定为可回收内存并回收。

内存泄漏场景

实际情况是，编码中确实存在一些场景，会造成“ 临时性 ”或者“ 永久性 ”内存泄露，是需要开发人员加深对编程语言设计实现、编译器特性的理解之后才能优化掉的，see：go memory leaking scenarios。

即便是临时性内存泄漏，考虑到有限的内存资源、内存申请大小、申请频率、释放频率因素，也会造成进程oom killed的结果。所以，开发人员对待每一行代码还是要心存敬畏，对待内存资源也还是要慎重。

常见的内存泄露场景，go101进行了讨论，总结了如下几种：

  • Kind of memory leaking caused by substrings
  • Kind of memory leaking caused by subslices
  • Kind of memory leaking caused by not resetting pointers in lost slice elements
  • Real memory leaking caused by hanging goroutines
  • real memory leadking caused by not stopping time.Ticker values which are not used any more
  • Real memory leaking caused by using finalizers improperly
  • Kind of resource leaking by deferring function calls

简单归纳一下，还是“临时性”内存泄露和“永久性”内存泄露：

  • 临时性泄露，指的是该释放的内存资源没有及时释放，对应的内存资源仍然有机会在更晚些时候被释放，即便如此在内存资源紧张情况下，也会是个问题。这类主要是string、slice底层buffer的错误共享，导致无用数据对象无法及时释放，或者defer函数导致的资源没有及时释放。
  • 永久性泄露，指的是在进程后续生命周期内，泄露的内存都没有机会回收，如goroutine内部预期之外的 for-loop或者chan select-case导致的无法退出的情况，导致协程栈及引用内存永久泄露问题。

内存泄露排查

初步怀疑程序存在内存泄露问题，可能是因为进程oom killed，或者是因为top显示内存占用持续增加无法稳定在一个合理值。不管如何发现的，明确存在这一问题之后，就需要及时选择合适的方法定位到问题的根源，并及时修复。

借助pprof排查

pprof类型

go提供了pprof工具方便对运行中的go程序进行采样分析，支持对多种类型的采样分析：

  • goroutine - stack traces of all current goroutines
  • heap - a sampling of all heap allocations
  • threadcreate - stack traces that led to the creation of new OS threads
  • block - stack traces that led to blocking on synchronization primitives
  • mutex - stack traces of holders of contended mutexes
  • profile - cpu profile
  • trace - allows collecting all the profiles for a certain duration

pprof操作

现在很多rpc框架有内置管理模块，允许访问管理端口通过 /debug/pprof对服务进行采样分析（pprof会有一定的性能开销，最好分析前将负载均衡权重调低）。

集成pprof非常简单，只需要在工程中引入如下代码即可：

import_"net/http/pprof"

gofunc(){
log.Println(http.ListenAndServe("localhost:6060",nil))
}()

然后运行 go tool pprof进行采样：

gotoolpprof-seconds=10-http=:9999http://localhost:6060/debug/pprof/heap

有时可能存在网络隔离问题，不能直接从开发机访问测试机、线上机器，或者测试机、线上机器没有安装go，那也可以这么做：

curlhttp://localhost:6060/debug/pprof/heap?seconds=30>heap.out

#sz*载下**heap.out到本地
gotoolpprofheap.out

go tool pprof可以收集两类采样数据：

  • in_use，收集进程当前仍在使用中的内存；
  • alloc，收集自进程启动后的总的内存分配情况，包括已经释放掉的内存；

go tool pprof展示采样信息时，申请内存以“ 红色 ”显示，释放内存以“ 绿色 ”显示。

允许采样完成后打开一个浏览器页面（通过ip:port访问），交互式地查看采样结果信息，例如callgraph、flamegraph、top信息。

pprof示例：协程泄露

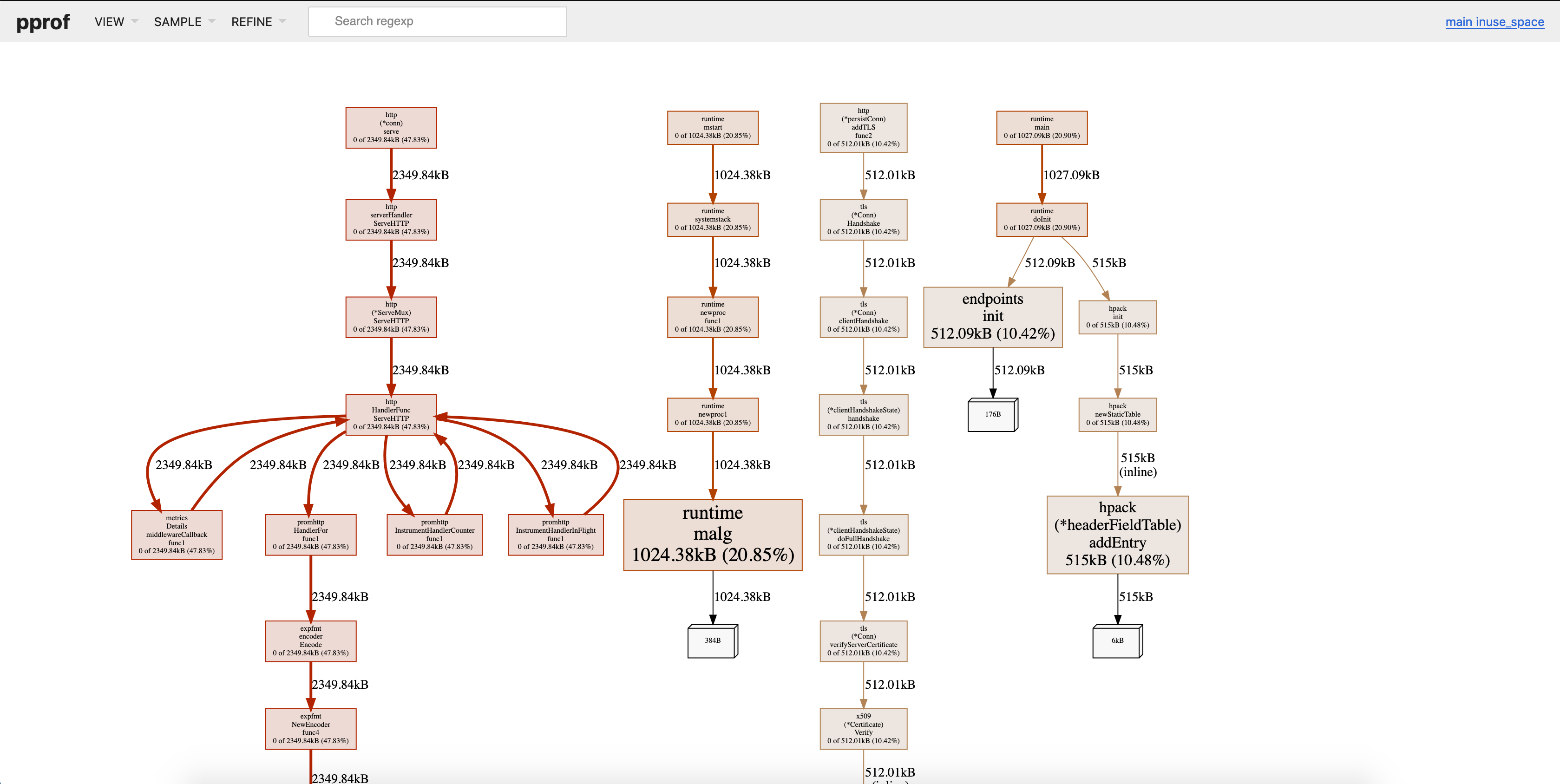

go内存泄漏案例,go切片内存泄露

其中有2条红色的很醒目的路径，这是造成内存占用升高的主要路径，需要重点分析。以右边这条红色路径为例，最终走到了 runtime.malg，碰到这个函数，联想前面总结的常见内存泄露场景，要有这样的意识：“这里可能涉及到goroutine泄露”，即goroutine创建了很多，但是goroutine没有正常执行结束，对应的协程使用的内存没有释放。

此时根据上述callgraph中的线索检查程序中启动goroutine的地方，以及goroutine是否有正常退出的逻辑保证，就能比较方便地定位到泄露原因了。

上述callgraph中展示了两条导致内存分配占用高的路径，但是其中左边一条可能是正常情况下的内存使用情况，而右边这条可能是异常情况。在分析阶段，我们需要有能力区分哪些内存分配是正常情况，哪些情况是异常情况。pprof提供了另外一个有用的选项 -diff_base，我们可以在没有服务没有请求时采样30s生成一个采样文件，然后有请求时，我们再采样30s生成另一个采样文件，并将两个采样文件进行对比。这样就容易分析出请求出现时，到底发生了什么。

gotoolpprof-http=':8081'\
-diff_baseheap-new-16:22:04:N.out\
heap-new-17:32:38:N.out

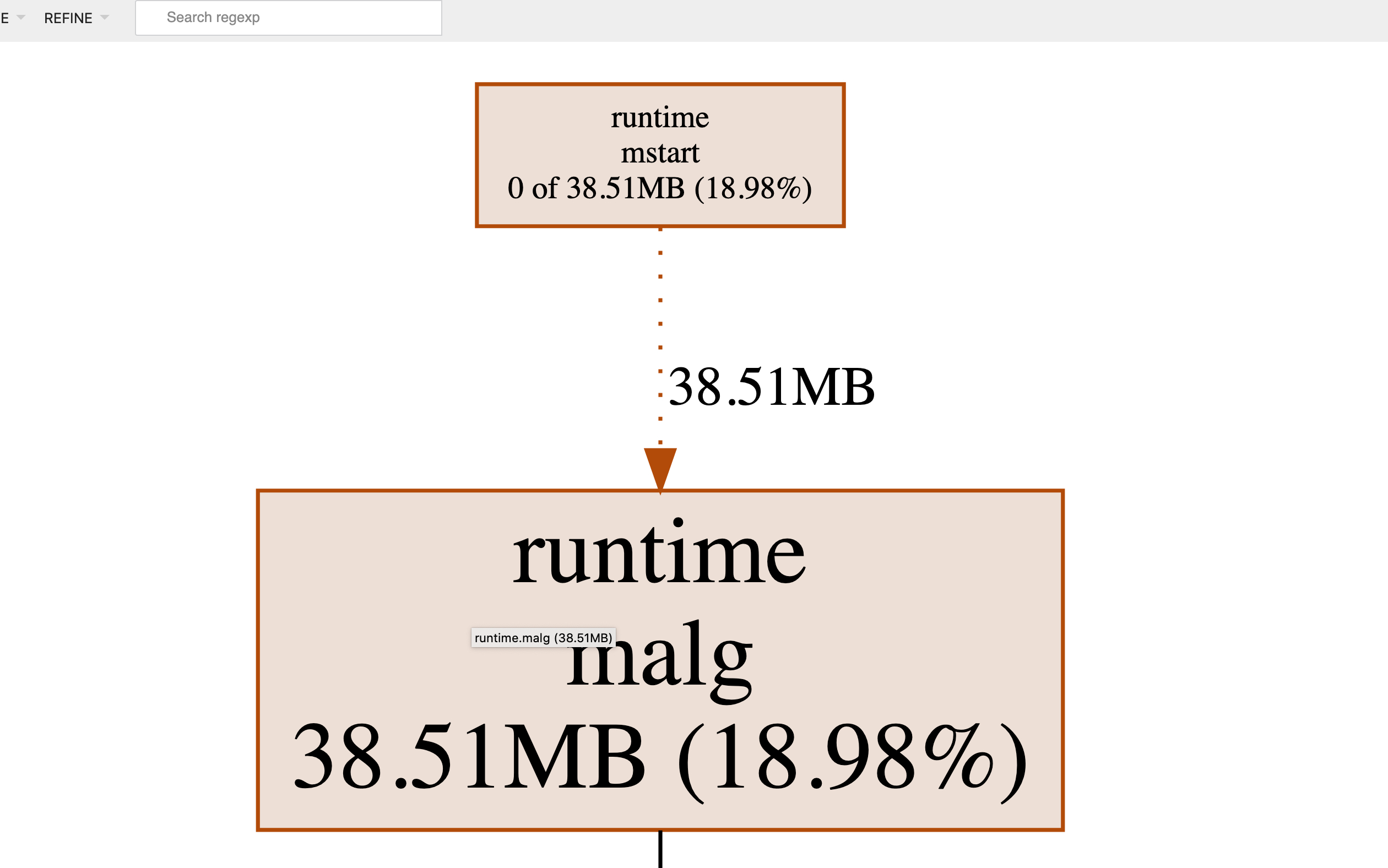

go内存泄漏案例,go切片内存泄露

这样问题看起来就更非常明确了，请求出现时处理请求的过程中启动了新协程执行处理。 runtime.malg就是创建新协程，其内部会分配协程栈，这个栈在使用过程中会动态伸缩，并在协程退出时才会被销毁。

由pprof heap确定了存在goroutine泄露问题，但我们还不知道此goroutine在何处启动的，为此，我们继续pprof goroutine。

gotoolpprof-seconds=10\
-http=:8081\
http://localhost:6060/debug/pprof/goroutines

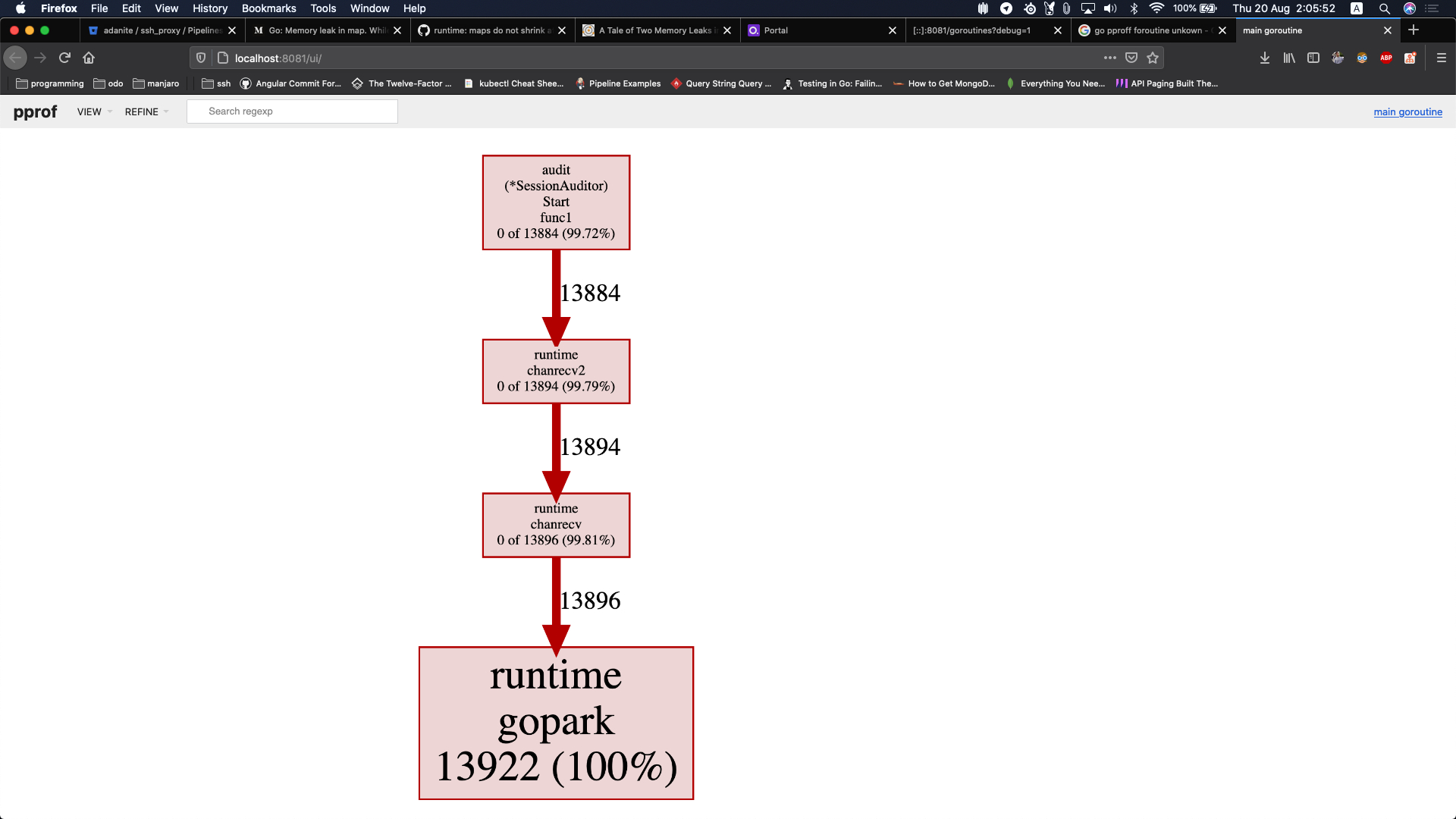

go内存泄漏案例,go切片内存泄露

现在通过上述callgraph我们很容易定位到goroutine是在哪里启动的了，回到源码中进一步确认：

varticker=time.NewTicker(time.Second)

gofunc(){
for{
select{
case<-ticker.C:
//doSomething
}
}
}()

funcsomefunc(...){
ticker.Stop()
}

原来当前协程因为ticker.C这个chan read操作阻塞了，需要注意的是 time.Ticker.Stop()之后，ticker.C这个chan不会被关闭，最好在执行ticker.Stop()的时候，同时设置一个通知chan，close该chan来表示ticker停止。

varticker=time.NewTicker(time.Second)
varchdone=make(chanint,1)

gofunc(){
for{
select{
case<-ticker.C:
sa.read()
case<-chdone:
return
}
}
}()

funcsomefunc(...){
ticker.Stop()
close(chdone)
}

这里介绍了pprof的使用方法，pprof是每个go开发人员都应该掌握的。希望读者借助这里的示例能帮助读者了解pprof的操作、分析过程，达到灵活运用的程度还需要日常开发工作中多实践。

借助bcc排查

pprof：这个我干不了

pprof对于分析纯go程序是非常有帮助的，但是对于cgo有点无能为力，cgo部分的代码已经跳出了go内存分配器的范围，采样也没用，那cgo部分出现内存泄露该如何排查呢？

  • 要确定进程是否出现了内存泄露，可以观察进程运行期间的内存占用情况，如借助top、free -m，或者其他运维平台的监控系统，一般k8s都集成了prometheus对容器运行情况进行了监视。如果内存占用随着时间延长一直增长，没有在合理的内存占用值附近稳定下来，或者已经出现了oom killed、容器重启的问题出现，则可以初步判定进程存在内存泄露；
  • 继续借助pprof工具排查go程序，如果pprof可以排查出明显的内存泄露问题，则内存泄漏问题可能是纯go部分代码引起，采用前面描述的分析、定位方法来解决；
  • 如果pprof工具采样之后，没有发现明显的内存泄露的端倪，且程序中存在cgo部分的代码，怀疑cgo部分的代码存在内存泄露，此时则需借助其他手段（pprof无能为力了）来进一步分析cgo部分的可能异常；

库函数：hook库函数

要分析内存是否存在泄漏，也可以考虑自己hook一下库函数，自己实现这种我们就不展开讨论了。还是看看有没有趁手的好工具，能实实在在地、靠谱地帮我们解决实际问题（尽管趁手的工具也可能也是基于某种hook的能力实现的）。

Kernel：谁能逃脱我的法眼

内存分配操作，一般会借助一些库函数来完成，内存分配器也会做一些分配算法的优化，这里不关心这些，最终的内存申请操作还是要由操作系统来代劳，而请求内核服务的操作则是通过系统调用。

操作系统提供了一些服务，允许对运行中的进程进行观测，以Linux为例，借助ptrace系统调用+PTRACE_SYSCALL，允许我们对一个运行中的进程执行的所有系统调用进行观测，ltrace、strace就是在此基础上实现的。

eBPF（extended BPF）的前辈是BPF（Berkeley Packet Filtering），BPF是一个ByteCode VM，它的数据模型限制于packet，经常用来做一些包分析，经典的如tcpdump。eBPF相比BPF，其数据模型不再受限于单一的packet，也不再只是用来分析packet的单一功能，可以利用它将eBPF program挂到任意的tracepoint或者kprobe去执行分析处理。这一下子打开了eBPF的万花筒，使得能够对内核各个子系统做观测、做性能分析，等等。

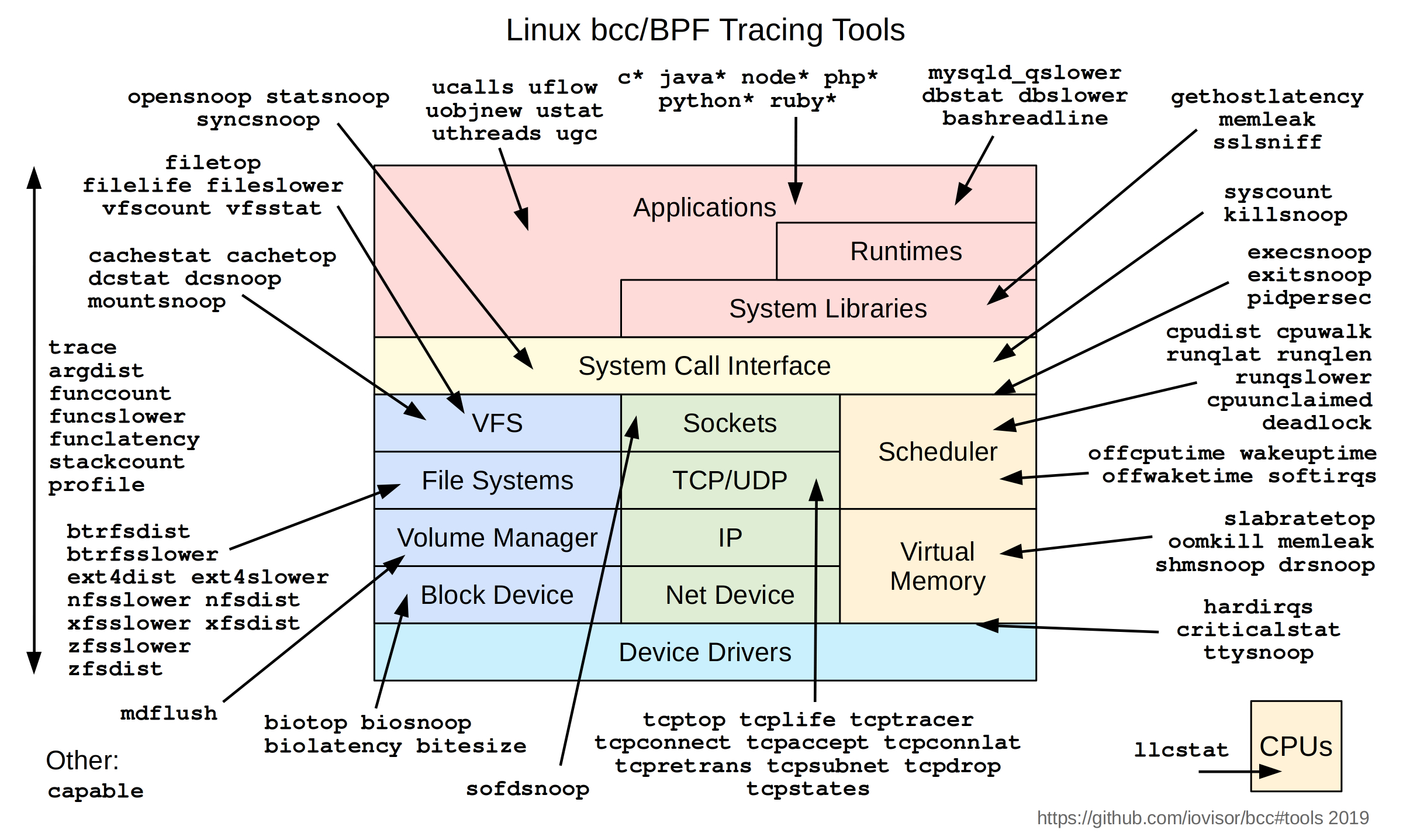

go内存泄漏案例,go切片内存泄露

各种测量、性能分析工具，真是亮瞎我的眼睛。

BCC (eBPF toolkit)：测量、性能分析

如何基于eBPF写eBPF program来完成希望的测量、分析呢，see iovisor/bcc：

BCC is a toolkit for creating efficient kernel tracing and manipulation programs, and includes several useful tools and examples. It makes use of extended BPF (Berkeley Packet Filters), formally known as eBPF, a new feature that was first added to Linux 3.15.

eBPF was described by Ingo Molnár as:

One of the more interesting features in this cycle is the ability to attach eBPF programs (user-defined, sandboxed bytecode executed by the kernel) to kprobes. This allows user-defined instrumentation on a live kernel image that can never crash, hang or interfere with the kernel negatively.

BCC makes BPF programs easier to write, with kernel instrumentation in C (and includes a C wrapper around LLVM), and front-ends in Python and lua. It is suited for many tasks, including performance analysis and network traffic control.

BCC算是一个开发套件，在它基础上开发eBPF program会更简单，该仓库内当前已经拥有了非常丰富的测量、分析工具，工具之丰富，只差我能不能全部掌握了，也想成为像Brendan Gregg一样的性能分析专家。

Brendan Gregg: Understanding all the Linux tracers to make a rational decision between them a huge undertaking. (I may be the only person who has come close to doing this.)

至于如何实现一个BCC工具，则非常简单，实际上就是写一个python文件，内部一个字符串包含一个c程序，c程序内调用封装的eBPF API，看一个简单的demo：

#file:hello-open-world-1.py

frombccimportBPF
program="""
#include<asm/ptrace.h>//forstructpt_regs
#include<linux/types.h>//formode_t
intkprobe__sys_open(structpt_regs*ctx,
char__user*pathname,intflags,mode_tmode){
bpf_trace_printk("sys_opencalled.\\n");
return0;
}
"""
b=BPF(text=program)
b.trace_print()

运行它：

nbsp;sudopythonhello-open-world-1.py

OK，BCC套件里面提供了工具memleak，用来对内存泄露进行分析，下面结合一个cgo内存泄露的示例分析，来了解下如何是使用。

建议能花点时间了解下linux tracing systems，see linux tracing systems & how they fit together ，理清下kprobe/uprobe/dtrace probes/kernel tracepoints的含义及工作原理，进而才能认识到eBPF的强大之处，不再展开了，看个示例。

BCC：内存泄露示例

下面先看一个cgo示例工程是如何组织的，示例项目取自https://github.com/2Dou/cgo-example，您可以直接从这里*载下**。

c-so/
├──Makefile
├──add
│├──Makefile
│├──add.go
│└──src
│├──add.c
│└──add.h
└──main.go

上述工程中，add/src/下add.h/add.c实现了一个add函数，add/add.go中定义了可导出的函数 Add(a, b int) int，内部通过cgo调用src下定义的int add(int, int)，add/Makefile将把add下的源文件整个编译构建打包成一个共享库文件libadd.so，供c-so/main.go调用。

c-so/main.go引用目录add下定义的package add中的Add函数，c-so/Makefile只是简单的go build编译动作，编译完成后 ./c-so运行会提示库文件libadd.so不存在，这是因为库路径加载问题，执行LD_LIBRARY_PATH=$LD_LIBRARY_PATH:$(pwd -p) ./c-so即可，程序正常运行。

OK，现在简单地篡改下src/add.c，将其内容修改如下，插入了一段不停申请内存的代码：

#include"add.h"
#include<stdio.h>
#include<stdlib.h>
#include<unistd.h>

intadd(inta,intb){

/*******insertmemoryleakagestart********/
inti=0;
intmax=0x7fffffff;

for(;i<max;i++){
int*p=(int*)malloc(sizeof(int)*8);
sleep(1);
if(i%2==0){
free(p)
}
}
/*******insertmemoryleakageend********/
returna+b;
}

现在重新执行make编译之后，再次运行，程序不断地malloc但是从来不free，内存一点点被泄露，现在我们看看如何借助memleak分析内存泄露的位置：

nbsp;/usr/share/bcc/tools/memleak-p$(pidofc-so)

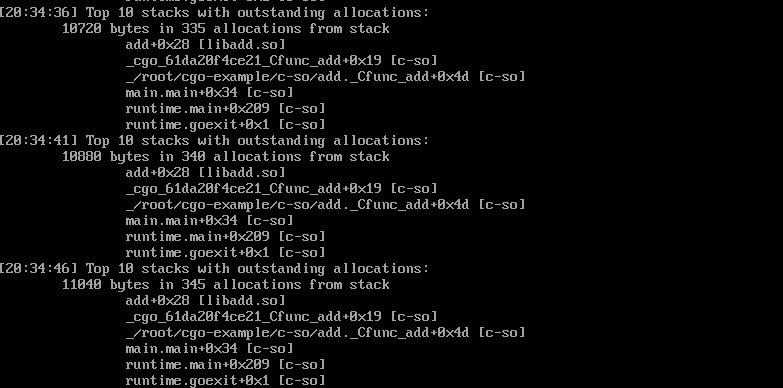

运行一段时间以后，memleak报告了内存分配的情况，显示的是“ top10的还没有释放的内存分配 ”的位置信息：

go内存泄漏案例,go切片内存泄露

Trace outstanding memory allocations that weren't freed .

Supports both user-mode allocations made with libc functions and kernel-mode allocations made with kmalloc/kmem_cache_alloc/get_free_pages and corresponding memory release functions.

从memleak报告的最后一条信息来看：

  • c-so这个程序运行过程中，调用了共享库libadd.so中的add函数；
  • 这个add函数执行了345+次内存分配操作，每次申请 sizeof(int)*8 bytes，总共分配了11048次内存；
  • 内存分配malloc操作的位置大约就是add函数起始处+0x28的指令位置，可以通过objdump -dS libadd.so求证。

现在我们可以看到内存分配的位置、次数、内存数量，但是这个报告中报道的并非实际泄露的内存数量，比如我们也有free，怎么没有统计到呢？运行 memleak -h查看下有哪些选项吧！

nbsp;/usr/share/bcc/tools/memleak-p$(pidofc-so)-t

go内存泄漏案例,go切片内存泄露

现在可以看到报告信息中包含了alloc entered/exited，free entered/exited，可以断定memleak也跟踪了内存释放，但是这里的报告还是不够直观，能否直接显示泄露的内存信息呢？可以但是要稍微修改下，下面看下实现，你会发现现有的报告信息也不妨碍分析。

bcc/memleak实现

不看下源码，总感觉心里有点虚，看下memleak这个eBPF program中的部分逻辑：

跟踪malloc：

intmalloc_enter(structpt_regs*ctx,size_tsize)
\->staticinlineintgen_alloc_enter(structpt_regs*ctx,size_tsize)
:内部会更新被观测进程已分配的内存数量（sizes记录）
intmalloc_exit(structpt_regs*ctx)
\->staticinlineintgen_alloc_exit(structpt_regs*ctx)
\->staticinlineintgen_alloc_exit2(structpt_regs*ctx,u64address)
：内部会记录当前申请的内存地址（allocs记录）
\->stack_traces.get_stackid(ctx,STACK_FLAGS)
：记录当前内存分配动作的调用栈信息（allocs中记录）

跟踪free：

intfree_enter(structpt_regs*ctx,void*address)
\->staticinlineintgen_free_enter(structpt_regs*ctx,void*address)
：从allocs中删除已经释放的内存地址

memleak周期性地对allocs进行排序，并按照sizes分配内存多少降序排列打印出来，因为memleak同时跟踪了malloc、free，所以一段时间后，周期性打印的内存分配调用栈位置，即可以认为是没有释放掉（泄露掉）的内存分配位置。

借助pmap/gdb排查

这也是一种比较通用的排查方式，在排查内存泄露问题时，根据实际情况（比如环境问题无法安装go，bcc之类分析工具等等）甚至可考虑先通过pmap这种方式来分析一下。总之，灵活选择合适的方式吧。

内存及pmap基础

进程中的内存区域分类可以按下面几个维度来划分，如果对这个不熟，建议参考以下文章，see:

  • Memory Types
  • Understanding Process Memory
  • Managing Memory

Private Shared Anonymous stackmallocmmap(anon+private)brk/sbrk mmap(anon+shared) File-backed mmap(fd, private)binary/shared libraries mmap(fd, shared)

借助pmap可以查看进程内存空间分布情况，包括地址范围、大小、内存映射情况，如：

nbsp;pmap-p<pid>#/proc/<pid>/maps

3009:./blah
00000000004000004Kr-x--/home/fruneau/blah
00000000004010004Krw---/home/fruneau/blah
00007fbb5da8700051200Krw-s-/dev/zero(deleted)
00007fbb60c870001536Kr-x--/lib/x86_64-linux-gnu/libc-2.13.so
00007fbb60e070002048K-----/lib/x86_64-linux-gnu/libc-2.13.so
00007fbb6100700016Kr----/lib/x86_64-linux-gnu/libc-2.13.so
00007fbb6100b0004Krw---/lib/x86_64-linux-gnu/libc-2.13.so
00007fbb6100c00020Krw---[anon]
00007fbb61011000128Kr-x--/lib/x86_64-linux-gnu/ld-2.13.so
00007fbb6122100012Krw---[anon]
00007fbb6122e0008Krw---[anon]
00007fbb612300004Kr----/lib/x86_64-linux-gnu/ld-2.13.so
00007fbb612310004Krw---/lib/x86_64-linux-gnu/ld-2.13.so
00007fbb612320004Krw---[anon]
00007fff9350f000132Krw---[stack]
00007fff9356e0004Kr-x--[anon]
ffffffffff6000004Kr-x--[anon]
total55132K


nbsp;pmap-x-p<pid>#/proc/<pid>/smaps

AddressKbytesRSSDirtyModeMapping
0000000000400000444r-x--blah
0000000000401000444rw---blah
00007fc3b50df000512005120051200rw-s-zero(deleted)
00007fc3b82df00015361880r-x--libc-2.13.so
00007fc3b845f000204800-----libc-2.13.so
00007fc3b865f000161616r----libc-2.13.so
00007fc3b8663000444rw---libc-2.13.so
00007fc3b8664000201212rw---[anon]
00007fc3b86690001281080r-x--ld-2.13.so
00007fc3b8879000121212rw---[anon]
00007fc3b8886000888rw---[anon]
00007fc3b8888000444r----ld-2.13.so
00007fc3b8889000444rw---ld-2.13.so
00007fc3b888a000444rw---[anon]
00007fff7e6ef0001321212rw---[stack]
00007fff7e773000440r-x--[anon]
ffffffffff600000400r-x--[anon]
----------------------------------
totalkB551325158451284

上述命令只是输出信息的详细程度不同，在我们理解了进程的内存类型、pmap的使用之后，就可以对发生内存泄露的程序进行一定的分析。

排查示例：用例准备

比如现在写一个测试用的程序，目录结构如下：

leaks
|--conf
|`--load.go
|--go.mod
|--leaks
|--main.go
`--task
`--load.go

file: main.go，该文件启动conf、task下的两个逻辑，conf.LoadConfig中启动一个循环，每次申请1KB内存并全部设置为字符C，task.NewTask启动一个循环，每次申请1KB内存并设置为字符T。 conf.LoadConfig循环体每次迭代间隔1s，task.NewTask循环体每次迭代间隔2s。

packagemain

import(
"leaks/conf"
"leaks/task"
)

funcmain(){
conf.LoadConfig("aaa")
task.NewTask("bbb")

select{}
}

file: conf/load.go:

packageconf

import(
"time"
)

typeConfigstruct{
Astring
Bstring
Cstring
}

funcLoadConfig(fpstring)(*Config,error){

kb:=1<<10

gofunc(){
for{
p:=make([]byte,kb,kb)
fori:=0;i<kb;i++{
p[i]='C'
}
time.Sleep(time.Second*1)
println("conf")
}
}()
return&Config{},nil
}

file: task/load.go

packagetask

import(
"time"
)

typeTaskstruct{
Astring
Bstring
Cstring
}

funcNewTask(namestring)(*Task,error){

kb:=1<<10

//startasyncprocess
gofunc(){
for{
p:=make([]byte,kb,kb)
fori:=0;i<kb;i++{
p[i]='T'
}
time.Sleep(time.Second*2)
println("task")
}
}()

return&Task{},nil
}

然后编译构建 go build 输出可执行文件 leaks，大家可能注意到了，我这样的写法并没有什么特殊的，是会被garbage collector回收掉的，顶多是回收快慢而已。

是的，为了方便我们解释pmap排查方法的运用，我们假定这里的内存泄露掉了，怎么个假定法呢？我们关闭gc，运行程序的时候 GOGC=off ./leaks.

你可以用 top -p $(pidof leaks) 验证下RSS飞涨。

排查示例：搜索可疑内存区

比如，你发现有段anon内存区域，它的占用内存数量在增加，或者这样的区段数量再增加（可以对比前后两次的pmap输出来发现）:

nbsp;pmap-x$(pidofleaks)>1.txt
nbsp;pmap-x$(pidofleaks)>2.txt

86754:./leaks/leaks86754:./leaks/leaks
AddressKbytesRSSDirtyModeMappingAddressKbytesRSSDirtyModeMapping
00000000004000003723720r-x--leaks00000000004000003723720r-x--leaks
000000000045d0004964760r----leaks000000000045d0004964760r----leaks
00000000004d9000161616rw---leaks00000000004d9000161616rw---leaks
00000000004dd0001763636rw---[anon]00000000004dd0001763636rw---[anon]
000000c0000000001310729850898508rw---[anon]|000000c000000000131072104652104652rw---[anon]
00007f26010ad0003981632363236rw---[anon]|00007f26010ad0003981634323432rw---[anon]
00007f260378f00026368000-----[anon]00007f260378f00026368000-----[anon]
00007f261390f000444rw---[anon]00007f261390f000444rw---[anon]
00007f261391000029356400-----[anon]00007f261391000029356400-----[anon]
00007f26257bf000444rw---[anon]00007f26257bf000444rw---[anon]
00007f26257c00003669200-----[anon]00007f26257c00003669200-----[anon]
00007f2627b95000444rw---[anon]00007f2627b95000444rw---[anon]
00007f2627b96000458000-----[anon]00007f2627b96000458000-----[anon]
00007f262800f000444rw---[anon]00007f262800f000444rw---[anon]
00007f262801000050800-----[anon]00007f262801000050800-----[anon]
00007f262808f0003844444rw---[anon]00007f262808f0003844444rw---[anon]
00007ffcdd81c0001321212rw---[stack]00007ffcdd81c0001321212rw---[stack]
00007ffcdd86d0001200r----[anon]00007ffcdd86d0001200r----[anon]
00007ffcdd870000840r-x--[anon]00007ffcdd870000840r-x--[anon]
ffffffffff600000400r-x--[anon]ffffffffff600000400r-x--[anon]
--------------------------------------------------------------------------
totalkB771528102720101868|totalkB771528109060108208

我们注意到起始地址为 000000c000000000 和 00007f26010ad000的区间，RSS内存数量涨了，这说明这里物理内存占用增加了，在明确程序存在内存泄露的前提下，这样的内存区域可以作为可疑内存区去分析一下。或者，是有连续的大内存区块，也是待分析的可疑对象，或者这样的内存区块数量比较多，也应该作为可疑的分析对象。

找到可疑内存区域之后，就尝试里面的内容导出，导出后再借助strings、hexdump等工具进行分析，通常会打印出一些字符串相关的信息，一般这些信息会帮我们联想起，这些数据大约对应着程序中的哪些数据结构、代码逻辑。

先执行 gdb -p $(pidof leaks) attach 目标进程，然后执行下面两条命令导出可疑内存区：

gdb>dumpbinarymemoryleaks.p10x000000c0000000000x000000c000000000+131072*1024
gdb>dumpbinarymemoryleaks.p20x00007f26010ad0000x00007f26010ad000+39816*1024

然后尝试用strings或者hexdump

nbsp;stringsleaks.p1

...
e[0;34m\]\W\[$(git_color)\]$(git_branch)\[\e[0;37m\]$\[\e[0m\]
SXPFD
EXPF
e[0;34m\]\W\[$(git_color)\]$(git_branch)\[\e[0;37m\]$\[\e[0m\]
SXPFD
EXPF
TTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTT...CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC...TTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTT....CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC...TTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC...TTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC...TTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTT
...

or

nbsp;hexdump-Cleaks.p1

...

0008e0300000000000000000089df00035430000|............5C..|
0008e04001000000000000000000000000000000|................|
0008e05000000000000000000000000000000000|................|
*
0009000000e00800c00000000000000000000000|................|
0009001000000000000000000000000000000000|................|
*
0010000054545454545454545454545454545454|TTTTTTTTTTTTTTTT|
*
0020000043434343434343434343434343434343|CCCCCCCCCCCCCCCC|
*
0040000054545454545454545454545454545454|TTTTTTTTTTTTTTTT|
*
0050000043434343434343434343434343434343|CCCCCCCCCCCCCCCC|
*
0070000054545454545454545454545454545454|TTTTTTTTTTTTTTTT|
*
0080000043434343434343434343434343434343|CCCCCCCCCCCCCCCC|
*
00a0000054545454545454545454545454545454|TTTTTTTTTTTTTTTT|
*
00b0000043434343434343434343434343434343|CCCCCCCCCCCCCCCC|
*
00d0000054545454545454545454545454545454|TTTTTTTTTTTTTTTT|
*
00e0000043434343434343434343434343434343|CCCCCCCCCCCCCCCC|
*
0100000054545454545454545454545454545454|TTTTTTTTTTTTTTTT|
*

...

通过这里的输出，假定这里的输出的一些字符串信息 CCCCCCC or TTTTTTTTT是一些更有意义的信息，那它可能帮助我们和程序中的一些数据结构、代码逻辑建立起联系，比如看到这里的字符串C，就想到了配置加载conf.LoadConfig，看到字符串T，就想到了task.NewTask，然后进去追查一下一般也能定位到问题所在。

使用 gcore转储整个进程，原理类似，gcore会在转储完后立即detach进程，比手动dump速度快，对traced进程的影响时间短，但是转储文件一般比较大（记得ulimit -c设置下），core文件使用hexdump分析的时候也可以选择性跳过一些字节，以分析感兴趣的可疑内存区。

其他方式

内存泄露的排查方式有很多，工具也有很多，比如比较有名的valgrind，但是我测试过程中，valgrind没有像bcc那样精确地定位到内存泄露的位置，可能是我的使用方式有问题。see debugging cgo memory leaks，感兴趣的可以自己研究下。这里就不再展开了。

总结

本文介绍了内存泄露相关的定位分析方法，虽然是面向go开发介绍的，但是也不局限于go，特别是ebpf-memleak的应用，应用面应该会比较广。eBPF对Linux内核版本是有严格要求的，使用过程中也需要注意，eBPF的优势在于它为观测、测量提供了强大的基础支持，所以bcc才会有那么多的分析工具，是不可多得利器。

本文也算是自己对eBPF的一个初步尝试吧，希望掌握它对自己以后的工作有帮助。开发人员手上可以用的工具不少，但是真的好用、省心的也没有那么多，如果能bcc一行代码定位到位置，我想我也不会愿意pmap、gdb gcore、gdb dump、strings+hexdump...来分析内存泄露位置，当然如果情况不允许，比如内核版本不支持bcc，那还是灵活选择合适的方式。

除了掌握上述分析方法，解决已经引入的内存泄露问题，研发流程上也应该多关注上线前测试、CR等基础的规范，尽量将一些问题前置，早发现早解决。

参考内容

  • memory leaking, https://go101.org/article/memory-leaking.html
  • golang memory leaks, https://yuriktech.com/2020/11/07/Golang-Memory-Leaks/#:~:text=A%20goroutine%20leak%20happens%20when,an%20out%20of%20memory%20exception.
  • finding memory leak in cgo, https://kirshatrov.com/2019/11/04/finding-memory-leak-in-cgo/
  • dive-into-bpf, https://qmonnet.github.io/whirl-offload/2016/09/01/dive-into-bpf/
  • introduction to xdp and ebpf, https://blogs.igalia.com/dpino/2019/01/07/introduction-to-xdp-and-ebpf/
  • debugging cgo memory leaks, https://www.youtube.com/watch?v=jiSWxpcuGPw
  • choosing a linux tracer, http://www.brendangregg.com/blog/2015-07-08/choosing-a-linux-tracer.html
  • taming tracepoints in the linux kernel, https://blogs.oracle.com/linux/taming-tracepoints-in-the-linux-kernel
  • linux tracing systems & how they fit together, https://jvns.ca/blog/2017/07/05/linux-tracing-systems/
