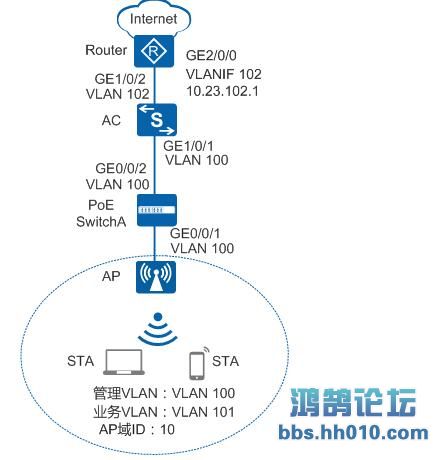

大中型WLAN网络简介本文介绍的WLAN网络是指利用频率为2.4GHz或5GHz的射频信号作为传输介质的无线局域网，相对于有线网络的铺设成本高，不便于网络调整和扩展、位置固定，移动性差等缺点，WLAN网络以其低廉的铺设成本、便捷的网络调整和扩展、灵活的可移动性获得了越来越广泛的应用。大中型WLAN网络定位为大中型企业总部、大型分支机构、高校、机场等场所。组网需求如图1，AC连接园区出口网关Router，并通过PoE交换机与AP连接，PoE交换机为AP供电。用户希望通过WLAN部署，提供名为“test”的无线网络方便用户随时随地接入。同时，用户希望通过路由器Router来做DHCP Server为用户提供10.10.10.0/24网段的IP地址，并在AC上对用户进行集中控制和管理。图1 配置中型网络WLAN基本业务组网图

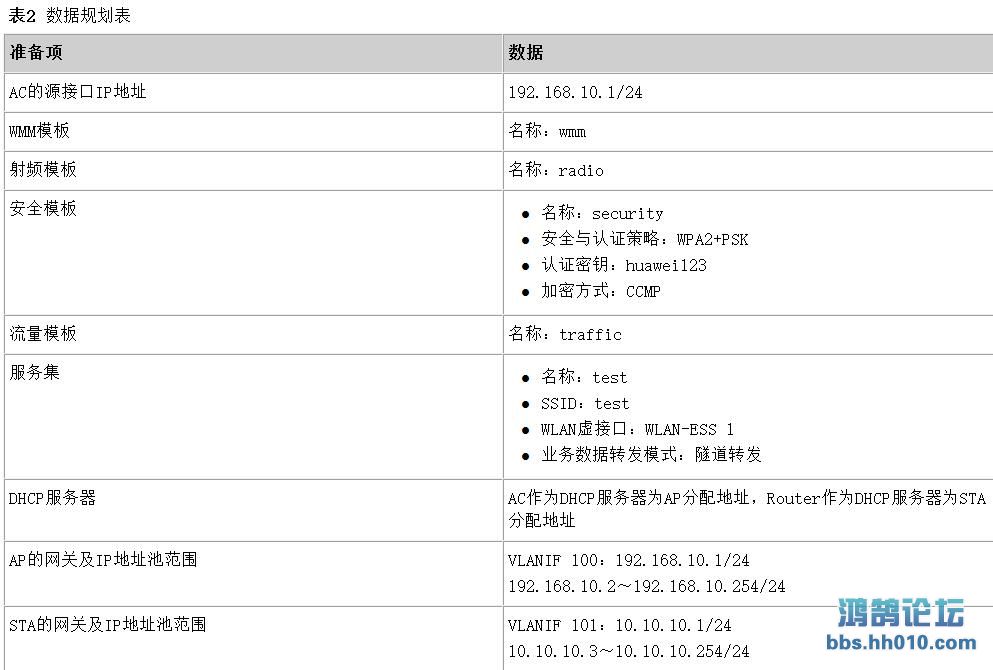

配置思路采用如下的思路配置中型网络的WLAN基本业务：配置AP、AC和上层网络设备之间实现网络互通。在AC上配置基于接口的DHCP服务器为AP分配IP地址，同时配置AC作为DHCP中继，由AC连接的路由器为STA分配IP地址。配置WLAN基本业务，保证用户能够通过WLAN网络接入Internet。操作步骤在AC上配置NAC模式为统一模式（缺省值，不需配置）。配置SwitchA和AC，使AP与AC之间能够传输CAPWAP报文# 配置SwitchA连接AP的接口GE0/0/1加入VLAN100（管理VLAN），SwitchA连接AC的接口GE0/0/2加入VLAN100。<HUAWEI> system-view[HUAWEI] sysname SwitchA[SwitchA] vlan batch 100[SwitchA] interface gigabitethernet 0/0/1[SwitchA-GigabitEthernet0/0/1] port link-type trunk[SwitchA-GigabitEthernet0/0/1] port trunk pvid vlan 100[SwitchA-GigabitEthernet0/0/1] port trunk allow-pass vlan 100[SwitchA-GigabitEthernet0/0/1] quit[SwitchA] interface gigabitethernet 0/0/2[SwitchA-GigabitEthernet0/0/2] port link-type trunk[SwitchA-GigabitEthernet0/0/2] port trunk allow-pass vlan 100[SwitchA-GigabitEthernet0/0/2] quit# 配置AC连接SwitchA的接口GE1/0/1加入VLAN100。[HUAWEI] sysname AC[AC] vlan batch 100[AC] interface gigabitethernet 1/0/1[AC-GigabitEthernet1/0/1] port link-type trunk[AC-GigabitEthernet1/0/1] port trunk allow-pass vlan 100[AC-GigabitEthernet1/0/1] quit配置AC与上层网络设备互通# 配置VLANIF101（业务VLAN）和VLANIF102。[AC] vlan batch 101 102[AC] interface vlanif 101[AC-Vlanif101] ip address 10.10.10.1 24[AC-Vlanif101] quit[AC] interface vlanif 102[AC-Vlanif102] ip address 10.11.10.2 24[AC-Vlanif102] quit# 配置AC的缺省路由。[AC] ip route-static 0.0.0.0 0.0.0.0 10.11.10.1 //配置缺省路由指向Router# 配置AC连接Router的接口GE1/0/2加入VLAN102。[AC] interface gigabitethernet 1/0/2[AC-GigabitEthernet1/0/2] port link-type trunk[AC-GigabitEthernet1/0/2] port trunk allow-pass vlan 102[AC-GigabitEthernet1/0/2] quit配置AC给AP分配IP地址，Router给STA分配IP地址。# 配置AC通过接口地址池为AP分配IP地址。[AC] dhcp enable[AC] interface vlanif 100[AC-Vlanif100] ip address 192.168.10.1 24[AC-Vlanif100] dhcp select interface //配置基于接口的地址池[AC-Vlanif100] quit# 配置AC作为DHCP中继并 使能 DHCP中继探测用户表项功能。[AC] interface vlanif 101[AC-Vlanif101] dhcp select relay //配置DHCP中继功能[AC-Vlanif101] dhcp relay server-ip 10.11.10.1 //配置DHCP中继所代理的DHCP服务器地址为Router上的IP地址10.11.10.1[AC-Vlanif101] quit# 配置Router作为DHCP服务器为STA分配IP地址。<Huawei> system-view[Huawei] sysname Router[Router] dhcp enable[Router] ip pool sta //配置地址池为STA分配IP地址[Router-ip-pool-sta] gateway-list 10.10.10.1[Router-ip-pool-sta] network 10.10.10.0 mask 24[Router-ip-pool-sta] quit[Router] vlan batch 102[Router] interface vlanif 102[Router-Vlanif102] ip address 10.11.10.1 24[Router-Vlanif102] dhcp select global //配置全局的地址池[Router-Vlanif102] quit[Router] interface gigabitethernet 2/0/0[Router-GigabitEthernet2/0/0] port link-type trunk[Router-GigabitEthernet2/0/0] port trunk allow-pass vlan 102[Router-GigabitEthernet2/0/0] quit[Router] ip route-static 10.10.10.0 24 10.11.10.2 //配置Router到达10.10.10.0/24网段的路由配置AC的系统参数# 配置AC的国家码。[AC] wlan ac-global country-code cnWarning: Modify the country code may delete configuration on those AP which usethe global country code and reset them, continue?[Y/N]:y# 配置AC ID和运营商标识。[AC] wlan ac-global ac id 1 carrier id other //AC ID缺省为0，修改为1# 配置AC的源接口。[AC] wlan[AC-wlan-view] wlan ac source interface vlanif 100在AC上管理AP# 现场获取AP的MAC地址后，查看AP的设备类型ID。[AC-wlan-view] display ap-type all All AP types information: ------------------------------------------------------------------------------ ID Type ------------------------------------------------------------------------------ 17 AP6010SN-GN 19 AP6010DN-AGN 21 AP6310SN-GN 23 AP6510DN-AGN 25 AP6610DN-AGN 27 AP7110SN-GN 28 AP7110DN-AGN 29 AP5010SN-GN 30 AP5010DN-AGN 31 AP3010DN-AGN 33 AP6510DN-AGN-US 34 AP6610DN-AGN-US 35 AP5030DN 36 AP5130DN 37 AP7030DE 38 AP2010DN 39 AP8130DN 40 AP8030DN 42 AP9330DN 43 AP4030DN 44 AP4130DN 45 AP3030DN 46 AP2030DN ------------------------------------------------------------------------------ Total number: 23# 配置AP认证模式为MAC地址认证（缺省值，不需配置）。根据查询到的AP设备类型ID，离线添加AP。假设AP的类型为AP6010DN-AGN，其MAC地址为60de-4476-e360。[AC-wlan-view] ap id 0 type-id 19 mac 60de-4476-e360[AC-wlan-ap-0] quit# 配置AP域并将AP加入到AP域。[AC-wlan-view] ap-region id 10 //新建AP域10[AC-wlan-ap-region-10] quit[AC-wlan-view] ap id 0[AC-wlan-ap-0] region-id 10 //将AP加入域10[AC-wlan-ap-0] quit# 将AP 上电 后，可以查看到AP的“AP State”字段为“normal”。[AC-wlan-view] display ap all All AP information: Normal[1],Fault[0],Commit-failed[0],Committing[0],Config[0],Download[0] Config-failed[0],Standby[0],Type-not-match[0],Ver-mismatch[0] ------------------------------------------------------------------------------ AP AP AP Profile AP AP /Region ID Type MAC ID State Sysname ------------------------------------------------------------------------------ 0 AP6010DN-AGN 60de-4476-e360 0/10 normal ap-0 ------------------------------------------------------------------------------ Total number: 1,printed: 1 配置WLAN业务参数# 创建名为“wmm”的WMM模板。[AC-wlan-view] wmm-profile name wmm id 1[AC-wlan-wmm-prof-wmm] quit# 创建名为“radio”的射频模板，绑定WMM模板“wmm”。[AC-wlan-view] radio-profile name radio id 1[AC-wlan-radio-prof-radio] wmm-profile name wmm[AC-wlan-radio-prof-radio] quit[AC-wlan-view] quit# 创建WLAN-ESS接口1。[AC] interface wlan-ess 1[AC-Wlan-Ess1] port trunk allow-pass vlan 101[AC-Wlan-Ess1] quit# 创建名为“security”的安全模板。[AC] wlan[AC-wlan-view] security-profile name security id 1[AC-wlan-sec-prof-security] security-policy wpa2 //配置安全策略为WPA2[AC-wlan-sec-prof-security] wpa2 authentication-method psk pass-phrase cipher huawei123 encryption-method ccmp //配置加密方式为PSK+CCMP[AC-wlan-sec-prof-security] quit# 创建名为“traffic”的流量模板。[AC-wlan-view] traffic-profile name traffic id 1[AC-wlan-traffic-prof-traffic] quit# 创建名为“test”的服务集并绑定WLAN-ESS接口、安全模板和流量模板。[AC-wlan-view] service-set name test id 1[AC-wlan-service-set-test] ssid test //配置SSID名称为test[AC-wlan-service-set-test] wlan-ess 1[AC-wlan-service-set-test] security-profile name security[AC-wlan-service-set-test] traffic-profile name traffic[AC-wlan-service-set-test] service-vlan 101 //缺省情况下服务集的VLAN ID为1，修改服务集的VLAN ID为101[AC-wlan-service-set-test] forward-mode tunnel //配置业务转发模式为隧道转发[AC-wlan-service-set-test] quit配置VAP并下发# 配置VAP。[AC-wlan-view] ap 0 radio 0[AC-wlan-radio-0/0] radio-profile name radio //配置射频模板绑定到射频上[AC-wlan-radio-0/0] service-set name test //配置服务集绑定到射频上[AC-wlan-radio-0/0] quit# 提交配置。[AC-wlan-view] commit ap 0Warning: Committing configuration may cause service interruption, continue?[Y/N]:y验证配置结果配置完成后，通过display vap ap 0 radio 0命令，可以查看到VAP已创建成功。[AC-wlan-view] display vap ap 0 radio 0 All VAP Information(Total-1): SS: Service-set BP: Bridge-profile MP: Mesh-profile ---------------------------------------------------------------------- AP ID Radio ID SS ID BP ID MP ID WLAN ID BSSID Type ---------------------------------------------------------------------- 0 0 1 - - 1 60DE-4476-E360 service ---------------------------------------------------------------------- Total: 1 STA搜索到名为“test”的无线网络并关联后，无线PC能够被分配相应的IP地址，用户输入预共享密钥可以访问无线网络，在AC上执行display station assoc-info命令，可以查看到用户已经接入到无线网络“test”中。[AC-wlan-view] display station assoc-info ap 0 radio 0 ------------------------------------------------------------------------------ STA MAC AP ID RADIO ID SS ID SSID ------------------------------------------------------------------------------ 9021-55dc-3e17 0 0 1 test ------------------------------------------------------------------------------ Total stations: 1
