产品用途 1、卧式热水管道泵广泛适用于：冶金、化工、纺织、造纸以及宾馆饭店等锅炉热水增压循环输送及城市采暖系统，使用温度t<100℃。

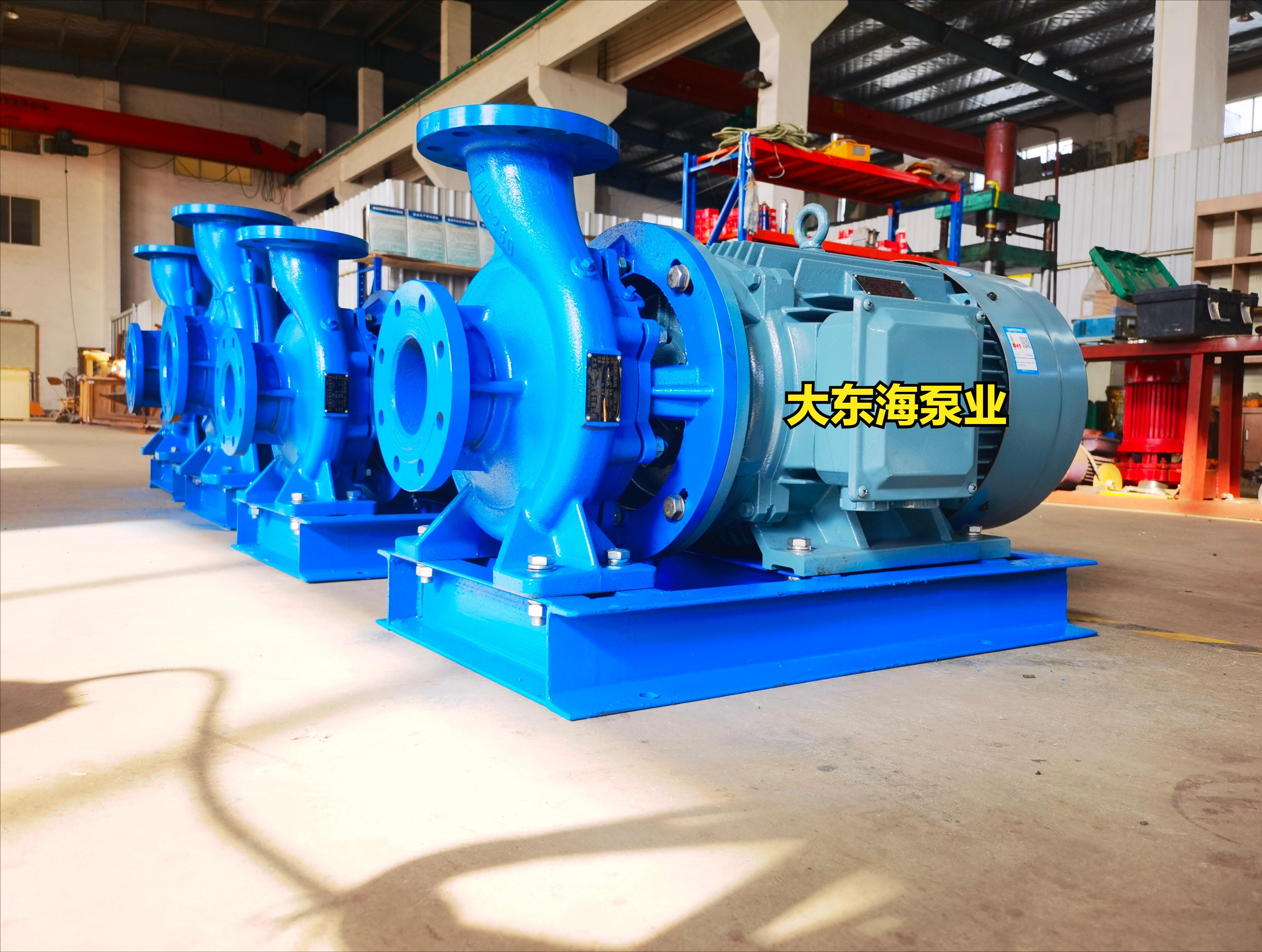

卧式管道离心泵-大东海泵业无锡有限公司
2、卧式管道泵供输送清水及物理化学性质类似于清水的其它液体之用，适用于工业和城市给排水、高层建筑增压送水、园林喷灌、消防增压、远距离输送、暖通制冷循环、浴室等冷暖水循环增压及设备配套，使用温度t<80℃。3、卧式不锈钢管道泵，供输送不含固体颗粒，具有腐蚀性、粘度类似于水的液体，适用于石油、化工、冶金、电力、造纸、食品制药和合成纤维等部门，使用温度为-20℃～+120℃。4、防爆卧式管道泵供输送汽油、煤油、柴油等油类产品或易燃、易爆液体，被输送介质温度为-20～ +120℃。

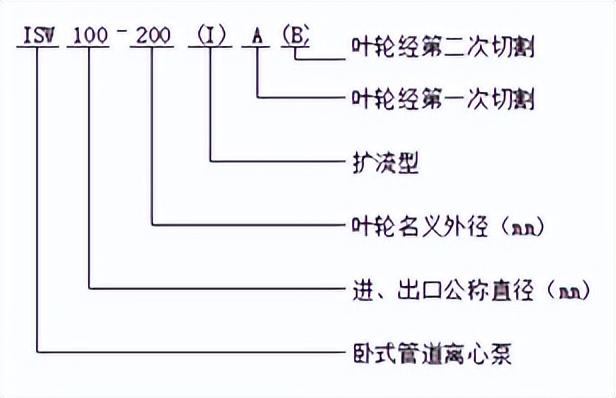

型号意义
性能参数
|
型号 |
口径mm |
流量 |
扬程m |
效率% |
转速r/min |
电机功率KW |
必需汽蚀余量（NPSH）r |
||
|
m3/h |
L/S |
||||||||
|
ISW 15-80 |
15 |
1.11.52.0 |
0.30.420.55 |
8.587 |
263434 |
2800 |
0.18 |
2.3 |
|
|
ISW 20-110 |
20 |
1.82.53.3 |
0.50.690.91 |
161513.5 |
253435 |
2800 |
0.37 |
2.3 |
|
|
ISW 20-160 |
20 |
1.82.53.3 |
0.50.690.91 |
333230 |
192523 |
2900 |
0.75 |
2.3 |
|
|
ISW 25-110 |
25 |
2.845.2 |
0.781.111.44 |
161513.5 |
344241 |
2900 |
0.55 |
2.3 |
|
|
ISW 25-125 |
25 |
2.845.2 |
0.781.111.44 |
20.62018 |
283635 |
2900 |
0.75 |
2.3 |
|
|
ISW 25-125A |
25 |
2.53.64.6 |
0.691.01.28 |
171614.4 |
35 |
2900 |
0.55 |
2.3 |
|
|
ISW 25-160 |
25 |
2.845.2 |
0.781.111.44 |
333230 |
243233 |
2900 |
1.5 |
2.3 |
|
|
ISW 25-160A |
25 |
2.63.74.9 |
0.121.031.36 |
292826 |
31 |
2900 |
1.1 |
2.3 |
|
|
型号 |
口径mm |
流量 |
扬程m |
效率% |
转速r/min |
电机功率KW |
必需汽蚀余量（NPSH）r |
||
|
m3/h |
L/S |
||||||||
|
ISW 32-100(I) |
32 |
4.46.38.3 |
1.221.752.32 |
13.212.511.3 |
485453 |
2900 |
0.75 |
2.0 |
|
|
ISW 32-125 |
32 |
3.556.5 |
0.970.391.8 |
222018 |
404442 |
2900 |
0.75 |
2.3 |
|
|
ISW 32-125A |
32 |
3.14.55.8 |
0.861.251.61 |
17.61614.4 |
43 |
2900 |
0.55 |
2.3 |
|
|
ISW 32-160(I) |
32 |
4.46.38.3 |
1.221.752.32 |
33.23230.2 |
344042 |
2900 |
2.2 |
2.0 |
|
|
ISW 32-200(I) |
32 |
4.46.38.3 |
1.221.752.32 |
50.55048 |
263335 |
2900 |
4 |
2.0 |
|
|
ISW 32-200A |
32 |
2.845.2 |
0.781.111.44 |
44.64442.7 |
344042 |
2900 |
2.2 |
2.0 |
|
|
型号 |
口径mm |
流量 |
扬程m |
效率% |
转速r/min |
电机功率KW |
必需汽蚀余量（NPSH）r |
||
|
m3/h |
L/S |
||||||||
|
ISW 40-100 |
40 |
4.46.38.3 |
1.221.752.31 |
13.212.511.3 |
485453 |
2900 |
0.55 |
2.3 |
|
|
ISW 40-100A |
40 |
3.95.67.4 |
1.081.562.06 |
10.6109 |
52 |
2900 |
0.37 |
2.3 |
|
|
ISW 40-125 |
40 |
4.46.38.3 |
1.221.752.31 |
212018 |
414643 |
2900 |
1.1 |
2.3 |
|
|
ISW 40-125A |
40 |
3.95.67.4 |
1.081.562.06 |
17.61614.4 |
404541 |
2900 |
0.75 |
2.3 |
|
|
ISW 40-160 |
40 |
4.46.38.3 |
1.221.752.31 |
333230 |
354040 |
2900 |
2.2 |
2.3 |
|
|
ISW 40-160A |
40 |
4.15.97.8 |
1.141.642.17 |
292826.3 |
343939 |
2900 |
1.5 |
2.3 |
|
|
ISW 40-160B |
40 |
3.85.57.2 |
1.061.532.0 |
25.52422.5 |
343837 |
2900 |
1.1 |
2.3 |
|
|
ISW 40-200 |
40 |
4.46.38.3 |
1.221.752.31 |
515048 |
263332 |
2900 |
4 |
2.3 |
|
|
ISW 40-200A |
40 |
4.15.97.8 |
1.141.642.17 |
454442 |
263130 |
2900 |
3 |
2.3 |
|
|
ISW 40-200B |
40 |
3.75.37.0 |
1.031.471.94 |
383634.5 |
29 |
2900 |
2.2 |
2.3 |
|
|
ISW 40-250 |
40 |
4.46.38.3 |
1.221.752.31 |
828074 |
242828 |
2900 |
7.5 |
2.3 |
|
|
ISW 40-250A |
40 |
4.15.97.8 |
1.141.642.17 |
727065 |
242827 |
2900 |
5.5 |
2.3 |
|
|
ISW 40-250B |
40 |
3.85.57.0 |
1.061.531.94 |
61.56056 |
232726 |
2900 |
4 |
2.3 |
|
