ss 作用是 f q，因为怕关键词会让文章被干掉，所以用了别名。本文纯粹是从分析技术的角度出发。因为 ss 现在的版本已经很复杂了，eventloop, 状态机，支持 udp 。为了简单讲原理，我们用 0.9 的版本来说明。
首先上图

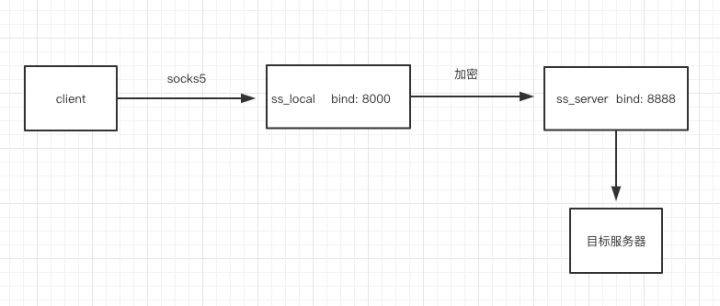

这个是 ss 的架构图，用 ss 做代理的时候，一般本地运行个 ss_local.py ，然后服务器再运行 ss_server.py。
client 和 ss_local 主要通过 socks5 协议通信，而 ss_local 和 ss_server 之间就是对称加密的 tcp 数据。
ss_local 主要代码如下
class Socks5Server(SocketServer.StreamRequestHandler):
''' RequesHandlerClass Definition '''
def handle_tcp(self, sock, remote):
try:
fdset = [sock, remote]
while True:
r, w, e = select.select(fdset, [], []) # use select I/O multiplexing model
if sock in r: # if local socket is ready for reading
data = sock.recv(4096)
if len(data) <= 0: # received all data
break
result = send_all(remote, self.encrypt(data)) # send data after encrypting
if result < len(data):
raise Exception('failed to send all data')
if remote in r: # remote socket(proxy) ready for reading
data = remote.recv(4096)
if len(data) <= 0:
break
result = send_all(sock, self.decrypt(data)) # send to local socket(application)
if result < len(data):
raise Exception('failed to send all data')
finally:
sock.close()
remote.close()
def encrypt(self, data):
return data.translate(encrypt_table)
def decrypt(self, data):
return data.translate(decrypt_table)
def send_encrypt(self, sock, data):
sock.send(self.encrypt(data))
def handle(self):
try:
sock = self.connection # local socket [127.1:port]
sock.recv(262) # Sock5 Verification packet
sock.send("\x05\x00") # Sock5 Response: '0x05' Version 5; '0x00' NO AUTHENTICATION REQUIRED
# After Authentication negotiation
data = self.rfile.read(4) # Forward request format: VER CMD RSV ATYP (4 bytes)
mode = ord(data[1]) # CMD == 0x01 (connect)
if mode != 1:
logging.warn('mode != 1')
return
addrtype = ord(data[3]) # indicate destination address type
addr_to_send = data[3]
if addrtype == 1: # IPv4
addr_ip = self.rfile.read(4) # 4 bytes IPv4 address (big endian)
addr = socket.inet_ntoa(addr_ip)
addr_to_send += addr_ip
elif addrtype == 3: # FQDN (Fully Qualified Domain Name)
addr_len = self.rfile.read(1) # Domain name's Length
addr = self.rfile.read(ord(addr_len)) # Followed by domain name(e.g. www.google.com)
addr_to_send += addr_len + addr
else:
logging.warn('addr_type not support')
# not support
return
addr_port = self.rfile.read(2)
addr_to_send += addr_port # addr_to_send = ATYP + [Length] + dst addr/domain name + port
port = struct.unpack('>H', addr_port) # prase the big endian port number. Note: The result is a tuple even if it contains exactly one item.
try:
reply = "\x05\x00\x00\x01" # VER REP RSV ATYP
reply += socket.inet_aton('0.0.0.0') + struct.pack(">H", 2222) # listening on 2222 on all addresses of the machine, including the loopback(127.0.0.1)
self.wfile.write(reply) # response packet
# reply immediately
if '-6' in sys.argv[1:]: # IPv6 support
remote = socket.socket(socket.AF_INET6, socket.SOCK_STREAM)
else:
remote = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
remote.setsockopt(socket.IPPROTO_TCP, socket.TCP_NODELAY, 1) # turn off Nagling
remote.connect((SERVER, REMOTE_PORT))
self.send_encrypt(remote, addr_to_send) # encrypted
logging.info('connecting %s:%d' % (addr, port[0]))
except socket.error, e:
logging.warn(e)
return
self.handle_tcp(sock, remote)
except socket.error, e:
logging.warn(e)
其中和 socks5 交互的部分 handle 在前面 socks5 教程已经讲过，唯一的区别是 send_encrypt函数，每次 send 的时候都会 encrypt 一次，拿到数据后再 decrypt 一次。
ss_server 的代码也和 local 差不多，少了和 socks5 打交道
def handle(self):
try:
sock = self.connection
addrtype = ord(self.decrypt(sock.recv(1))) # receive addr type
if addrtype == 1:
addr = socket.inet_ntoa(self.decrypt(self.rfile.read(4))) # get dst addr
elif addrtype == 3:
addr = self.decrypt(
self.rfile.read(ord(self.decrypt(sock.recv(1))))) # read 1 byte of len, then get 'len' bytes name
else:
# not support
logging.warn('addr_type not support')
return
port = struct.unpack('>H', self.decrypt(self.rfile.read(2))) # get dst port into small endian
try:
logging.info('connecting %s:%d' % (addr, port[0]))
remote = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
remote.setsockopt(socket.IPPROTO_TCP, socket.TCP_NODELAY, 1)
remote.connect((addr, port[0])) # connect to dst
except socket.error, e:
# Connection refused
logging.warn(e)
return
self.handle_tcp(sock, remote)
except socket.error, e:
logging.warn(e)
本质上 ss 很简单，就是做了流量的转发，只不过为了避免流量被检测，加密并且还有混淆的功能。
